Introduction

Pressure gauges are fundamental instruments in industrial processes, providing a visual indication of force exerted by fluids (liquids or gases) per unit area. Their accurate reading is critical for process control, safety, and equipment longevity. This guide provides an in-depth analysis of pressure gauge operation, reading techniques, material science, potential failure modes, and relevant industry standards. Within the broader measurement and instrumentation landscape, pressure gauges represent a direct, relatively simple, and widely applicable method for monitoring system conditions, often serving as a primary indicator in conjunction with more sophisticated electronic sensors. Common applications span oil and gas, chemical processing, power generation, and HVAC systems. A core industry pain point is operator error in reading gauges, coupled with a lack of understanding of the gauge's limitations and potential sources of error. Furthermore, selecting the appropriate gauge for the specific application, considering factors like media compatibility and pressure range, is often overlooked, leading to premature failure or inaccurate readings.

Material Science & Manufacturing

The construction of a typical Bourdon tube pressure gauge, the most common type, relies heavily on material properties. The Bourdon tube itself is typically manufactured from alloys like beryllium copper, phosphor bronze, or stainless steel (304 or 316). Beryllium copper offers high elasticity and corrosion resistance, vital for accuracy and longevity. Phosphor bronze is cost-effective but may be less resistant to certain corrosive media. Stainless steel is chosen for applications involving aggressive chemicals and high temperatures. The manufacturing process begins with forming a flat metal strip into a curved, oval cross-section. This is typically achieved through bending and forming operations, meticulously controlled to ensure uniform wall thickness and consistent curvature. Heat treatment is critical to relieve internal stresses introduced during forming and to achieve the desired spring characteristics. The gauge case is often made of steel or aluminum, with a protective coating applied to resist corrosion. The dial face is typically constructed from aluminum with printed markings. Key manufacturing parameter control focuses on wall thickness consistency of the Bourdon tube (typically monitored via non-destructive testing), weld integrity (if applicable), and calibration accuracy. Material compatibility with the process fluid is paramount; for example, using a carbon steel Bourdon tube with corrosive acids will lead to rapid degradation and failure. The link mechanism connecting the Bourdon tube to the pointer is often manufactured from brass or stainless steel, requiring precise machining for low-friction operation.

Performance & Engineering

The performance of a pressure gauge is governed by fundamental engineering principles. The Bourdon tube operates based on the principle of converting pressure into mechanical displacement. As pressure increases, the tube tends to straighten, and this displacement is amplified through a linkage mechanism to move the pointer across the dial. Force analysis reveals that the deflection of the Bourdon tube is directly proportional to the applied pressure (within its elastic limit). Environmental resistance is a crucial performance characteristic. Gauges exposed to vibration must incorporate features like liquid filling (glycerin or silicone oil) to dampen pointer oscillation and improve readability. Temperature fluctuations can also affect accuracy; gauges are often calibrated at a specific temperature, and deviations from this temperature can introduce errors. Compliance requirements dictate that pressure gauges used in critical applications must meet specific standards for accuracy, repeatability, and safety. For example, gauges used in hazardous areas must be intrinsically safe or explosion-proof, certified according to ATEX or IECEx standards. The functional implementation necessitates precise calibration, typically achieved using a deadweight tester. Calibration ensures that the gauge reading accurately reflects the applied pressure across its entire range. The gauge's resolution, determined by the scale divisions, dictates the minimum pressure change that can be reliably detected.

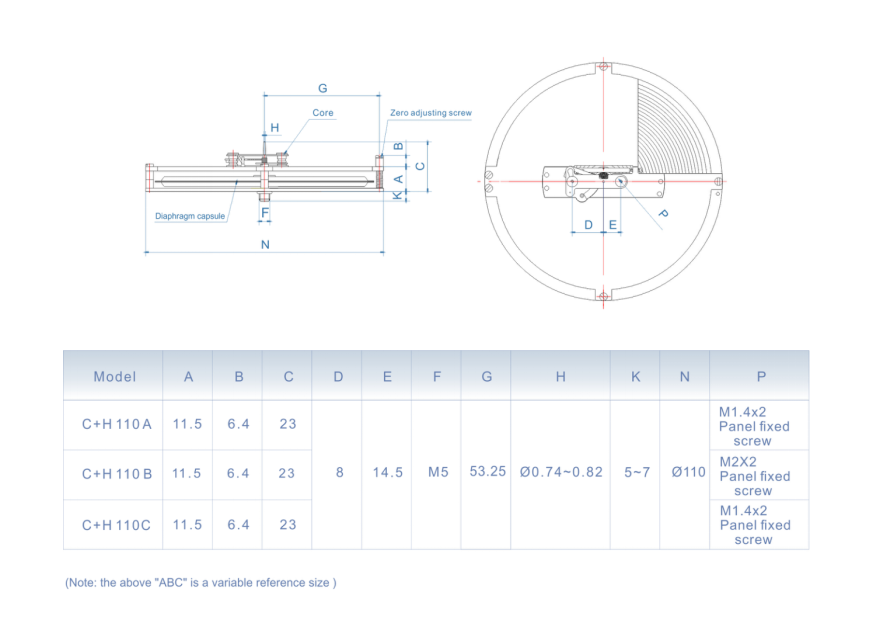

Technical Specifications

Parameter	Units	Typical Range	Accuracy (Full Scale)
Pressure Range	psi, kPa, bar	0-30 to 0-10,000	±1.6%
Process Connection	NPT, BSPT, BSPP	1/8", 1/4", 1/2"	-
Case Material	-	Steel, Aluminum	-
Wetted Parts Material	-	Stainless Steel, Beryllium Copper	-
Temperature Range (Process)	°F, °C	-20 to 200	-
Temperature Range (Ambient)	°F, °C	-40 to 60	-

Failure Mode & Maintenance

Pressure gauge failure can manifest in several ways. Fatigue cracking of the Bourdon tube is a common failure mode, particularly in applications involving cyclical pressure fluctuations. Delamination of the Bourdon tube can occur due to corrosion or manufacturing defects. Degradation of the wetted parts due to chemical attack is another frequent cause of failure. Oxidation of internal components can lead to sticking and inaccurate readings. Pointer sticking is often a symptom of lubrication breakdown or corrosion within the linkage mechanism. Zero drift, where the gauge consistently reads non-zero pressure even when no pressure is applied, indicates a calibration issue or internal damage. Maintenance involves regular visual inspection for leaks, corrosion, or physical damage. Periodic calibration (typically annually) is essential to ensure accuracy. Liquid-filled gauges should be inspected for liquid level and clarity; if the liquid is cloudy or contains sediment, it should be replaced. The process connection should be checked for tightness and corrosion. Avoid subjecting gauges to excessive vibration or shock. When replacing a gauge, ensure that the new gauge has the same pressure range, process connection, and wetted parts material as the original.

Industry FAQ

Q: What is the impact of process fluid temperature on gauge accuracy?

A: Process fluid temperature can significantly impact gauge accuracy. Most gauges are calibrated at a specific temperature (typically 20°C or 68°F). Temperature fluctuations can cause the Bourdon tube to expand or contract, altering its spring characteristics and leading to measurement errors. For applications with wide temperature variations, consider using a gauge with temperature compensation features or selecting a gauge calibrated for the specific operating temperature range.

Q: How often should pressure gauges be calibrated?

A: The recommended calibration frequency depends on the application's criticality and the operating environment. However, a general guideline is to calibrate pressure gauges annually. In critical applications (e.g., safety systems), more frequent calibration (e.g., quarterly or even monthly) may be necessary. Calibration should also be performed after any significant shock or vibration event.

Q: What is the difference between gauge pressure and absolute pressure?

A: Gauge pressure is measured relative to atmospheric pressure, while absolute pressure is measured relative to a perfect vacuum. Most pressure gauges measure gauge pressure. To convert gauge pressure to absolute pressure, add the current atmospheric pressure to the gauge reading. This distinction is crucial in applications where absolute pressure is required, such as vacuum systems or altitude measurement.

Q: What are the advantages of using a liquid-filled pressure gauge?

A: Liquid-filled gauges offer several advantages. The liquid (typically glycerin or silicone oil) dampens pointer oscillation caused by vibration or pulsations in the process fluid, improving readability and extending gauge life. The liquid also lubricates internal moving parts, reducing wear and tear. Furthermore, liquid-filled gauges provide corrosion protection for internal components.

Q: What should I do if I suspect a pressure gauge is malfunctioning?

A: If you suspect a malfunction, immediately remove the gauge from service. Do not attempt to repair the gauge yourself. Contact a qualified calibration technician to inspect and calibrate the gauge. If the gauge is found to be faulty, replace it with a new gauge that meets the same specifications.

Conclusion

Accurate pressure gauge reading is fundamental to safe and efficient operation across a vast spectrum of industrial applications. Understanding the principles of operation, material science, and potential failure modes is crucial for selecting the appropriate gauge, ensuring proper installation, and performing regular maintenance. Neglecting these aspects can lead to inaccurate readings, process upsets, equipment damage, and potentially hazardous situations. Careful attention to calibration, environmental factors, and fluid compatibility is paramount.

The continued evolution of pressure measurement technology sees increasing integration with digital sensing and wireless communication. While traditional mechanical gauges remain prevalent due to their simplicity and reliability, the trend towards smart gauges offering remote monitoring and data logging capabilities will undoubtedly shape the future of pressure measurement in industry. Prioritizing proper training for operators and maintenance personnel regarding gauge reading and maintenance procedures will remain a critical factor in maximizing system performance and minimizing risk.
