Introduction

A pressure gauge is a crucial instrument used to measure and display the pressure of a fluid – liquid or gas – within a system. Its technical position within the industrial chain is foundational, impacting process control, safety, and efficiency across diverse sectors including oil & gas, chemical processing, power generation, aerospace, and manufacturing. Pressure gauges are not merely indicators; they are critical components in feedback loops controlling pumps, compressors, valves, and entire processes. Core performance characteristics center around accuracy, repeatability, hysteresis, and resilience to the process fluid and environment. The increasing demand for real-time data and remote monitoring is driving the integration of pressure gauges with digital communication protocols, fundamentally altering their role from simple display devices to intelligent sensors within Industry 4.0 frameworks. A significant pain point for industry is ensuring gauge accuracy over extended periods and in harsh operational conditions, necessitating robust calibration and maintenance programs. Furthermore, selecting the correct gauge material compatibility with the measured fluid is paramount to prevent premature failure and ensure process integrity.

Material Science & Manufacturing

The construction of pressure gauges relies on a variety of materials, each selected for specific properties. Bourdon tubes, the most common sensing element, are frequently manufactured from beryllium copper, phosphor bronze, or stainless steel (304, 316, 316L). Beryllium copper offers excellent elasticity and corrosion resistance, vital for accurate measurements under fluctuating pressures. Phosphor bronze provides good corrosion resistance and fatigue strength at a lower cost. Stainless steel is selected for applications involving corrosive fluids and demanding temperature ranges. Gauge cases are typically made from steel, aluminum, or reinforced polymers. Dial faces utilize materials like aluminum or polycarbonate for clarity and durability. Manufacturing processes vary depending on the gauge type. Bourdon tube production involves cold forming of metal tubing followed by heat treatment to achieve the desired elastic properties. Welding is critical, and must be performed with precise control to maintain structural integrity and prevent leaks. Diaphragm gauges require the precise fabrication of diaphragms from materials like stainless steel or Hastelloy, often involving deep drawing and subsequent welding. Capsule gauges rely on the hermetic sealing of two diaphragms. Parameter control during manufacturing is vital. Heat treatment temperatures and durations directly affect the Bourdon tube’s elasticity and accuracy. Weld quality is assessed through non-destructive testing (NDT) methods such as liquid penetrant inspection and radiography. Calibration is a final, crucial step, performed against certified pressure standards to ensure accuracy and traceability.

Performance & Engineering

The performance of a pressure gauge is governed by fundamental engineering principles. Force analysis centers on understanding the relationship between applied pressure and the resulting deformation of the sensing element (Bourdon tube, diaphragm, or capsule). The Bourdon tube, for example, undergoes a predictable deflection proportional to the internal pressure. This deflection is mechanically linked to the pointer via a gear and segment mechanism. Environmental resistance is crucial. Temperature fluctuations can affect the material properties of the sensing element, leading to drift in accuracy. Gauge design incorporates temperature compensation mechanisms to minimize this effect. Vibration can also impact accuracy and induce premature fatigue failure. Dampening fluids (e.g., glycerin or silicone oil) are often used to reduce the effects of vibration and pulsation. Compliance requirements are dictated by industry-specific standards (see section 7). For example, pressure gauges used in hazardous locations must meet ATEX or IECEx certifications to ensure explosion-proof operation. Functional implementation involves careful consideration of the pressure range, media compatibility, and process conditions. Selecting a gauge with an appropriate pressure range is critical to avoid over-ranging (which can damage the gauge) or under-ranging (which reduces accuracy). Compatibility with the measured fluid prevents corrosion and material degradation. Furthermore, the gauge’s mounting orientation affects accuracy, particularly for liquid-filled gauges.

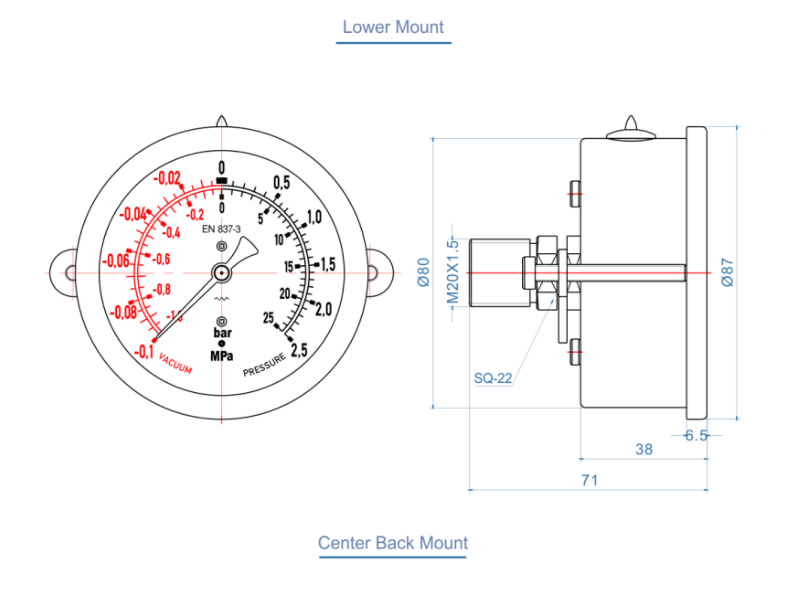

Technical Specifications

Parameter	Bourdon Tube Gauge	Diaphragm Gauge	Digital Pressure Gauge	Capsule Gauge
Pressure Range (Typical)	0-10,000 psi	0-100 psi	0-10,000 psi	0-1000 psi
Accuracy (Typical)	±1% of span	±0.25% of span	±0.1% of span	±0.5% of span
Media Compatibility	Various (SS, Cu Alloy)	Limited (SS, Hastelloy)	Wide (Sensor dependent)	Limited (SS)
Temperature Range	-40°F to 250°F	-40°F to 200°F	-4°F to 176°F	-40°F to 200°F
Connection Type	NPT, BSPT	NPT, BSPT	NPT, BSPT, Digital	NPT, BSPT
Output Signal	Analog (Pointer)	Analog (Pointer)	4-20mA, HART, Modbus	Analog (Pointer)

Failure Mode & Maintenance

Pressure gauge failure modes are diverse and often linked to specific operating conditions. Fatigue cracking of the Bourdon tube is a common failure, resulting from cyclical pressure fluctuations and vibration. Corrosion, particularly in aggressive fluid environments, can lead to material degradation and leaks. Hysteresis, a gradual loss of accuracy over time, can occur due to plastic deformation of the sensing element. Delamination of diaphragms in diaphragm gauges is another prevalent failure mode, often caused by excessive pressure or temperature cycling. Oxidation of internal components can also contribute to malfunction. For preventative maintenance, regular visual inspection for leaks, corrosion, and physical damage is crucial. Periodic calibration against certified pressure standards (typically every 6-12 months) is essential to ensure accuracy. Lubrication of moving parts (gears and linkages) reduces friction and wear. For gauges exposed to corrosive environments, protective coatings or more corrosion-resistant materials should be considered. If a gauge consistently exhibits drift or inaccurate readings, it should be removed from service and either repaired or replaced. Proper storage of spare gauges is also important, protecting them from moisture and contaminants. A robust record-keeping system tracking calibration dates and maintenance history is paramount for effective gauge management.

Industry FAQ

Q: What is the significance of ‘linearity’ in a pressure gauge specification?

A: Linearity refers to the maximum deviation of the gauge’s output from a straight-line relationship between applied pressure and indicated pressure. A higher linearity specification indicates greater accuracy across the entire pressure range. Poor linearity can introduce significant errors in process control and monitoring, particularly in applications requiring precise pressure measurements.

Q: How do I determine the correct pressure range for my application?

A: The pressure range should be selected to encompass the normal operating pressure plus anticipated pressure spikes or surges. Avoid selecting a gauge with a range that is significantly higher than the expected operating pressure, as this reduces accuracy. Conversely, exceeding the gauge’s maximum pressure can cause permanent damage.

Q: What are the advantages of a digital pressure gauge over a traditional analog gauge?

A: Digital pressure gauges offer superior accuracy, resolution, and features such as data logging, remote monitoring, and digital communication protocols (e.g., 4-20mA, HART, Modbus). They are less susceptible to parallax errors and can provide more comprehensive diagnostic information.

Q: How does fluid fill affect pressure gauge performance and lifespan?

A: Fluid fill (typically glycerin or silicone oil) dampens vibrations and pulsations, extending gauge life and improving readability. It also provides lubrication for internal components and protects against corrosion. However, the fluid’s viscosity and temperature stability must be considered for optimal performance.

Q: What is ‘hysteresis’ and how does it impact pressure measurement?

A: Hysteresis is the difference in the gauge’s reading for the same pressure when approached from increasing or decreasing pressure values. It represents energy loss within the sensing element. High hysteresis indicates a loss of accuracy and repeatability, especially in dynamic applications where the pressure is constantly changing.

Conclusion

Pressure gauges are fundamental instruments underpinning process control and safety across a vast spectrum of industries. Their effective operation hinges on a complex interplay of material science, precision manufacturing, and robust engineering design. Selecting the appropriate gauge requires careful consideration of the application’s specific requirements, including pressure range, media compatibility, environmental conditions, and accuracy needs. Understanding failure modes and implementing a proactive maintenance program are vital for ensuring long-term reliability and process integrity.

The future of pressure gauge technology is likely to be shaped by advancements in sensor technology, wireless communication, and data analytics. The integration of pressure gauges with Industrial IoT (IIoT) platforms will enable real-time monitoring, predictive maintenance, and optimized process control. The continuous drive for enhanced accuracy, reliability, and data accessibility will solidify the pressure gauge’s position as a critical component of modern industrial systems.
