Introduction

A tire pressure gauge is a critical instrument in automotive maintenance, used to measure the air pressure within pneumatic tires. It's a fundamental component in ensuring vehicle safety, optimizing fuel efficiency, and prolonging tire lifespan. The gauge doesn’t measure pressure directly, but rather the force exerted by the compressed air within the tire against a calibrated mechanism. This mechanism, historically mechanical and increasingly digital, translates that force into a readable pressure value, typically in pounds per square inch (PSI), kilopascals (kPa), or bar. Tire pressure gauges exist in various designs – stick, dial, and digital – each employing slightly different principles to achieve the same fundamental measurement. Proper tire inflation, facilitated by accurate gauges, directly impacts handling, braking performance, and overall vehicle stability. Neglecting proper inflation can lead to tire failure, compromised safety, and increased operating costs. This guide will provide an in-depth exploration of the science, manufacturing, and performance aspects of tire pressure gauges.

Material Science & Manufacturing

The construction of a tire pressure gauge involves several key materials, each selected for specific properties. Mechanical gauges frequently utilize a Bourdon tube crafted from spring steel (typically alloys like beryllium copper for enhanced elasticity and corrosion resistance). This tube’s inherent elasticity is critical. The housing is often made from impact-resistant polymers like ABS plastic or metal alloys like aluminum, providing durability and protection for the internal components. Dial face materials include polycarbonate for clarity and resistance to UV degradation. Digital gauges rely on a pressure sensor, commonly a piezoresistive silicon sensor. Silicon’s sensitivity to stress makes it ideal for detecting minute pressure changes. The sensor is encapsulated in a protective material, often ceramic, for stability. Circuit boards are typically constructed from FR-4 epoxy laminate, providing electrical insulation and mechanical support for electronic components. Manufacturing processes vary depending on the gauge type. Mechanical gauges involve forming the Bourdon tube through a specialized bending process, followed by heat treatment to achieve the desired spring characteristics. The dial face is printed with high precision using silkscreening techniques. Digital gauges involve semiconductor fabrication for the pressure sensor, followed by surface mount technology (SMT) for assembling the electronic circuit. Calibration is a critical step for both types, performed using NIST-traceable pressure standards. Parameter control during Bourdon tube bending – specifically, maintaining consistent wall thickness and radius – is paramount. For digital gauges, precise control of sensor doping and encapsulation is essential for accuracy and long-term stability.

Performance & Engineering

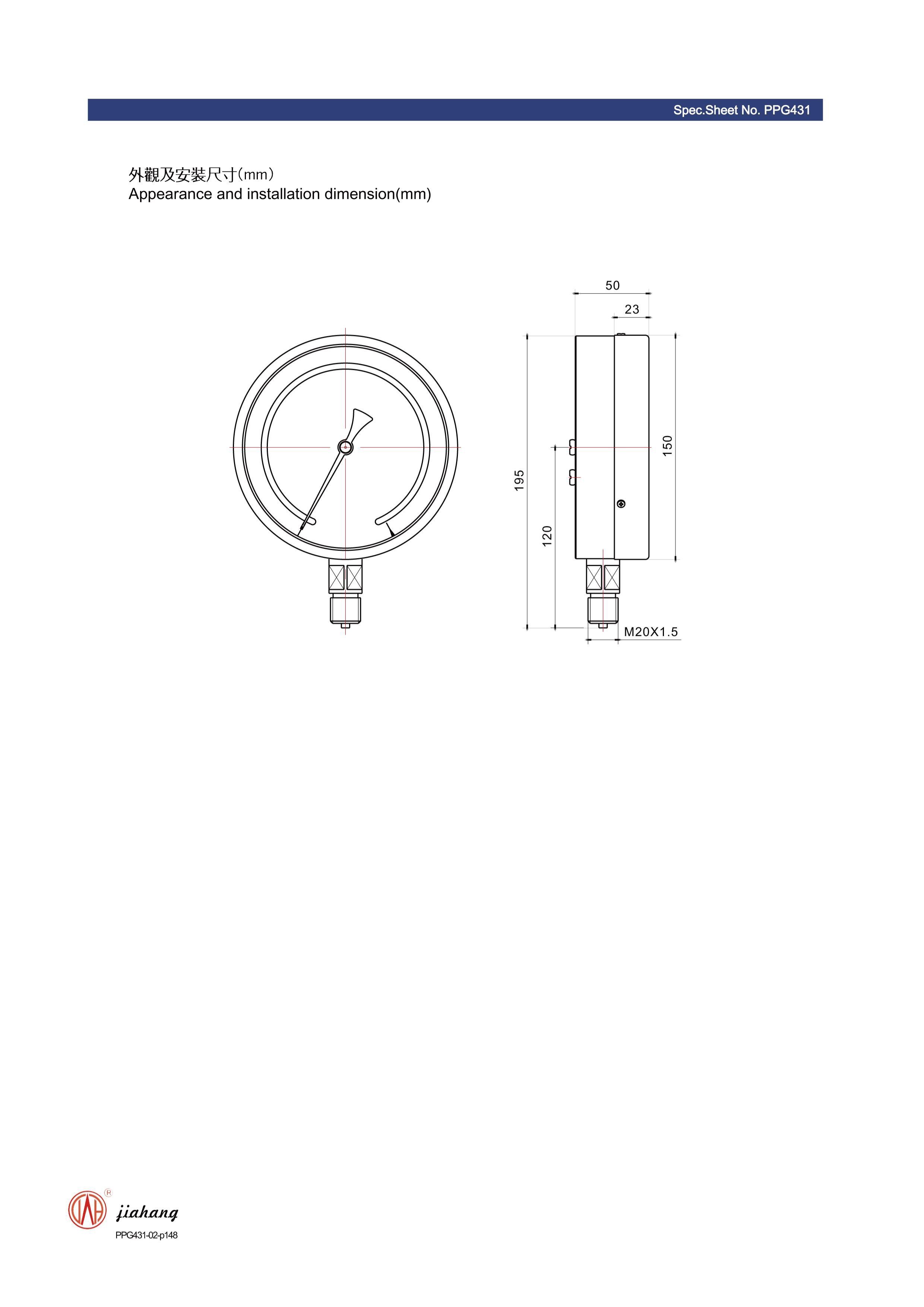

The core engineering principle behind a tire pressure gauge revolves around Pascal’s Law, which states that pressure applied to a confined fluid is transmitted equally in all directions. In a mechanical gauge, the air pressure from the tire enters the Bourdon tube. This pressure causes the tube to straighten, and the degree of straightening is proportional to the tire pressure. This movement is mechanically linked to a gear system that rotates a pointer on the dial face, indicating the pressure reading. The accuracy of the gauge is dependent on the precise calibration of the tube's spring constant and the gear mechanism. In a digital gauge, the air pressure deflects a silicon diaphragm within the piezoresistive sensor. This deflection changes the electrical resistance of the silicon, which is measured by the electronic circuitry. This resistance change is then converted into a digital pressure reading and displayed on the LCD screen. Environmental factors significantly impact performance. Temperature variations can affect the elasticity of the Bourdon tube and the sensitivity of the silicon sensor. Humidity can cause corrosion of metallic components and affect the performance of electronic circuits. Vibration and shock can also introduce errors, particularly in mechanical gauges. Compliance requirements, such as those mandated by the National Highway Traffic Safety Administration (NHTSA) and industry standards like SAE J1926, necessitate rigorous testing for accuracy, repeatability, and durability. Force analysis is critical in the Bourdon tube design, ensuring it can withstand the maximum anticipated tire pressure without permanent deformation. The choice of materials also directly influences performance; for example, the coefficient of thermal expansion of the Bourdon tube material influences temperature compensation.

Technical Specifications

Parameter	Stick Gauge	Dial Gauge	Digital Gauge
Pressure Range (PSI)	0-60 PSI	0-100 PSI	0-150 PSI
Accuracy (PSI)	±2 PSI	±1.5 PSI	±0.5 PSI
Resolution (PSI)	1 PSI	1 PSI	0.1 PSI
Operating Temperature (°F)	-20 to 150 °F	-40 to 176 °F	-4 to 140 °F
Housing Material	ABS Plastic	Aluminum/Plastic	ABS Plastic/Metal
Internal Mechanism	Bourdon Tube	Bourdon Tube	Piezoresistive Sensor

Failure Mode & Maintenance

Tire pressure gauges, despite their relative simplicity, are susceptible to various failure modes. Mechanical gauges can experience Bourdon tube fatigue cracking, particularly after repeated flexing, leading to inaccurate readings or complete failure. Corrosion of internal components, especially in humid environments, can also cause sticking and inaccurate measurements. Dial face damage, due to impact or UV exposure, can make readings difficult. Digital gauges are prone to sensor drift over time, resulting in calibration errors. Battery failure is a common issue, preventing operation. Circuit board damage from moisture ingress or electrostatic discharge (ESD) can also render the gauge unusable. A common failure mode across all types is seal degradation at the air inlet, leading to pressure leaks and inaccurate readings. Maintenance primarily focuses on preventative measures. For mechanical gauges, periodic visual inspection for corrosion or damage is crucial. Avoid dropping the gauge, as this can damage the internal mechanism. For digital gauges, replace batteries promptly and protect the gauge from moisture and extreme temperatures. Regular calibration, ideally annually or after significant impact, is vital for maintaining accuracy. Calibration should be performed against a NIST-traceable pressure standard. Cleaning the air inlet with compressed air can prevent blockage and ensure accurate readings. When a gauge consistently provides inaccurate readings, even after calibration, it should be replaced rather than repaired, as internal component failure is likely.

Industry FAQ

Q: What is the difference between a stick gauge and a dial gauge in terms of accuracy and long-term reliability?

A: Generally, dial gauges offer superior accuracy (typically ±1.5 PSI compared to ±2 PSI for stick gauges) and better long-term reliability. The more robust construction and mechanical linkage of a dial gauge contribute to its durability. Stick gauges are more susceptible to bending and damage, impacting their accuracy over time. The Bourdon tube in a dial gauge is generally more protected from environmental factors than the simpler mechanism in a stick gauge.

Q: How does temperature affect the readings of a tire pressure gauge?

A: Temperature significantly impacts tire pressure and gauge accuracy. Lower temperatures cause a decrease in tire pressure, while higher temperatures cause an increase. The Bourdon tube material in mechanical gauges expands and contracts with temperature changes, affecting its spring constant. Digital gauges with temperature compensation circuitry are less susceptible to this effect, but even they have limitations. It's best to check tire pressure when the tires are cold, meaning they haven't been driven on for at least three hours.

Q: What is the recommended calibration frequency for a tire pressure gauge?

A: Annual calibration is generally recommended for professional use or for those requiring high accuracy. For personal use, calibration every two years is acceptable, but more frequent calibration is advisable if the gauge is subjected to rough handling or extreme temperatures. Calibration should always be performed against a NIST-traceable pressure standard.

Q: Can digital tire pressure gauges be affected by electromagnetic interference (EMI)?

A: Yes, digital tire pressure gauges can be susceptible to EMI, particularly from nearby electronic devices. EMI can disrupt the sensor readings and lead to inaccurate measurements. Shielding within the gauge housing helps mitigate EMI, but it's still advisable to avoid operating the gauge near strong electromagnetic fields.

Q: What is the significance of a tire pressure gauge being “NIST-traceable”?

A: “NIST-traceable” indicates that the calibration standards used to verify the gauge’s accuracy are traceable to the National Institute of Standards and Technology (NIST). This ensures the gauge meets recognized accuracy standards and provides confidence in the reliability of the measurements. It’s a crucial specification for applications where precise pressure readings are critical.

Conclusion

The tire pressure gauge, a seemingly simple device, embodies a sophisticated interplay of material science, engineering principles, and precision manufacturing. From the elasticity of the Bourdon tube to the sensitivity of piezoresistive sensors, each component is critical in delivering accurate and reliable pressure measurements. Understanding the failure modes and implementing preventative maintenance, such as regular calibration, are essential for ensuring the gauge’s longevity and performance. The selection of the appropriate gauge type – stick, dial, or digital – depends on the specific application requirements, balancing cost, accuracy, and durability.

Looking ahead, advancements in sensor technology and wireless communication will likely lead to the development of “smart” tire pressure gauges that integrate with vehicle monitoring systems, providing real-time pressure data and automated alerts. Improved materials and manufacturing processes will further enhance accuracy and durability. The continued emphasis on safety and fuel efficiency will drive the demand for more precise and reliable tire pressure measurement tools. Ultimately, the tire pressure gauge remains a fundamental component in ensuring safe and efficient vehicle operation.
