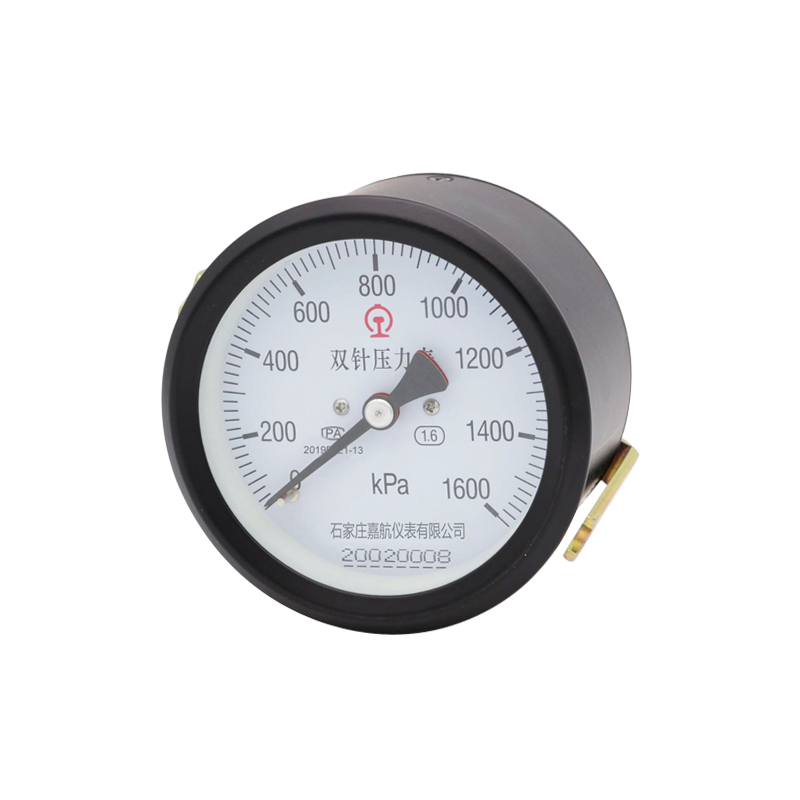

Introduction

A tire pressure gauge is a critical tool for vehicle maintenance, ensuring optimal tire performance, safety, and fuel efficiency. This guide provides an in-depth technical overview of tire pressure gauge operation, encompassing the underlying principles of pressure measurement, common gauge types, and best practices for accurate readings. Within the automotive industry supply chain, tire pressure gauges represent a crucial component in maintaining vehicle readiness, impacting both OEM specifications and aftermarket service requirements. Core performance revolves around the accurate and reliable indication of tire inflation pressure, directly affecting handling, braking distance, and tire lifespan. Understanding the nuances of gauge functionality and potential error sources is paramount for automotive technicians, fleet managers, and discerning vehicle owners.

Material Science & Manufacturing

The majority of tire pressure gauges utilize either a Bourdon tube or a digital pressure sensor as the core measuring element. Bourdon tubes are typically constructed from beryllium copper, steel alloys, or brass, selected for their high elasticity and resistance to permanent deformation. The manufacturing process involves precise forming of the tube into a C-shape, followed by heat treatment to enhance its spring characteristics. The material’s yield strength is critical; exceeding this point leads to inaccurate readings and gauge failure. Digital gauges employ silicon-based piezoresistive pressure sensors. These sensors rely on the change in electrical resistance of silicon due to applied pressure. The silicon is typically deposited onto a substrate using micro-electro-mechanical systems (MEMS) fabrication techniques. Gauge housings are commonly manufactured from reinforced polymers (ABS, polycarbonate) or stainless steel for durability and corrosion resistance. Calibration standards necessitate precise machining of the gauge components and rigorous testing procedures to ensure accuracy traceable to national standards. The sealing materials used in the gauge (O-rings, gaskets) are typically nitrile rubber or Viton, chosen for their compatibility with compressed air and resistance to temperature variations.

Performance & Engineering

The performance of a tire pressure gauge is governed by several engineering principles. Force analysis focuses on the relationship between the applied tire pressure and the resulting deflection of the Bourdon tube or the electrical signal generated by the digital sensor. Accuracy is defined as the deviation between the indicated pressure and the actual pressure. Repeatability measures the consistency of readings under identical conditions. Environmental resistance is crucial; gauges must maintain accuracy across a wide temperature range (-20°C to 60°C) and in varying humidity levels. Compliance requirements include adherence to SAE J1926 (for automotive tire pressure gauges) and ISO 8106 (for pneumatic pressure gauges). The gauge’s internal mechanism must be designed to minimize hysteresis – the difference in readings when pressure is increasing versus decreasing. Stem sealing is a critical factor in preventing air leakage during measurement. The gauge tip must create a complete seal against the tire valve stem to obtain an accurate reading. Furthermore, the gauge's construction must withstand the repeated insertion and removal from valve stems without causing damage to the stem or the gauge itself.

Technical Specifications

Gauge Type	Pressure Range (PSI)	Accuracy (PSI)	Resolution (PSI)
Pencil-Type (Bourdon Tube)	0-60 PSI	±2 PSI	1 PSI
Digital (Piezoresistive)	0-100 PSI	±0.5 PSI	0.1 PSI
Dial-Type (Bourdon Tube)	0-80 PSI	±2.5 PSI	1 PSI
High-Pressure Digital	0-150 PSI	±1 PSI	0.1 PSI
Truck/RV Digital	0-120 PSI	±1.5 PSI	0.1 PSI
Low-Pressure Digital	0-40 PSI	±0.25 PSI	0.1 PSI

Failure Mode & Maintenance

Common failure modes for tire pressure gauges include Bourdon tube rupture (in mechanical gauges), sensor drift (in digital gauges), air leakage around the valve stem connection, and display malfunction. Fatigue cracking of the Bourdon tube can occur due to repeated flexing, particularly with gauges that are frequently over-pressurized. Digital gauges can experience sensor drift over time, requiring recalibration. Air leakage is often caused by worn or damaged O-rings or a damaged gauge tip. Oxidation of the internal components can also lead to failure. Preventive maintenance includes regular visual inspection for damage, proper storage to avoid exposure to extreme temperatures and humidity, and periodic recalibration (especially for digital gauges). Avoid dropping the gauge, as this can damage the internal mechanism. If the gauge consistently provides inaccurate readings, it should be replaced. Do not attempt to repair a Bourdon tube gauge, as this can be dangerous. Cleaning the gauge tip with a clean cloth can help maintain a good seal against the valve stem.

Industry FAQ

Q: What is the difference between PSI, kPa, and BAR when reading a tire pressure gauge?

A: PSI (pounds per square inch) is the most common unit in the US. kPa (kilopascals) and BAR are metric units. 1 BAR is approximately equal to 14.5 PSI, and 1 kPa is approximately 0.145 PSI. Many digital gauges allow you to switch between units, but understanding the conversion is crucial for accurate inflation based on vehicle specifications.

Q: How often should I calibrate my tire pressure gauge?

A: Digital gauges should be calibrated annually, or more frequently if used extensively. Mechanical gauges generally hold calibration longer but should be visually inspected regularly. Significant drops or impacts can require immediate recalibration. Calibration services are typically available from instrument repair specialists.

Q: What causes a tire pressure gauge to give inconsistent readings?

A: Inconsistent readings can be caused by air leakage around the valve stem, a damaged gauge tip, a faulty Bourdon tube (mechanical gauges), or sensor drift (digital gauges). Ensure a tight seal against the valve stem and check for any visible damage to the gauge.

Q: Can I use a tire pressure gauge for other pneumatic systems?

A: While technically possible, it’s not recommended. Tire pressure gauges are calibrated for a specific pressure range. Using them on systems with significantly higher or lower pressures can damage the gauge and compromise its accuracy. Dedicated gauges are available for various pneumatic applications.

Q: What is the proper technique for using a tire pressure gauge?

A: Press the gauge firmly onto the valve stem to ensure a tight seal. Hold the gauge perpendicular to the valve stem. Read the pressure immediately after the reading stabilizes. Avoid applying excessive force, which could damage the valve stem or the gauge.

Conclusion

Accurate tire pressure measurement is fundamentally linked to vehicle safety, performance, and longevity. This guide has detailed the material science, engineering principles, and manufacturing processes that govern tire pressure gauge functionality. Selecting a gauge with appropriate specifications for the intended application, understanding potential failure modes, and adhering to proper maintenance procedures are critical for ensuring reliable and consistent readings.

The ongoing development of sensor technology and micro-fabrication techniques is driving improvements in gauge accuracy, durability, and feature sets. Future trends may include integrated tire pressure monitoring systems (TPMS) with enhanced diagnostic capabilities and wireless connectivity for real-time data transmission. Maintaining a robust understanding of these advancements will be essential for professionals in the automotive and related industries.
