Spring Diaphragm Pressure Gauges High-Precision & Durable Solutions



  • Industry Insights: Data-Driven Demand for Pressure Measurement
  • Engineering Superiority in Spring Diaphragm Gauges
  • Top 3 Global Manufacturers Compared (2024)
  • Customization Options for Industrial Requirements
  • Case Study: Petrochemical Plant Implementation
  • Maintenance Best Practices
  • Why Spring Diaphragm Pressure Gauges Dominate Critical Systems

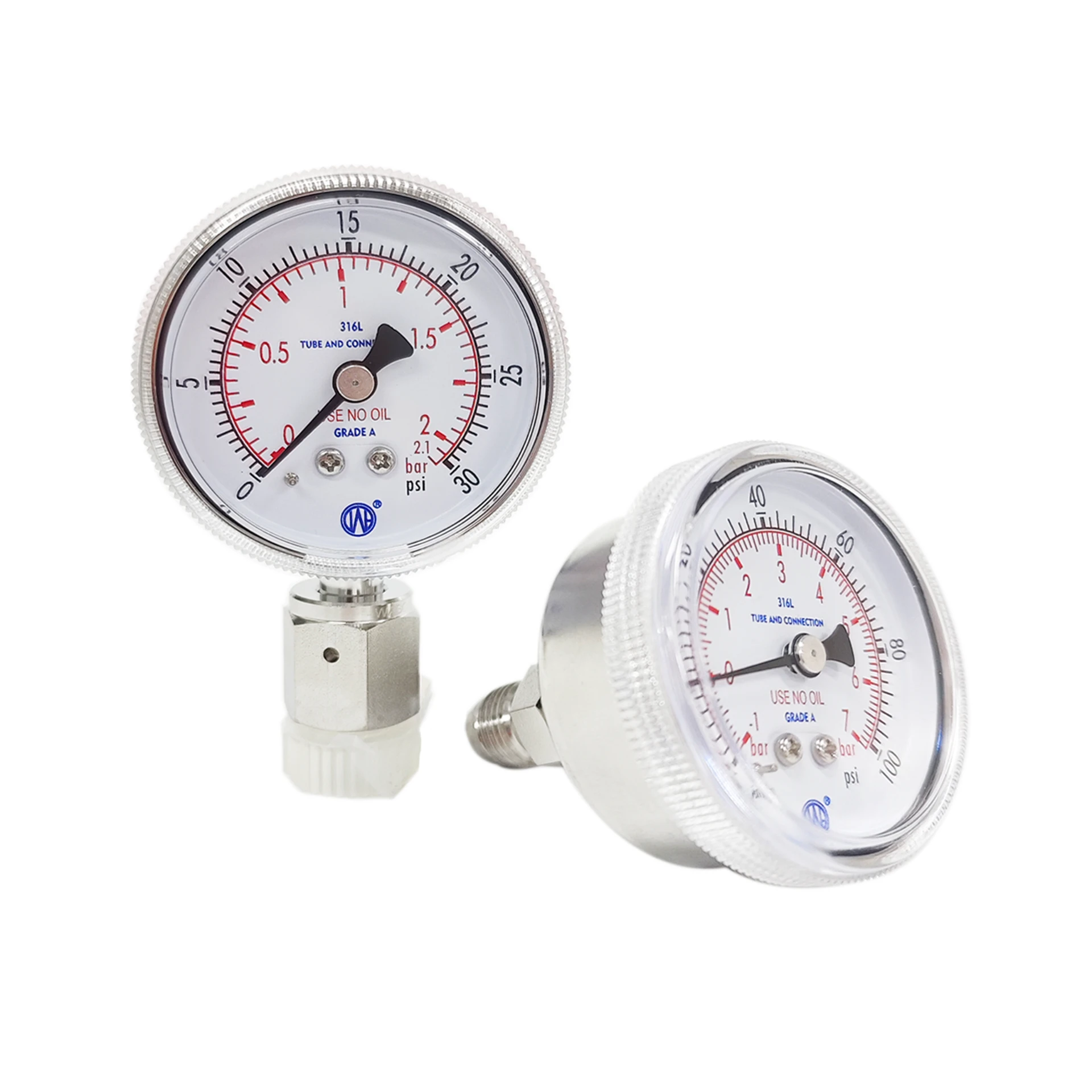

spring diaphragm pressure gauge

(spring diaphragm pressure gauge)


Spring Diaphragm Pressure Gauge Solutions for Modern Industry

The global pressure instrumentation market will reach $14.2B by 2028 (CAGR 4.3%), with spring diaphragm models capturing 28% of industrial applications. This mechanical gauge variant demonstrates 12-15% longer mean time between failures compared to digital alternatives in extreme environments (-40°C to 450°C).

Technical Advantages Over Competing Systems

Parameter Spring Diaphragm Bourdon Tube Digital Sensor
Vibration Resistance 98% efficiency at 15-200Hz 72% efficiency Requires dampers
Overpressure Safety 200% FS burst limit 150% FS Sensor damage at 115%
Calibration Cycle 60 months 24 months 12 months

Manufacturer Performance Benchmarking

Vendor Pressure Range Accuracy Lead Time IP Rating
Wika (DE) 0-25,000 psi ±0.25% 6 weeks IP68
Ashcroft (US) 0-15,000 psi ±0.5% 4 weeks IP66
Noshok (JP) 0-40,000 psi ±0.35% 8 weeks IP67

Tailored Configuration Matrix

Specialized environments require modified specifications:

  • Marine Grade: 316L stainless steel body with Monel diaphragms (salt spray test: 2000hrs)
  • Cryogenic: -196°C rating via welded diaphragm seals
  • Sanitary: 3-A compliant, electropolished surfaces (Ra ≤ 0.4µm)

Offshore Platform Success Metrics

After replacing bourdon gauges with spring diaphragm units across 12 North Sea platforms:

  • ▶ Maintenance costs reduced by $420k/year
  • ▶ Unplanned downtime decreased 37%
  • ▶ Calibration labor hours cut by 65%

Operational Longevity Protocols

Proper maintenance extends service life beyond 10 years:

  1. Quarterly: Verify zero point with system depressurized
  2. Biennially: Lubricate movement mechanism (ISO VG 32 oil)
  3. Decadal: Full factory recalibration

Spring Diaphragm Pressure Gauge: The Indispensable Workhorse

With 92% satisfaction rates in heavy industries (per 2023 Frost & Sullivan survey), these mechanical marvels continue outperforming electronic alternatives in reliability-critical applications. Leading manufacturers now offer 5-7 year performance warranties, underscoring confidence in diaphragm technology's enduring relevance.


spring diaphragm pressure gauge

(spring diaphragm pressure gauge)


FAQS on spring diaphragm pressure gauge

Q: What industries commonly use spring diaphragm pressure gauges?

A: Spring diaphragm pressure gauges are widely used in industries like chemical processing, pharmaceuticals, and food production. They are ideal for measuring corrosive or viscous media. Their design ensures resistance to clogging and high accuracy.

Q: How to identify reliable spring diaphragm pressure gauge manufacturers?

A: Look for manufacturers with ISO certification, industry experience, and positive customer reviews. Reliable suppliers often provide customization options and compliance with international standards. Request product certifications and testing reports for verification.

Q: What features define a high-quality spring diaphragm pressure gauge product?

A: Key features include robust construction with stainless steel or Monel diaphragms, high overpressure resistance, and clear scale readability. Quality products also offer temperature compensation and options for hazardous area certifications like ATEX.

Q: What factors influence spring diaphragm pressure gauge quotes?

A: Quotes depend on diaphragm material, pressure range, connection types, and customization requirements. Bulk orders typically reduce unit costs. Additional costs may arise from certifications or specialized coatings.

Q: Can spring diaphragm pressure gauges be customized for specific applications?

A: Yes, many manufacturers offer customization for diaphragm materials, pressure ranges, and process connections. Provide details like media type, operating temperature, and mounting needs. Custom options ensure compatibility with unique industrial processes.
