Introduction

The boiler pressure gauge is a critical safety and monitoring instrument within steam power generation systems, heating plants, and industrial processes utilizing pressurized steam. Its primary function is to indicate the steam or water pressure inside the boiler, enabling operators to maintain safe operating parameters and prevent catastrophic failures. Positioned within the industrial chain, the pressure gauge represents a vital component of the control and instrumentation segment, directly linked to boiler manufacturing, steam distribution networks, and plant safety systems. Core performance characteristics revolve around accuracy, reliability, and responsiveness to pressure fluctuations. Modern gauges frequently incorporate features like dampening mechanisms, blow-out discs for operator protection, and digital communication capabilities for remote monitoring and data logging. The industry's core pain point centers on maintaining gauge calibration, preventing drift due to thermal cycling and vibration, and ensuring material compatibility with the corrosive environments common in boiler systems.

Material Science & Manufacturing

Boiler pressure gauges traditionally employ materials selected for their resilience to high temperatures, pressures, and corrosive fluids. The Bourdon tube, the pressure-sensing element, is typically constructed from alloys such as beryllium copper (for its elasticity and corrosion resistance), spring bronze (a copper alloy offering good strength and flexibility), or stainless steel (particularly 316 or 304 grades for enhanced corrosion resistance in aggressive environments). The gauge case is often made from carbon steel with a protective coating (epoxy or powder coating) to prevent corrosion, or from stainless steel for more demanding applications. The window is commonly constructed from tempered glass or polycarbonate for impact resistance. Manufacturing processes are highly precise. The Bourdon tube is formed through a cold-bending or hot-bending process, carefully calibrated to ensure linearity between applied pressure and mechanical deflection. Welding techniques, often employing TIG welding, are critical for joining the tube to the movement and connection fittings, demanding strict adherence to quality control standards to avoid leaks and stress concentrations. Calibration is performed using precision pressure testing equipment, comparing gauge readings to traceable standards. Key parameter control involves maintaining consistent tube wall thickness, precise bending radii, and accurate heat treatment to optimize material properties.

Performance & Engineering

The performance of a boiler pressure gauge is governed by principles of mechanics, material science, and fluid dynamics. Force analysis focuses on the stresses induced within the Bourdon tube under pressure, necessitating careful design to prevent yielding or rupture. Environmental resistance is paramount; gauges must withstand temperature variations, vibration, and potential exposure to corrosive chemicals present in boiler water or steam. Compliance requirements are stringent, often dictated by ASME Boiler and Pressure Vessel Code Section I, which defines standards for materials, design, fabrication, and inspection. Functional implementation relies on converting the mechanical deformation of the Bourdon tube into a visual indication. A geared movement amplifies the tube's motion, driving a pointer across a calibrated dial. Advanced gauges incorporate digital sensors and microprocessors for enhanced accuracy, data logging, and communication capabilities. Dampening fluids (glycerin or silicone oil) are frequently used to minimize pointer flutter caused by pressure pulsations, improving readability and extending gauge life. Consideration must be given to pressure range selection; gauges should be chosen with a range that corresponds to the expected operating pressure, avoiding over-ranging or operating near the lower limit of the scale.

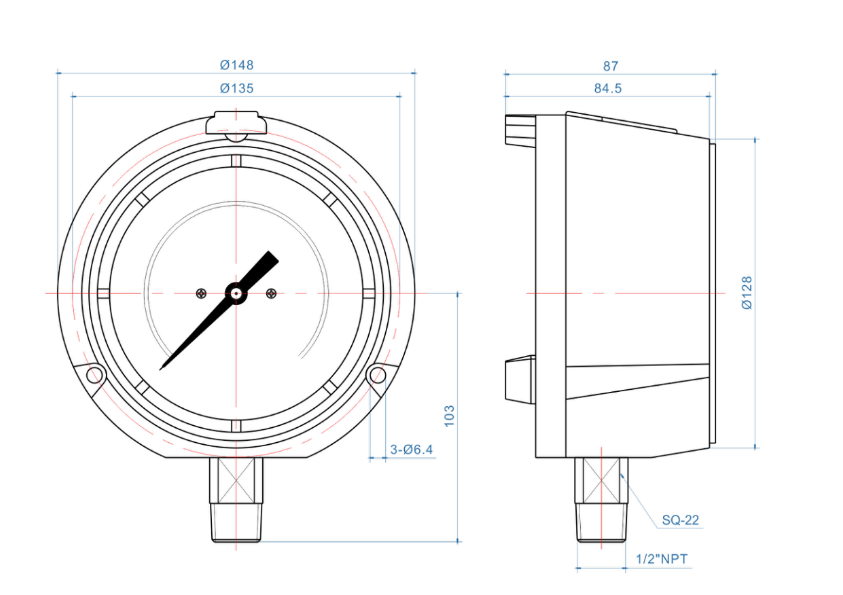

Technical Specifications

Parameter	Units	Typical Range	Accuracy Class (ASME B40.100)
Pressure Range	psi	0-30 to 0-10,000	3A, 2A, 1A, 0.25
Case Material	-	Carbon Steel, Stainless Steel	N/A
Tube Material	-	Beryllium Copper, Spring Bronze, Stainless Steel 304/316	N/A
Connection Size	NPT	1/8", 1/4", 1/2"	N/A
Operating Temperature	°F	-40 to 250	N/A
Window Material	-	Tempered Glass, Polycarbonate	N/A

Failure Mode & Maintenance

Boiler pressure gauges are susceptible to several failure modes. Fatigue cracking of the Bourdon tube can occur due to prolonged exposure to pressure cycling and vibration. Corrosion, particularly pitting corrosion, can weaken the tube material, leading to leaks or rupture. Drift in calibration can result from temperature fluctuations, mechanical shock, or creep in the tube material. Another common issue is blockage of the connection port by scale or debris from the boiler system. Delamination of the dial face or window can occur due to UV exposure or chemical attack. Oxidation of internal components can hinder movement accuracy. Maintenance involves regular visual inspection for physical damage (cracks, leaks, corrosion). Periodic calibration (typically annually, or more frequently in critical applications) is essential to ensure accuracy. Cleaning of the connection port to remove debris is vital. Lubrication of the movement (if applicable, per manufacturer's recommendations) can maintain smooth operation. Replacement of the gauge is necessary if the tube is cracked, severely corroded, or exhibits significant calibration drift that cannot be corrected. Blow-out disc functionality should be tested periodically to verify proper operation in overpressure events.

Industry FAQ

Q: What is the impact of water hammer on pressure gauge life?

A: Water hammer, the sudden pressure surge caused by condensation in steam lines, creates significant mechanical stress on the Bourdon tube and internal movement. Repeated water hammer events can lead to fatigue cracking and premature failure. Implementing steam traps and air vents to mitigate condensation buildup is critical. Gauges with dampened movements are also recommended to reduce the impact of pulsations.

Q: How does temperature affect the accuracy of a pressure gauge?

A: Temperature variations can cause thermal expansion or contraction of the Bourdon tube, altering its elastic properties and influencing accuracy. High temperatures can also accelerate corrosion. Gauges with temperature compensation features are available, but proper installation shielding from direct heat sources is also vital. Calibration should be performed at the operating temperature, if possible.

Q: What material selection considerations are important for corrosive boiler environments?

A: If the boiler water is highly corrosive (due to pH imbalances or dissolved oxygen), stainless steel (316 or higher alloy) is the preferred material for the Bourdon tube and wetted parts. Beryllium copper offers good corrosion resistance but may be unsuitable for certain chemical compositions. Regular water treatment is essential to minimize corrosion potential.

Q: What are the implications of exceeding the maximum pressure rating of a gauge?

A: Exceeding the gauge's maximum pressure rating can cause immediate and catastrophic failure of the Bourdon tube, potentially resulting in injury to personnel. The blow-out disc is designed to rupture and relieve the pressure in such an event, but it is crucial to operate within the specified limits. A pressure relief valve should always be installed as a primary safety device.

Q: How often should a boiler pressure gauge be calibrated?

A: Calibration frequency depends on the criticality of the application and the severity of the operating environment. As a general guideline, annual calibration is recommended for most boiler applications. In harsh environments or critical systems, more frequent calibration (e.g., quarterly or semi-annually) may be necessary. Calibration records should be maintained for traceability.

Conclusion

The boiler pressure gauge remains an indispensable component in ensuring safe and efficient boiler operation. Its functionality, reliant on precise material science, meticulous manufacturing, and adherence to stringent industry standards, directly impacts the reliability and longevity of steam-based systems. Maintaining accurate calibration, understanding potential failure modes, and proactive maintenance are paramount to preventing costly downtime and ensuring personnel safety.

Looking forward, advancements in sensor technology and digital communication will continue to drive innovations in pressure gauge design, enabling remote monitoring, predictive maintenance, and enhanced data analysis. The integration of wireless communication protocols and self-diagnostic capabilities will further enhance the reliability and efficiency of these critical instruments.
