A differential pressure gauge is a crucial tool for measuring the difference in pressure between two points in a system. This type of gauge plays a vital role in a wide range of industries, from HVAC systems to chemical processing plants. By providing accurate measurements of pressure differences, differential pressure gauges help optimize system performance, enhance safety, and reduce energy costs. In this article, we’ll dive deep into the key aspects of differential pressure gauges, including their functionality, various applications, and important factors such as differential pressure gauge price and related equipment like the dp gauge with switch.

Understanding the Functionality of a Differential Pressure Gauge

A differential pressure gauge is designed to measure the difference in pressure between two input points. Unlike a standard pressure gauge, which measures the absolute pressure at a single point, the differential pressure gauge compares the pressures of two separate locations within a system. This is particularly useful in applications where the differential pressure is a critical indicator of system performance or efficiency.

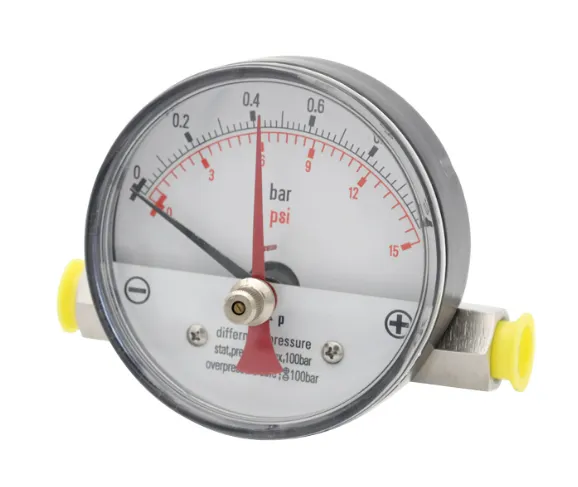

The differential pressure gauge typically features two ports: one for the higher pressure input and the other for the lower pressure input. The gauge calculates the difference between these two pressures and provides a reading that can be used to assess the flow rate, filter performance, or fluid levels in tanks. In HVAC systems, for example, differential pressure gauges are used to monitor air filters’ effectiveness by measuring the pressure drop across the filter. A sudden increase in pressure drop often indicates that the filter is clogged, prompting maintenance.

In industrial applications, differential pressure gauges are commonly used to measure pressure differences in pipelines, reactors, and ventilation systems. They ensure the system is operating within safe pressure parameters, helping to prevent issues like leaks, pump failures, and inefficient energy use.

The Role of a DP Gauge with Switch in Industrial Systems

A dp gauge with switch combines the functionality of a traditional differential pressure gauge with the added benefit of a built-in switch that can trigger an alarm or activate a system response when a certain pressure differential is reached. This is an important feature in environments where immediate action is required when specific pressure conditions occur, such as in filtration systems, steam boilers, or process tanks.

The dp gauge with switch is used to monitor critical systems where pressure variations can lead to safety hazards or inefficiencies. For instance, in a steam boiler, a sudden drop in pressure could indicate a leak or failure in the system. The switch on the dp gauge could trigger an alert or shut down the system to prevent further damage or catastrophic failures. Similarly, in filtration applications, the dp gauge with switch can notify maintenance teams when filters need to be replaced or cleaned, reducing downtime and increasing operational efficiency.

The switch on the dp gauge often comes with adjustable settings, allowing users to fine-tune when the alarm is triggered. This feature ensures that systems are only interrupted when absolutely necessary, minimizing unnecessary disruptions and enabling proactive maintenance practices.

Key Factors Influencing Differential Pressure Gauge Price

When purchasing a differential pressure gauge, one of the most important considerations is the differential pressure gauge price. The cost of a gauge can vary significantly based on factors like the materials used, the pressure range, additional features like built-in switches, and the intended application.

Basic differential pressure gauges without additional features tend to be more affordable, with prices generally ranging from $100 to $500, depending on the manufacturer and materials. These are often used in less demanding environments where high accuracy or specialized features are not critical. However, more advanced gauges, such as those with higher pressure ranges, digital displays, or built-in alarms, can cost upwards of $1,000 or more.

Factors that influence the differential pressure gauge price include:

Material of Construction: Gauges made from stainless steel or other high-grade materials are typically more expensive due to their durability and resistance to corrosion. For environments with harsh chemicals or extreme temperatures, investing in high-quality materials is necessary for reliable performance.

Accuracy and Precision: High-precision differential pressure gauges that provide extremely accurate readings are often priced higher. Gauges with tighter tolerances and advanced calibration options are designed for applications requiring highly sensitive measurements, such as laboratory or medical equipment.

Additional Features: The inclusion of additional features, such as dp gauges with switches, digital displays, or remote monitoring capabilities, can significantly increase the price. These advanced features often provide added convenience and automation but come at a premium.

Brand and Certification: Established brands with certifications such as ISO or ATEX (for explosion-proof environments) tend to have higher prices due to their reputation for quality and compliance with strict industry standards.

While the price of a differential pressure gauge may seem high, the benefits of enhanced system performance, safety, and efficiency typically outweigh the cost. Additionally, the longevity and reliability of high-quality gauges often make them a more economical choice in the long run.

The Difference Between Absolute Gauge and Differential Pressure

The terms absolute gauge and differential pressure are often used interchangeably in discussions about pressure measurement, but they refer to different concepts and applications. Understanding these differences is essential for selecting the right gauge for your system.

An absolute gauge measures the pressure relative to a perfect vacuum (zero pressure), meaning it accounts for atmospheric pressure in its readings. This is important in applications where precise absolute pressure measurements are needed, such as in the aerospace industry, vacuum systems, or barometric pressure monitoring.

On the other hand, a differential pressure gauge measures the difference between two points within a system. It does not consider atmospheric pressure but instead focuses on the pressure differential, which is crucial in applications like flow measurement, filter monitoring, and pressure drop analysis.

While both gauges measure pressure, the absolute gauge provides an absolute measurement with reference to a vacuum, while the differential pressure gauge compares the pressure at two points within a system. Choosing between these two types depends on whether you need an absolute pressure reading or are concerned with the difference in pressure between two points.
