Introduction

Gauge pressure is a measure of pressure relative to atmospheric pressure. Unlike absolute pressure, which uses a vacuum as its zero point, gauge pressure uses the surrounding atmospheric pressure as a baseline. This is a critical distinction in numerous industrial applications, from process control in chemical plants to pneumatic and hydraulic systems. Understanding gauge pressure is fundamental to ensuring accurate measurement and safe operation of equipment. Its utility stems from the practical convenience of measuring pressure differences rather than absolute values, simplifying design and calibration procedures. Common units of measure include pounds per square inch (psi), bars, and Pascals (Pa). The selection of appropriate measurement ranges and instrument calibration are vital for accurate data acquisition and control, particularly within industries reliant on precise pressure regulation. In industrial settings, gauge pressure is utilized in monitoring compressor discharge pressures, tank pressures, and fluid levels in various process vessels. Failure to correctly interpret or manage gauge pressure can lead to system inefficiencies, equipment damage, and potentially hazardous conditions.

Material Science & Manufacturing

The manufacturing of pressure gauges, the instruments used to measure gauge pressure, relies heavily on material science. Bourdon tubes, a common sensing element, are frequently constructed from beryllium copper alloys (like C17200) due to their high elasticity, corrosion resistance, and fatigue strength. The specific composition impacts the tube’s sensitivity and linearity. Stainless steels (304, 316) are also employed, offering robustness in corrosive environments, albeit with slightly lower elasticity. Diaphragm gauges utilize materials like Hastelloy and Inconel for extreme chemical compatibility and high-temperature applications. Manufacturing processes include deep drawing for Bourdon tube formation, followed by heat treatment to achieve the desired spring characteristics. Welded construction is critical for sealing, employing techniques like tungsten inert gas (TIG) welding to ensure structural integrity and prevent leaks. The case material, often stainless steel or aluminum, is manufactured through processes like machining and casting, with stringent dimensional tolerances. Calibration is performed using precision pressure standards, traceable to national metrology institutes. Parameter control during heat treatment, particularly tempering, is paramount in determining the gauge's accuracy and long-term stability. Surface finish on the Bourdon tube or diaphragm is crucial to minimize hysteresis and improve responsiveness. Manufacturing defects, such as inclusions or porosity in the metal, can lead to premature failure. Furthermore, proper cleaning protocols are essential to remove contaminants that could affect the gauge's performance or cause corrosion.

Performance & Engineering

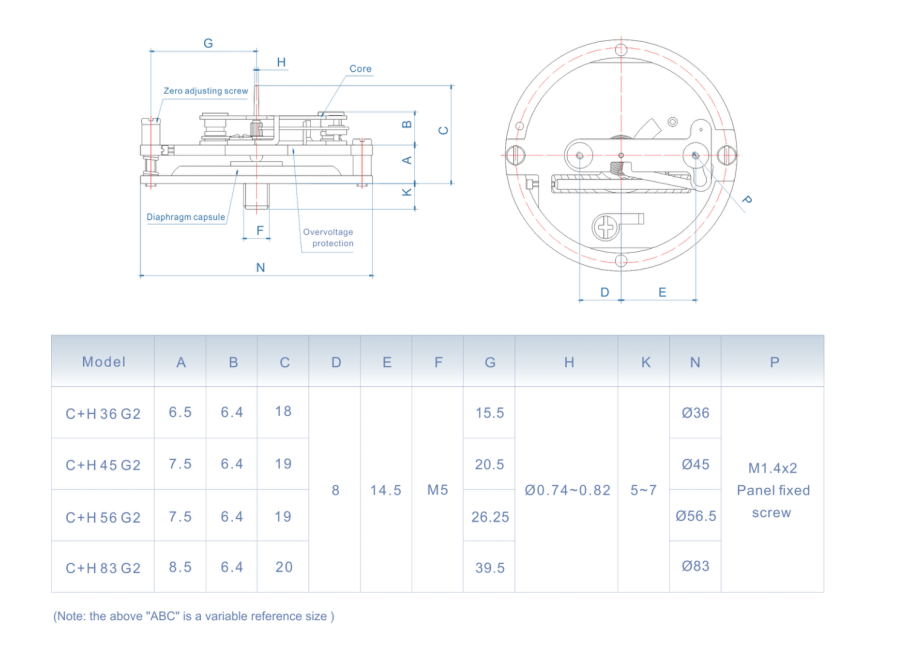

The engineering principles behind gauge pressure measurement center on force balance and material deformation. In a Bourdon tube gauge, the pressure difference between the internal fluid and the atmosphere causes the tube to deflect. This deflection is proportional to the gauge pressure, and is mechanically linked to a pointer. The engineering challenge lies in optimizing the tube's geometry (ovalness, wall thickness) to achieve a linear response over the desired pressure range. Stress analysis, using finite element methods (FEM), is critical to predicting the tube's behavior under pressure and preventing plastic deformation or rupture. Diaphragm gauges operate on a similar principle, where pressure deflects a flexible diaphragm. Strain gauges, bonded to the diaphragm, measure the deformation, converting it into an electrical signal. Compliance with standards like ASME B40.100 (Pressure Gauges and Pressure Measuring Elements) is essential for ensuring accuracy and safety. Environmental factors, such as temperature fluctuations, can significantly affect gauge performance, introducing errors due to thermal expansion and contraction of the sensing element. Compensating mechanisms, such as bimetallic strips or electronic temperature correction, are employed to mitigate these effects. Pulse dampeners and snubbers are often integrated into the system to protect the gauge from pressure spikes and vibrations, extending its lifespan and maintaining accuracy. Furthermore, the selection of appropriate wetted materials (those in contact with the fluid) is crucial for compatibility and corrosion resistance. Force analysis considers the impact of acceleration on the gauge, especially in dynamic applications, requiring proper mounting and vibration isolation.

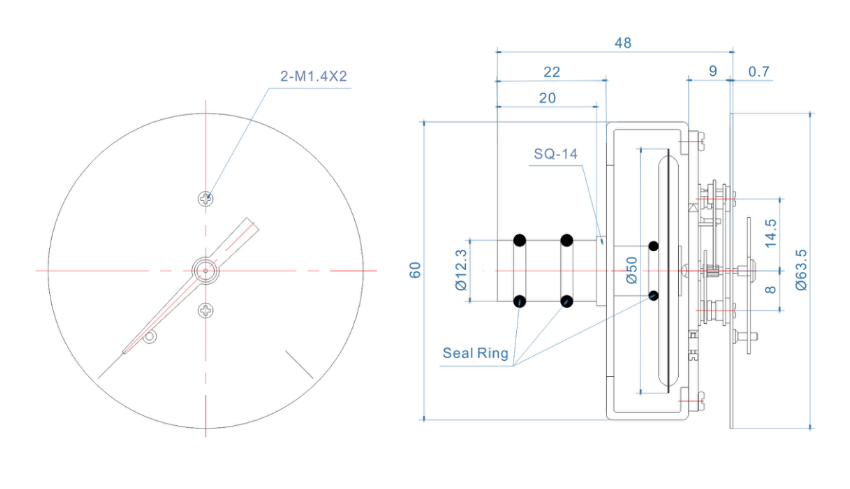

Technical Specifications

Parameter	Units	Typical Range	Accuracy (Typical)
Pressure Range	psi	0-30 to 0-10,000	±1.0% of span
Accuracy Class	-	1.6, 2.5	Refer to ASME B40.100
Temperature Range (Process)	°F	-100 to 400	Accuracy can drift ±0.5% per 50°F
Temperature Range (Ambient)	°F	-40 to 180	Requires compensation beyond this range
Connection Type	-	NPT, BSPT, SAE	Varies based on application
Wetted Material	-	Stainless Steel (304, 316), Brass	Compatibility dependent on fluid

Failure Mode & Maintenance

Gauge pressure instruments are subject to several failure modes. Fatigue cracking in the Bourdon tube, particularly near bends, is common due to cyclical pressure loading. Corrosion, especially in harsh environments, can lead to leakage and instrument failure. Overpressure events, exceeding the gauge's rated capacity, can cause permanent deformation or rupture. Zero drift, a gradual shift in the gauge’s reading, can be caused by hysteresis, temperature changes, or internal component wear. Blockage of the pressure port by particulate matter can lead to inaccurate readings. Maintenance involves regular visual inspection for physical damage, leaks, or corrosion. Periodic calibration, using a certified pressure standard, is crucial to maintain accuracy. Replacing the internal fluid (e.g., glycerin) in liquid-filled gauges helps dampen vibrations and protect internal components. Snubber installation mitigates the effects of pressure pulsations and shocks. Proper venting of the gauge to the atmosphere is essential for accurate readings. Failure analysis should investigate the root cause of failures, including material defects, environmental factors, and operating conditions. Preventative maintenance schedules should be implemented based on the application and operating environment, including routine cleaning and lubrication of moving parts. Regular zero and span adjustments ensure consistent performance. Proper decommissioning and disposal of gauges are important due to potential hazardous materials contained within.

Industry FAQ

Q: What is the difference between gauge pressure, absolute pressure, and vacuum pressure?

A: Gauge pressure is referenced to atmospheric pressure, indicating pressure relative to the surrounding environment. Absolute pressure is referenced to a perfect vacuum, providing the true pressure. Vacuum pressure indicates how much less pressure there is than atmospheric pressure. Understanding these distinctions is critical as different applications require different references for accurate measurement and control.

Q: How does temperature affect gauge pressure readings?

A: Temperature influences gauge pressure readings through thermal expansion and contraction of the sensing element and the process fluid. Higher temperatures typically cause an increase in pressure due to expansion. Compensating mechanisms, such as bimetallic strips or electronic temperature correction, are used to minimize these effects. Accurate temperature monitoring and correction are crucial for maintaining accurate gauge pressure measurements.

Q: What are common causes of gauge pressure gauge inaccuracy?

A: Common causes include zero drift, hysteresis, material fatigue, corrosion, blockage of the pressure port, and improper calibration. Regular calibration, inspection, and maintenance are essential for ensuring accuracy. Environmental factors, such as vibration and temperature fluctuations, can also contribute to inaccuracy.

Q: What is the role of a snubber in a gauge pressure system?

A: A snubber is a flow restrictor designed to dampen pressure pulsations and shocks, protecting the gauge from damage and improving its lifespan. This is particularly important in applications with reciprocating compressors or hydraulic systems. It effectively reduces wear and tear on the sensing element, ensuring more reliable readings.

Q: What materials are best suited for gauge pressure measurement in corrosive environments?

A: Materials like stainless steel (316), Hastelloy, and Inconel offer excellent corrosion resistance. The specific material selection depends on the nature of the corrosive fluid. Compatibility charts should be consulted to ensure the wetted parts of the gauge are resistant to the process fluid. Protective coatings can also be employed to enhance corrosion resistance.

Conclusion

Gauge pressure measurement is a fundamental aspect of many industrial processes, requiring a thorough understanding of its principles, applications, and limitations. The accurate measurement of pressure relative to atmospheric conditions relies on carefully selected materials, precise manufacturing techniques, and diligent maintenance practices. The interplay between material science, engineering design, and rigorous calibration procedures ensures reliable and safe operation.

Moving forward, advancements in sensor technology, such as digital pressure sensors and wireless communication protocols, will further enhance the accuracy, efficiency, and remote monitoring capabilities of gauge pressure systems. Continued research into material science will yield even more robust and corrosion-resistant sensors, capable of operating in increasingly demanding environments. Adherence to evolving industry standards and best practices will be paramount in maintaining the integrity and reliability of these critical measurement systems.
