Introduction

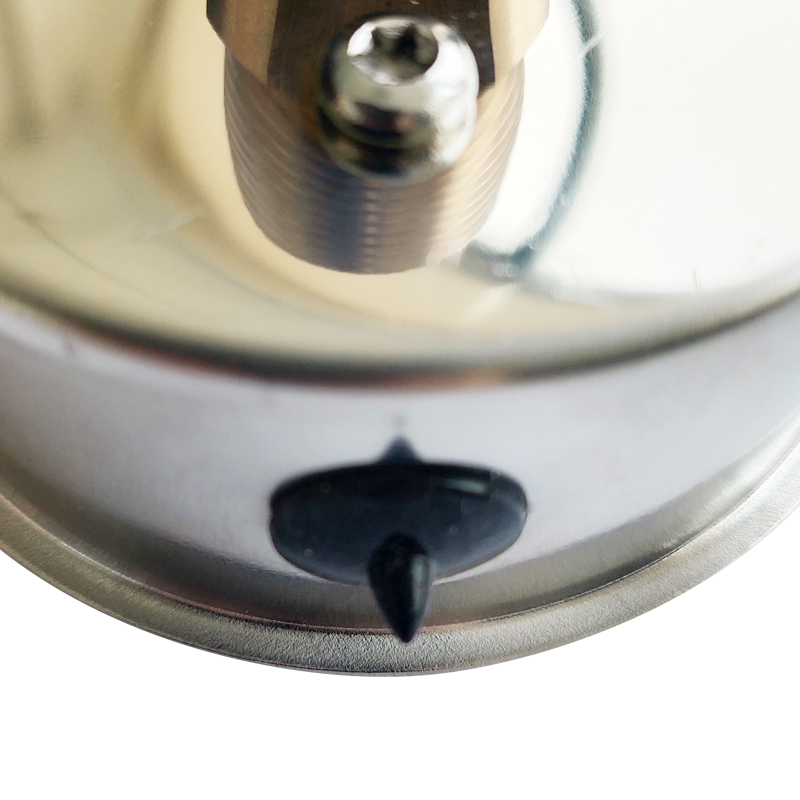

A reliable tire pressure gauge is a critical instrument in vehicle maintenance, impacting safety, fuel efficiency, and tire longevity. Within the automotive industry supply chain, the gauge functions as a final quality control checkpoint for tire installers and a fundamental tool for vehicle owners. These gauges, ranging from analog dial indicators to digital displays, operate on the principle of measuring the pressure exerted by compressed air within a tire, typically expressed in pounds per square inch (PSI) or bar. Core performance characteristics include accuracy, repeatability, durability, and ease of use. Inaccuracies can lead to under- or over-inflation, increasing the risk of tire failure and compromising handling. This guide provides an in-depth technical examination of tire pressure gauge construction, performance parameters, failure modes, and relevant industry standards, aimed at procurement professionals, automotive engineers, and quality control personnel.

Material Science & Manufacturing

The materials used in tire pressure gauge construction directly influence its accuracy, longevity, and resistance to environmental factors. Gauge housings are commonly fabricated from impact-resistant polymers like acrylonitrile butadiene styrene (ABS) or polycarbonate (PC) for affordability and durability. Higher-end gauges may utilize stainless steel for increased robustness and corrosion resistance. The sensing element – the critical component responsible for pressure measurement – varies depending on the gauge type. Analog gauges typically employ a Bourdon tube, manufactured from beryllium copper or phosphor bronze, chosen for their elasticity and resistance to permanent deformation. Digital gauges frequently integrate a piezoresistive pressure sensor, consisting of a silicon diaphragm with embedded strain gauges. Manufacturing processes differ accordingly. Bourdon tube gauges require precise tube forming, heat treatment to enhance elasticity, and meticulous calibration. Digital gauges involve semiconductor fabrication, sensor bonding, and electronic circuit assembly. Parameter control during Bourdon tube forming – specifically wall thickness and radius of curvature – is paramount for linearity. For piezoresistive sensors, maintaining a cleanroom environment during fabrication is essential to prevent contamination and ensure sensor sensitivity. Calibration, for both types, utilizes NIST-traceable pressure standards and automated testing equipment to ensure accuracy across the gauge’s specified range. The sealing of the gauge – preventing air leaks – is crucial and achieved through O-ring seals often made of nitrile rubber (NBR) or fluoroelastomer (FKM) depending on temperature and fluid compatibility requirements.

Performance & Engineering

The performance of a tire pressure gauge is defined by several key engineering parameters. Accuracy, typically expressed as a percentage of full scale (%FS), is the deviation between the indicated pressure and the actual pressure. Repeatability, also expressed as %FS, represents the consistency of readings under identical conditions. Linearity describes the deviation from a straight-line relationship between input pressure and output reading. Hysteresis refers to the difference in readings when approaching a specific pressure from increasing versus decreasing directions. These parameters are profoundly influenced by temperature. Temperature compensation techniques, utilizing bimetallic strips or electronic circuitry, are incorporated into higher-quality gauges to minimize temperature-induced errors. Environmental resistance is another critical consideration. Exposure to moisture, dust, and extreme temperatures can affect gauge accuracy and lifespan. Ingress Protection (IP) ratings, such as IP67, define the level of protection against these elements. Force analysis is essential in the design of the Bourdon tube, ensuring it can withstand repeated flexing without permanent deformation. Finite Element Analysis (FEA) is commonly used to optimize the tube’s geometry and material properties. Compliance requirements vary by region, with DOT (Department of Transportation) standards in the US and ECE regulations in Europe specifying minimum accuracy and safety requirements for tire pressure gauges used in commercial vehicles.

Technical Specifications

Parameter	Typical Analog Gauge	Typical Digital Gauge	High-Precision Digital Gauge
Pressure Range (PSI)	0-60 PSI	0-150 PSI	0-200 PSI
Accuracy (%FS)	±3%	±1%	±0.1%
Repeatability (%FS)	±2%	±0.5%	±0.05%
Resolution (PSI)	1 PSI	0.1 PSI	0.01 PSI
Operating Temperature (°C)	-20 to 60	-10 to 50	-10 to 60
Housing Material	ABS Plastic	ABS Plastic	Stainless Steel

Failure Mode & Maintenance

Tire pressure gauges are susceptible to several failure modes. Analog gauges commonly experience Bourdon tube fatigue cracking due to repeated flexing, leading to inaccurate readings. Corrosion of the Bourdon tube, particularly in environments with high humidity or exposure to road salt, can also cause failure. Digital gauges are prone to sensor drift – a gradual change in sensor output over time – and electronic component failure, especially the pressure sensor and display circuit. Battery depletion is a frequent issue with digital gauges. Leakage at the air chuck connection is a common problem for both types, caused by worn or damaged O-rings. Maintenance is relatively straightforward. Regular visual inspection for physical damage, such as cracks in the housing or a damaged air chuck, is crucial. Periodic calibration against a NIST-traceable standard is recommended, especially for gauges used in professional settings. For analog gauges, lubrication of the movement mechanism (if accessible) can improve accuracy. Digital gauges require battery replacement as needed. Proper storage – avoiding exposure to extreme temperatures and direct sunlight – can extend the gauge’s lifespan. If a gauge consistently provides inaccurate readings after calibration, it should be replaced.

Industry FAQ

Q: What is the impact of temperature on the accuracy of a tire pressure gauge?

A: Temperature significantly affects the accuracy of both analog and digital gauges. Temperature changes alter the elasticity of the Bourdon tube in analog gauges, and can induce drift in the piezoresistive sensors of digital gauges. High-quality gauges incorporate temperature compensation mechanisms, but even these have limited effectiveness. It's best practice to calibrate gauges at the expected operating temperature or to correct readings based on known temperature coefficients.

Q: How often should a tire pressure gauge be calibrated?

A: Calibration frequency depends on usage. For personal use, annual calibration is generally sufficient. For professional applications, such as tire shops or fleet maintenance, calibration should be performed every 6-12 months, or more frequently if the gauge is subjected to harsh conditions or frequent use. Calibration should always be traceable to a NIST standard.

Q: What is the difference between PSI, bar, and kPa, and how do I convert between them?

A: PSI (pounds per square inch) is a unit of pressure commonly used in the US. Bar and kPa (kilopascals) are metric units of pressure. 1 PSI is approximately equal to 6.895 kPa and 0.06895 bar. Conversion can be done using online calculators or the following formulas: PSI to kPa: PSI 6.895 = kPa; PSI to bar: PSI 0.06895 = bar.

Q: What is the significance of the IP rating for a tire pressure gauge?

A: The IP (Ingress Protection) rating indicates the level of protection the gauge provides against solid objects and liquids. The first digit represents protection against solids (dust), and the second digit represents protection against liquids (water). A higher IP rating indicates greater protection. For example, IP67 provides complete protection against dust and can withstand immersion in water up to 1 meter for 30 minutes.

Q: What are the common causes of inaccurate readings even with a seemingly functional gauge?

A: Several factors can contribute to inaccurate readings. A damaged or worn air chuck, leaking seals, internal component wear (particularly in analog gauges), low battery in digital gauges, and incorrect calibration are all potential causes. Also, ensure the gauge is applied perpendicularly to the tire valve stem for a proper seal and accurate reading.

Conclusion

The reliable tire pressure gauge, despite its seemingly simple construction, is a precision instrument demanding careful material selection, rigorous manufacturing control, and consistent calibration. Understanding the interplay between material properties, performance parameters, and potential failure modes is paramount for ensuring accurate and dependable operation. The ongoing trend towards digital gauges offers increased accuracy and features, but necessitates robust electronic design and reliable power management.

Procurement decisions should prioritize gauges with verifiable calibration certificates, suitable IP ratings for the intended environment, and demonstrable adherence to relevant industry standards. Continuous monitoring of gauge performance, combined with proactive maintenance and periodic recalibration, is essential for maximizing lifespan, maintaining safety, and optimizing vehicle performance. Future development may focus on integrating wireless connectivity for data logging and real-time pressure monitoring, further enhancing the utility and reliability of these critical tools.
