Understanding Diaphragm Type Pressure Gauges

In the realm of industrial instrumentation, pressure measurement is crucial for ensuring operational efficiency, safety, and reliability. Among the various types of pressure gauges used in industries today, the diaphragm type pressure gauge stands out as a highly effective and reliable choice. This article explores the construction, working principle, applications, and advantages of diaphragm type pressure gauges.

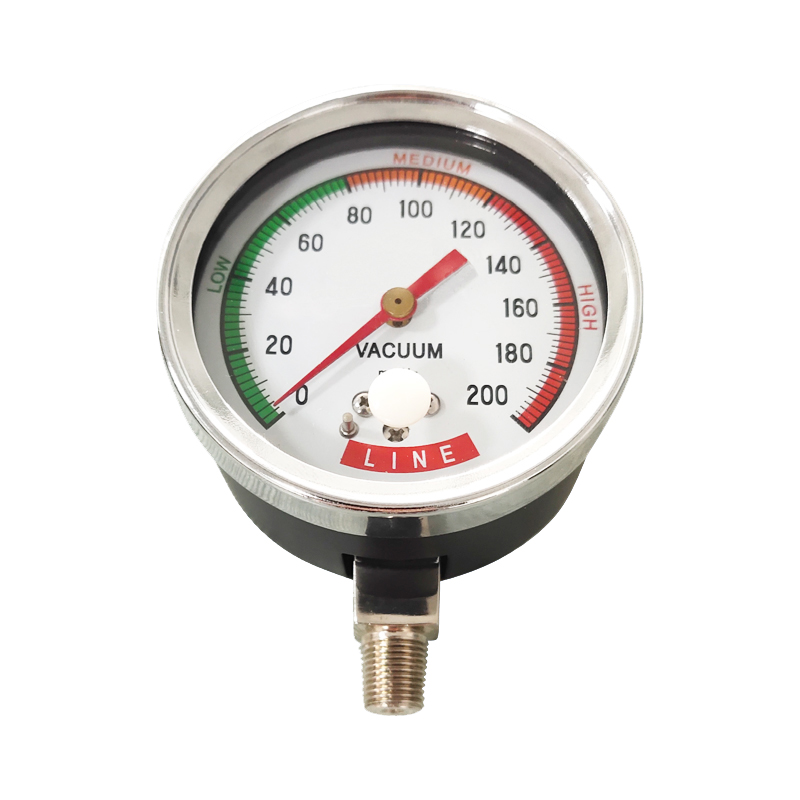

Construction and Working Principle

A diaphragm type pressure gauge typically consists of a rigid metallic casing, a flexible diaphragm, a mechanical linkage, and a dial face. The diaphragm, often made from materials such as stainless steel or other corrosion-resistant alloys, acts as the sensing element. When pressure is applied on one side of the diaphragm, it causes the diaphragm to deflect.

This deflection is proportional to the applied pressure. The mechanical linkage converts the diaphragm's movement into a rotational movement that turns the pointer on the dial face, indicating the pressure reading. Since the diaphragm can flex, this type of pressure gauge can effectively measure both positive and negative pressures.

Types of Diaphragm Pressure Gauges

Diaphragm type pressure gauges can be categorized into several types based on their design and usage

1. Absolute Pressure Gauges Measure pressure relative to a perfect vacuum. They are essential in applications where knowing pressure in relation to zero is critical.

2. Gauge Pressure Gauges Measure pressure relative to atmospheric pressure. These are commonly used in various industrial applications where pressure needs to be monitored against the atmospheric pressure.

3. Differential Pressure Gauges Measure the difference between two pressure values. They are vital in applications like filter monitoring and flow measurement.

Diaphragm type pressure gauges are widely used in diverse sectors, including

- Oil and Gas Monitoring pressure in pipelines, storage tanks, and various processing equipment. - Pharmaceuticals Ensuring the integrity of processes and equipment where pressure control is vital for product quality. - Food and Beverage Monitoring pressures during production processes, ensuring compliance with safety and quality standards. - Water Treatment Used in pumps and filtration systems to monitor and control pressure levels. - HVAC Systems Maintaining optimal performance in heating, ventilation, and cooling systems.

Advantages of Diaphragm Type Pressure Gauges

The diaphragm type pressure gauge offers several advantages

1. Durability They are robust and can withstand harsh environments, making them suitable for extreme conditions.

2. Sensitivity They provide precise measurements due to the diaphragm’s ability to respond to even minor pressure changes.

3. Corrosion Resistance With appropriate materials, these gauges can resist corrosive substances, ensuring longevity and reliability.

4. Compact Design They are often smaller and lighter than other pressure gauges, allowing for easy installation in confined spaces.

5. Versatility Capable of measuring a wide range of pressures, including vacuum, positive, and differential pressures.

Conclusion

Diaphragm type pressure gauges are an essential tool in modern industry, providing accurate pressure measurement across various applications. Their reliability, sensitivity, and durability make them a preferred choice for many engineers and operators. As industries continue to evolve, the diaphragm type pressure gauge stands ready to meet the challenges of pressure measurement, ensuring processes remain efficient and safe. Understanding their functioning and applications can help professionals select the right instruments for their specific needs, ultimately enhancing productivity and operational success.
