Understanding ODM Differential Pressure Gauge Construction

Differential pressure gauges are essential instruments in various industrial applications. They measure the difference in pressure between two points in a system, which is crucial for monitoring flow rates, detecting clogs, and ensuring the efficiency of processes. The ODM (Operational Differential Measurement) differential pressure gauge is a specific type of instrument known for its precision and reliability. Understanding its construction can help users appreciate its functionality and applications.

Components of ODM Differential Pressure Gauges

An ODM differential pressure gauge primarily consists of three key components the sensing element, the housing, and the internal mechanism. Each of these parts plays a significant role in the gauge’s performance.

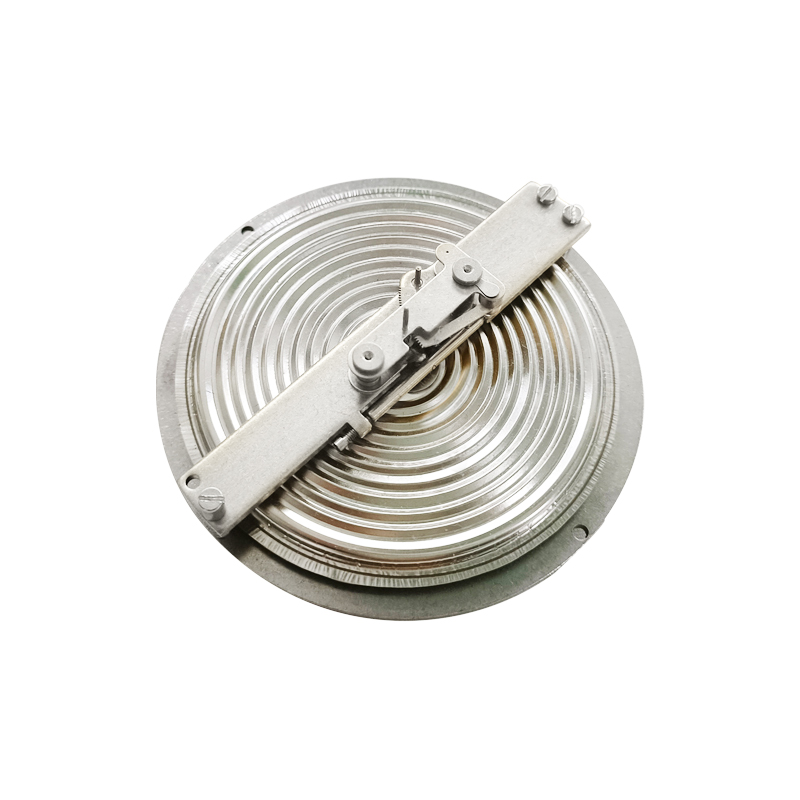

1. Sensing Element The heart of the ODM differential pressure gauge is its sensing element, typically made from a flexible diaphragm or bourdon tube. This component deforms when a pressure difference is applied, converting the pressure into mechanical movement. The sensing element's material must be carefully selected based on the process media it will encounter, ensuring compatibility and durability.

2. Housing The gauge's housing protects its internal components from environmental factors such as dust, moisture, and corrosive substances. Depending on the application, housings can be made of various materials, including stainless steel, brass, or specialized plastics. The design of the housing often includes features like a pressure release valve and ports for connecting to the process lines.

3. Internal Mechanism The internal mechanism translates the movement of the sensing element into a readable output. This often involves a set of gears or levers that amplify the small displacements caused by pressure differentials. The mechanism is calibrated to ensure that the gauge provides accurate readings across its specified range. Many modern gauges also integrate electrical components to provide digital outputs, enhancing automation in monitoring systems.

Calibration and Accuracy

Calibration is a crucial part of ensuring the accuracy and reliability of ODm differential pressure gauges. Gauges must be regularly calibrated against a known standard to account for any drift in accuracy over time. This process usually involves applying controlled pressure differentials and adjusting the gauge readings to match the standard. Additionally, environmental factors such as temperature and humidity can affect gauge performance, necessitating careful consideration during calibration.

Applications of ODM Differential Pressure Gauges

ODM differential pressure gauges are widely used across various industries, including water treatment, oil and gas, pharmaceuticals, and food processing. In water treatment, for instance, they help monitor filter performance by measuring pressure drop across filters. In the oil and gas sector, they can be utilized to monitor pipeline systems, ensuring that flow rates remain consistent and that there are no blockages.

Conclusion

In conclusion, the ODM differential pressure gauge is a vital instrument in modern industry, providing accurate measurements that are essential for process monitoring and control. Its construction, featuring a robust sensing element, protective housing, and efficient internal mechanism, highlights its complexity and utility. Understanding these components and their functions enables users to make informed decisions when selecting and using differential pressure gauges in their applications. Regular calibration and maintenance further ensure these instruments continue to operate at peak performance, contributing to the overall efficiency and safety of industrial processes.
