Introduction

Well pressure gauges are critical instruments used in the oil and gas industry for monitoring and controlling downhole pressure in oil and gas wells. Positioned within the industry chain between reservoir engineering and production optimization, these gauges provide essential real-time data for efficient and safe well operation. They function by measuring the hydrostatic pressure exerted by the fluid column within the wellbore, translating this into a readable pressure indication. Core performance characteristics include accuracy, reliability under harsh downhole conditions (high temperature, corrosive fluids), and the ability to transmit data reliably to surface monitoring systems. The primary pain point addressed by advanced well pressure gauges is the need for continuous, accurate, and remotely accessible pressure data to prevent well control issues, optimize production rates, and minimize costly interventions.

Material Science & Manufacturing

The construction of well pressure gauges involves several materials chosen for their specific properties. The pressure sensing element is typically a bonded strain gauge, often utilizing nickel-chromium alloys (e.g., Constantan) due to their high gauge factor and temperature stability. The gauge body is frequently constructed from stainless steel (316L or similar) to provide corrosion resistance against fluids like brine, hydrogen sulfide (H₂S), and carbon dioxide (CO₂). Seals commonly utilize materials like Viton (fluoroelastomer) or Perfluoroelastomers (FFKM) for chemical compatibility and high-temperature performance. Electrical connectors often employ gold-plated alloys for corrosion resistance and reliable signal transmission.

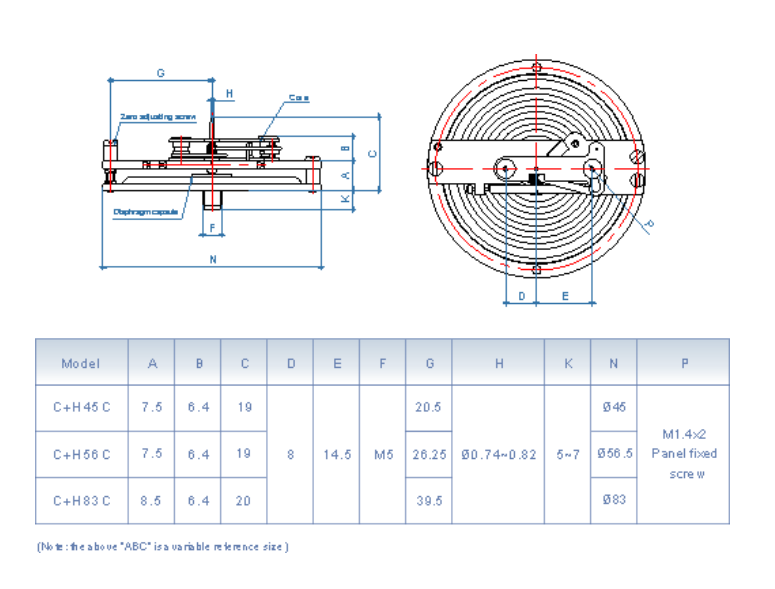

Manufacturing processes vary depending on the gauge type (electronic, mechanical). Electronic gauges involve precise strain gauge bonding to a diaphragm, followed by calibration and encapsulation within a robust housing. Key parameters in this process include adhesive selection (epoxy resins with controlled viscosity and cure rates), bonding pressure and temperature control, and meticulous wiring to minimize noise and signal drift. Mechanical gauges rely on Bourdon tubes, manufactured through cold forming and heat treatment to achieve desired elasticity and strength. Critical parameters here are tube diameter, wall thickness, and the quality of the heat treatment process to prevent stress corrosion cracking. Both types undergo rigorous quality control, including hydrostatic testing and calibration against traceable standards. Welded joints, where present, are typically performed using Gas Tungsten Arc Welding (GTAW) with stringent quality checks to ensure leak-proof integrity.

Performance & Engineering

The performance of a well pressure gauge is governed by several engineering considerations. Force analysis focuses on understanding the stresses acting on the sensing element (diaphragm or Bourdon tube) under maximum well pressure. Finite Element Analysis (FEA) is routinely used to optimize the design and ensure structural integrity. Environmental resistance is paramount; gauges must withstand high temperatures (up to 200°C or higher depending on depth), significant hydrostatic pressure, and corrosive well fluids. Corrosion prevention relies on material selection, protective coatings (e.g., epoxy coating on electronic components), and cathodic protection techniques where applicable.

Compliance requirements are stringent. Well pressure gauges must meet standards related to accuracy (NIST traceable calibration), electrical safety (IECEx or ATEX certifications for hazardous environments), and reliability (API specifications). Functional implementation often involves digital signal processing to compensate for temperature effects, linearize the output, and transmit data wirelessly (using protocols like WITSML or Modbus) or via hardwired connections. The transmission of pressure data requires careful consideration of signal attenuation, noise immunity, and data security to prevent unauthorized access or manipulation. Downhole pressure fluctuations and potential surge pressures necessitate fast response times and robust damping mechanisms to prevent damage to the gauge.
