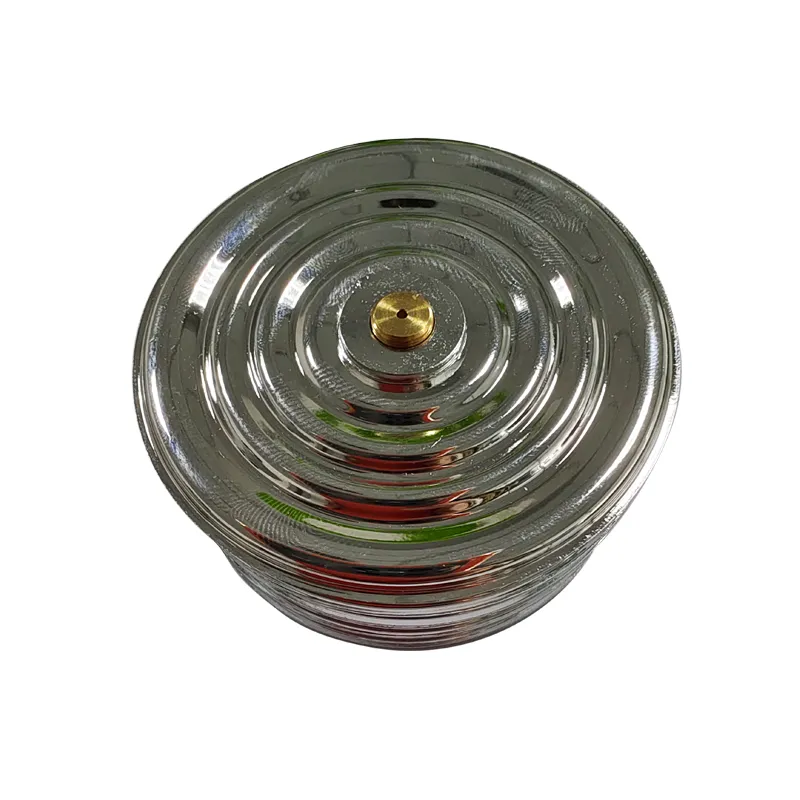

Model

C+H Ø60(CS)

Nominal Diameter (mm)

60

Displacement (mm)

1.1~1.4

Accuracy (%)

1 ， 1.6  ，2.5

Pressure Range

Item No：1001(CS)---0~250kPa

Load Capacity

Static Load                     ≤ Full Scale
Fluctuating Load            ≤ 90% Full Scale
Overload Safety Value   ≤ 125% Full Scale

Working Environment

Ambient Temperature    -25°C ~55°C
Medium max.                +55°C
Relative humidity           ≤ 80%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Measuring Element
Beryllium Copper  (Electroplate)

Connection
M6 / M5 (Sealing ring connection)
