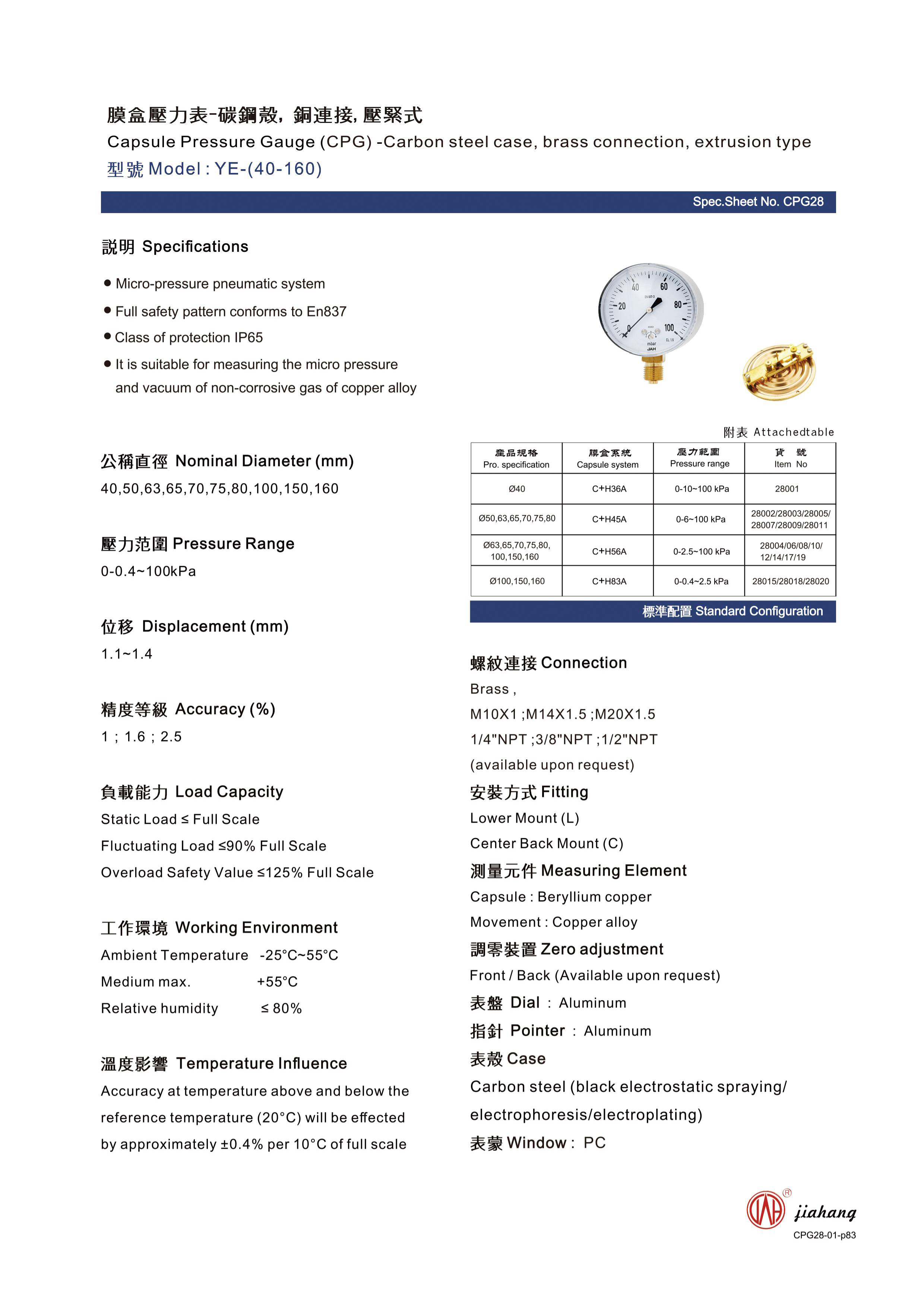

Model

YE-(40-160)

Nominal Diameter (mm)
40,50,63,65,70,75,80,100,150,160

Pressure Range
0-0.4~100 kPa

Displacement (mm)
1.1~1.4

Accuracy (%)
1；1.6；2.5

Load Capacity
Static Load                   ≤ Full Scale
Fluctuating Load          ≤ 90% Full Scale
Overload Safety Value ≤ 125% Full Scale

Working Environment
Ambient Temperature -25°C ~55°C
Medium max.             +55°C
Relative humidity        ≤ 80%

Temperature Influence
Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Connection
Brass ,
M10X1 ;M14X1.5 ;M20X1.5
1/4"NPT ;3/8"NPT ;1/2"NPT
(available upon request)

Fitting
Lower Mount (L)
Center Back Mount (C)

Measuring Element
Capsule : Beryllium copper
Movement : Copper alloy

Zero adjustment
Front / Back (Available upon request)
Dial : Aluminum
Pointer : Aluminum

Case
Carbon steel (black electrostatic spraying/
electrophoresis/electroplating)

Window

PC
