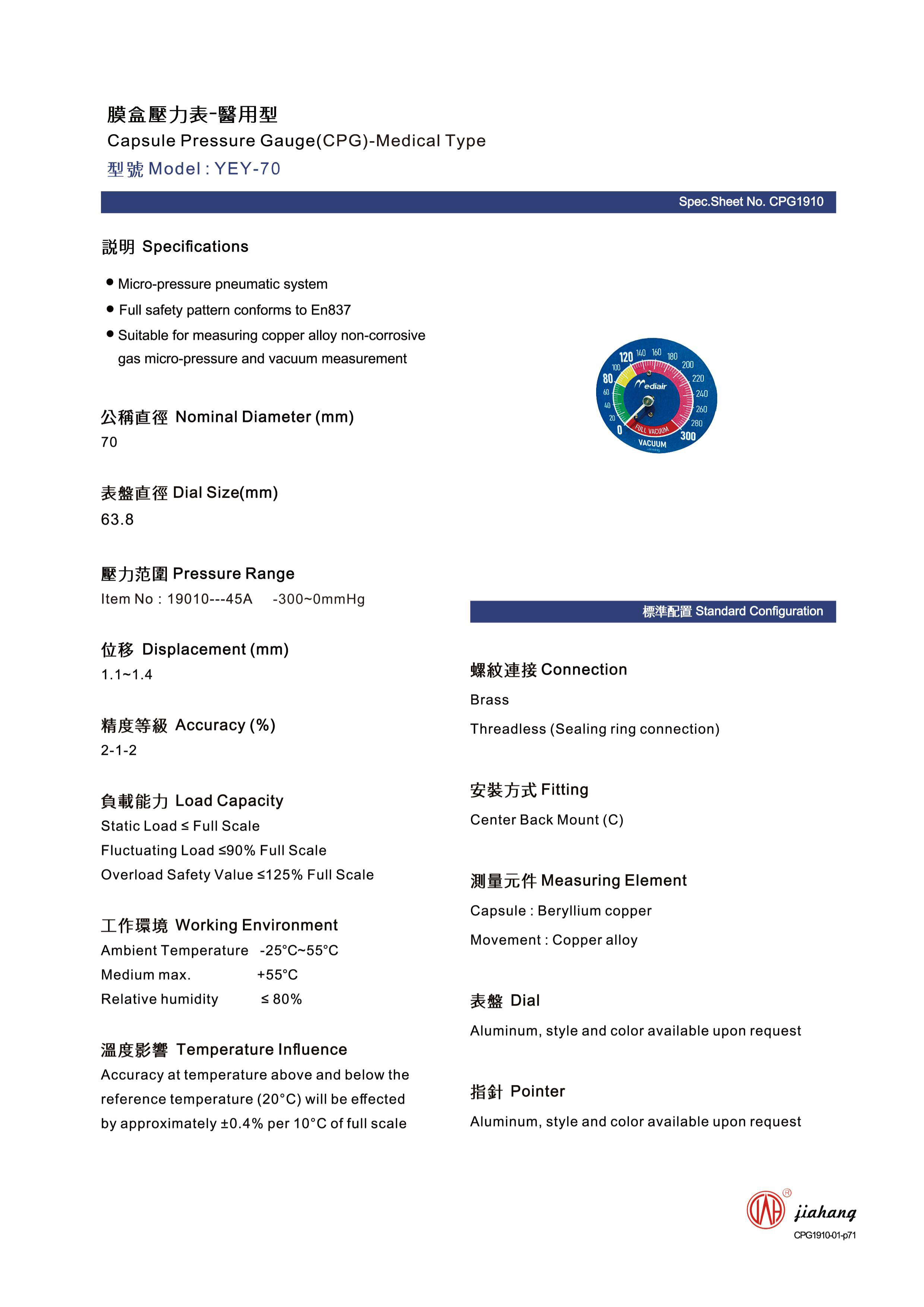

Model

YEY-70

Nominal Diameter (mm)
70

Dial Size (mm)
63.8

Pressure Range
Item No：19010---45A     -300~0mmHg

Displacement (mm)
1.1~1.4

Accuracy (%)
2-1-2

Load Capacity
Static Load                   ≤ Full Scale
Fluctuating Load          ≤ 90% Full Scale
Overload Safety Value ≤ 125% Full Scale

Working Environment
Ambient Temperature  -25°C ~55°C
Medium max.              +55°C
Relative humidity        ≤ 80%

Temperature Influence
Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Connection
Brass
Threadless (Sealing ring connection)

Fitting
Center Back Mount (C)

Measuring Element
Capsule : Beryllium copper
Movement : Copper alloy

Dial
Aluminum, style and color available upon request

Pointer
Aluminum, style and color available upon request

Model

YEY-70

Nominal Diameter (mm)
70

Dial Size (mm)
63.8

Pressure Range
Item No：19009---45A    -760~0mmHg

Displacement (mm)
1.1~1.4

Accuracy (%)
2-1-2

Load Capacity
Static Load                    ≤ Full Scale
Fluctuating Load           ≤ 90% Full Scale
Overload Safety Value  ≤ 125% Full Scale

Working Environment
Ambient Temperature   -25°C ~55°C
Medium max.               +55°C
Relative humidity          ≤ 80%

Temperature Influence
Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Connection
Brass
Threadless (Sealing ring connection)

Fitting
Center Back Mount (C)

Measuring Element
Capsule : Beryllium copper
Movement : Copper alloy

Dial
Aluminum, style and color available upon request

Pointer
Aluminum, style and color available upon request
