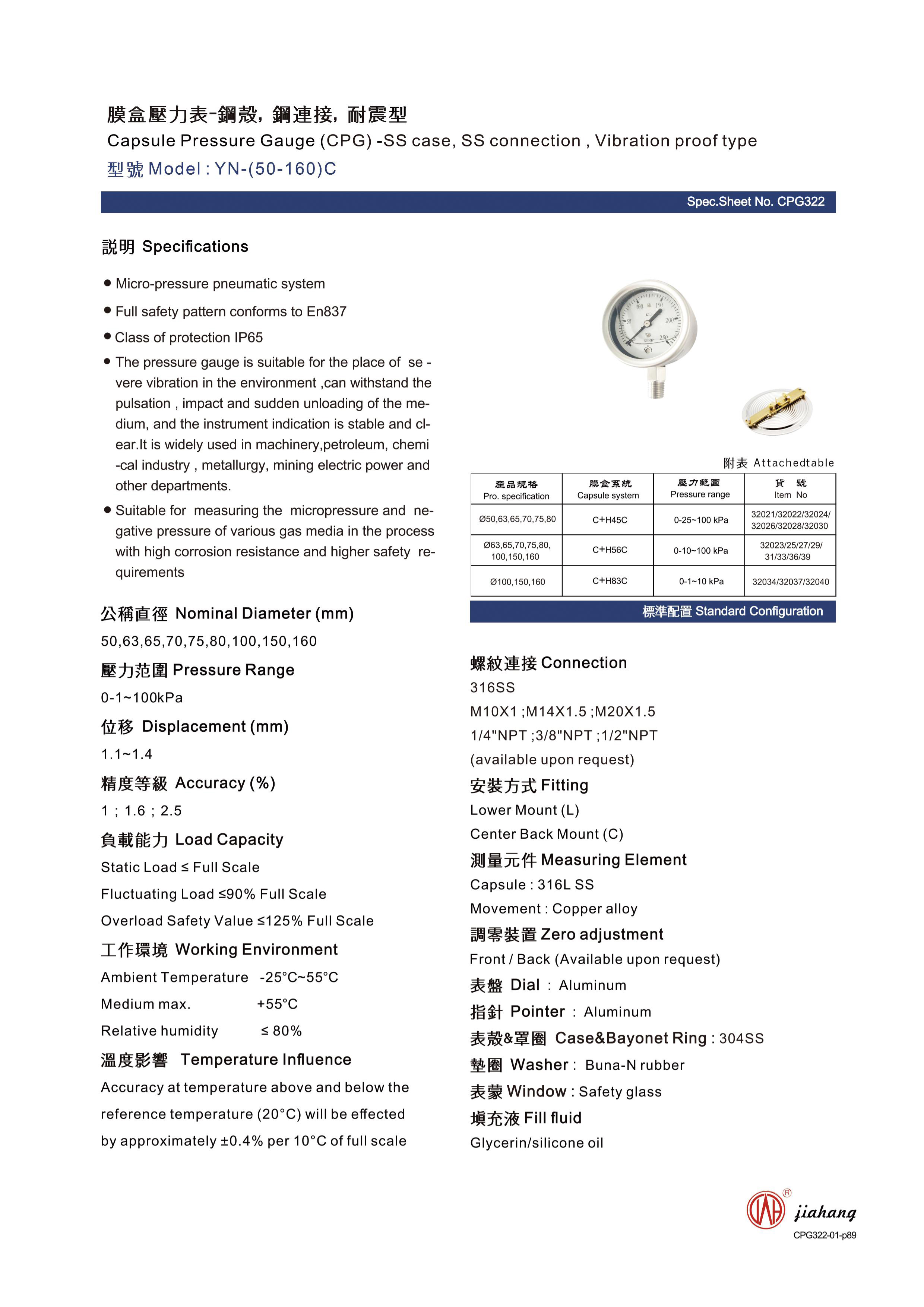

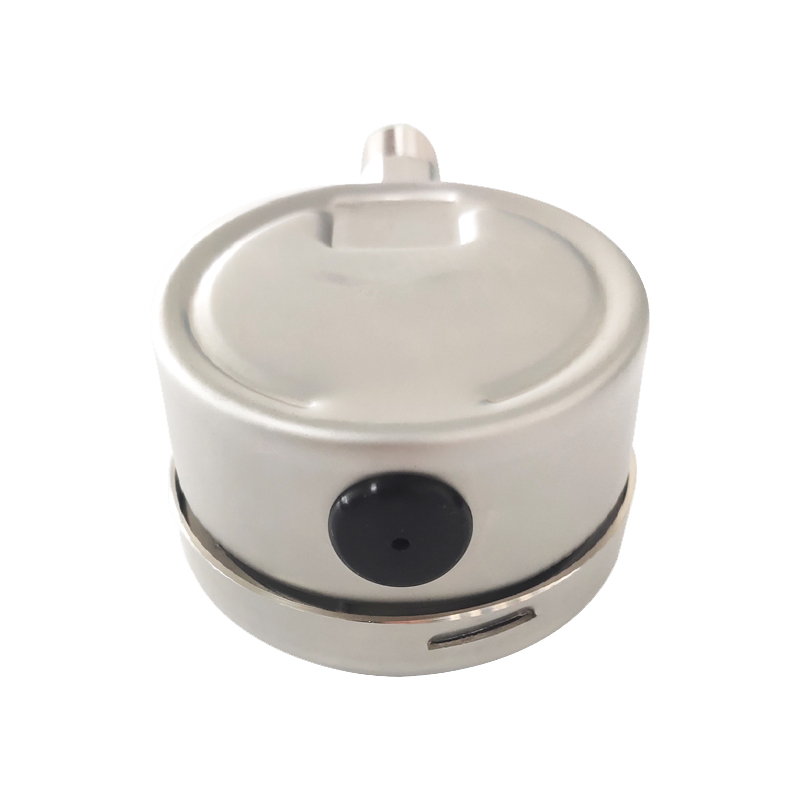

Capsule Pressure Gauge (CPG) -SS case, SS connection , Vibration proof typeYN-(50-160)C

●Micro-pressure pneumatic system

●Full safety pattern conforms to En837

●Class of protection IP65

●The pressure gauge is suitable for the place of severe vibration in the environment ,can withstand the pulsation , impact and sudden unloading of the medium, and the instrument indication is stable and clear.It is widely used in machinery,petroleum, chemical industry , metallurgy, mining electric power and other departments.

●Suitable for measuring the micropressure and negative pressure of various gas media in the process with high corrosion resistance and higher safety requirements

CONTACT NOW down load to pdf

Details

Tags

PRODUCT SPECIFICATION

Model

YN-(50-160)C

Nominal Diameter (mm)
50,63,65,70,75,80,100,150,160

Pressure Range
0-1~100 kPa

Displacement (mm)
1.1~1.4

Accuracy (%)
1；1.6；2.5

Load Capacity
Static Load ≤ Full Scale
Fluctuating Load ≤ 90% Full Scale
Overload Safety Value ≤ 125% Full Scale

Working Environment
Ambient Temperature -25°C ~55°C
Medium max. +55°C
Relative humidity ≤ 80%

Temperature Influence
Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

STANDARD CONFIGURATION

Connection
316SS
M10X1 ;M14X1.5 ;M20X1.5
1/4"NPT ;3/8"NPT ;1/2"NPT
(available upon request)

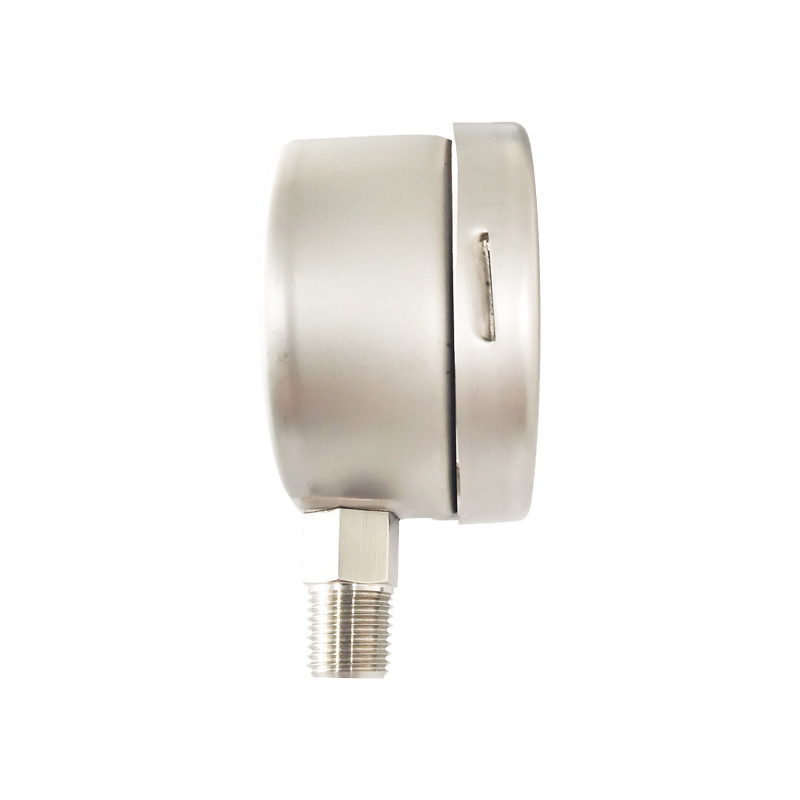

Fitting
Lower Mount (L)
Center Back Mount (C)

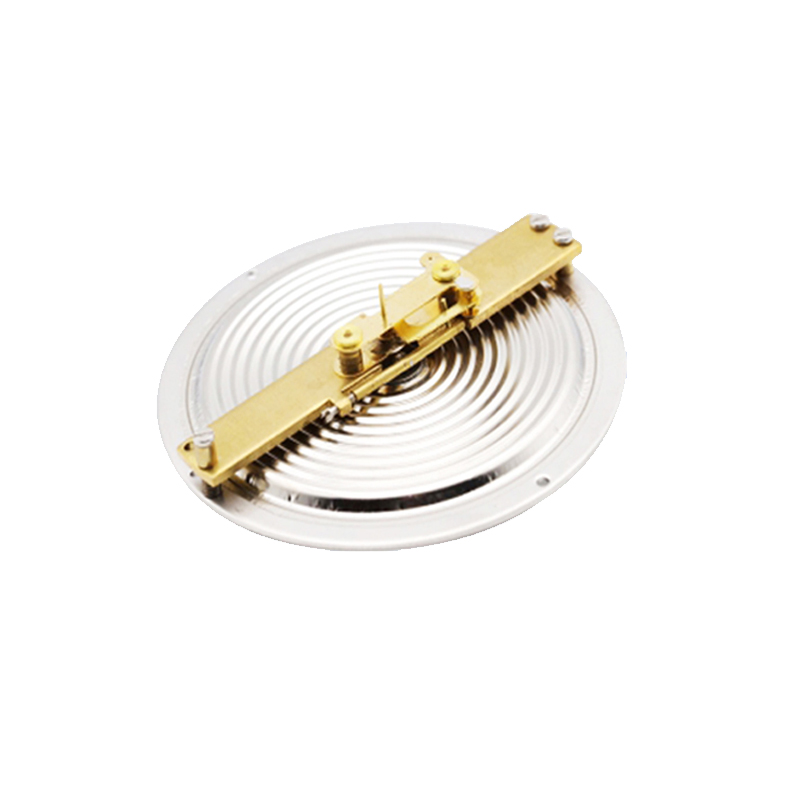

Measuring Element
Capsule : 316L SS
Movement : Copper alloy

Zero adjustment
Front / Back (Available upon request)

Dial

Aluminum

Pointer

Aluminum

Case&Bayonet Ring

304SS

Washer
