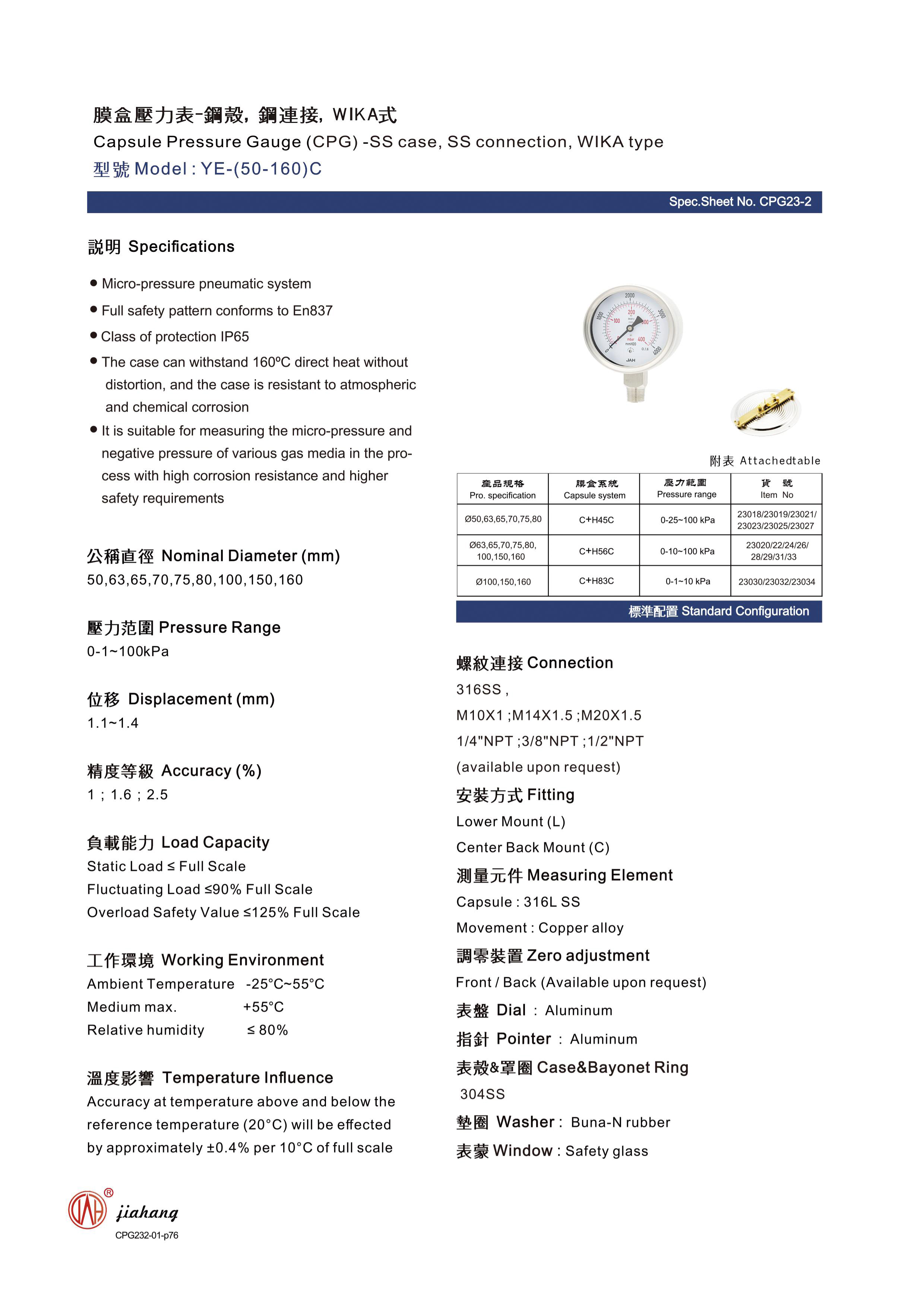

Capsule Pressure Gauge (CPG) -SS case, SS connection, WIKA typeYE-(50-160)C

●Micro-pressure pneumatic system

●Full safety pattern conforms to En837

●Class of protection IP65

●The case can withstand 160ºC direct heat without distortion, and the case is resistant to atmospheric and chemical corrosion

●It is suitable for measuring the micro-pressure and negative pressure of various gas media in the process with high corrosion resistance and higher safety requirements

CONTACT NOW down load to pdf

Details

Tags

PRODUCT SPECIFICATION

Model

YE-(50-160)C

Nominal Diameter (mm)
50,63,65,70,75,80,100,150,160

Pressure Range
0-1~100 kPa

Displacement (mm)
1.1~1.4

Accuracy (%)
1；1.6；2.5

Load Capacity
Static Load ≤ Full Scale
Fluctuating Load ≤ 90% Full Scale
Overload Safety Value ≤ 125% Full Scale

Working Environment
Ambient Temperature -25°C ~55°C
Medium max. +55°C
Relative humidity ≤ 80%

Temperature Influence
Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

STANDARD CONFIGURATION

Connection
316SS ,
M10X1 ;M14X1.5 ;M20X1.5
1/4"NPT ;3/8"NPT ;1/2"NPT
(available upon request)

Fitting
Lower Mount (L)
Center Back Mount (C)

Measuring Element
Capsule : 316L SS
Movement : Copper alloy

Zero adjustment
Front / Back (Available upon request)

Dial

Aluminum

Pointer

Aluminum

Case&Bayonet Ring
304SS

Washer

Buna-N rubber
