Capsule System(DCS)-Over-voltage protection -All copper type

●Full safety pattern conforms to En837
●It is suitable for measuring the micro-pressure and negative pressure of copper alloy without corrosion and explosion dangerous gas.

CONTACT NOW down load to pdf

Details

Tags

PRODUCT SPECIFICATION

Model

C+H 36/45/56/83G1

Nominal Diameter (mm)
36/45/56/83

Pressure Range
Item No：9001---C+H 36G1---0-10~100 kPa
Item No：9002---C+H 45G1---0-6~100 kPa
Item No：9003---C+H 56G1---0-2.5~100kPa
Item No：9004---C+H 83G1---0-0.4~10 kPa

Displacement (mm)
1.1~1.4

Accuracy (%)
1；1.6；2.5

Load Capacity
Static Load ≤ Full Scale
Fluctuating Load ≤ 90% Full Scale
Overload Safety Value ≤ 125% Full Scale

Working Environment
Ambient Temperature -25°C ~55°C
Medium max. +55°C
Relative humidity ≤ 80%

Tmperature Influence
Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

STANDARD CONFIGURATION

Measuring Element
Capsule : Beryllium copper
Movement : Copper alloy

Fitting
M10x1

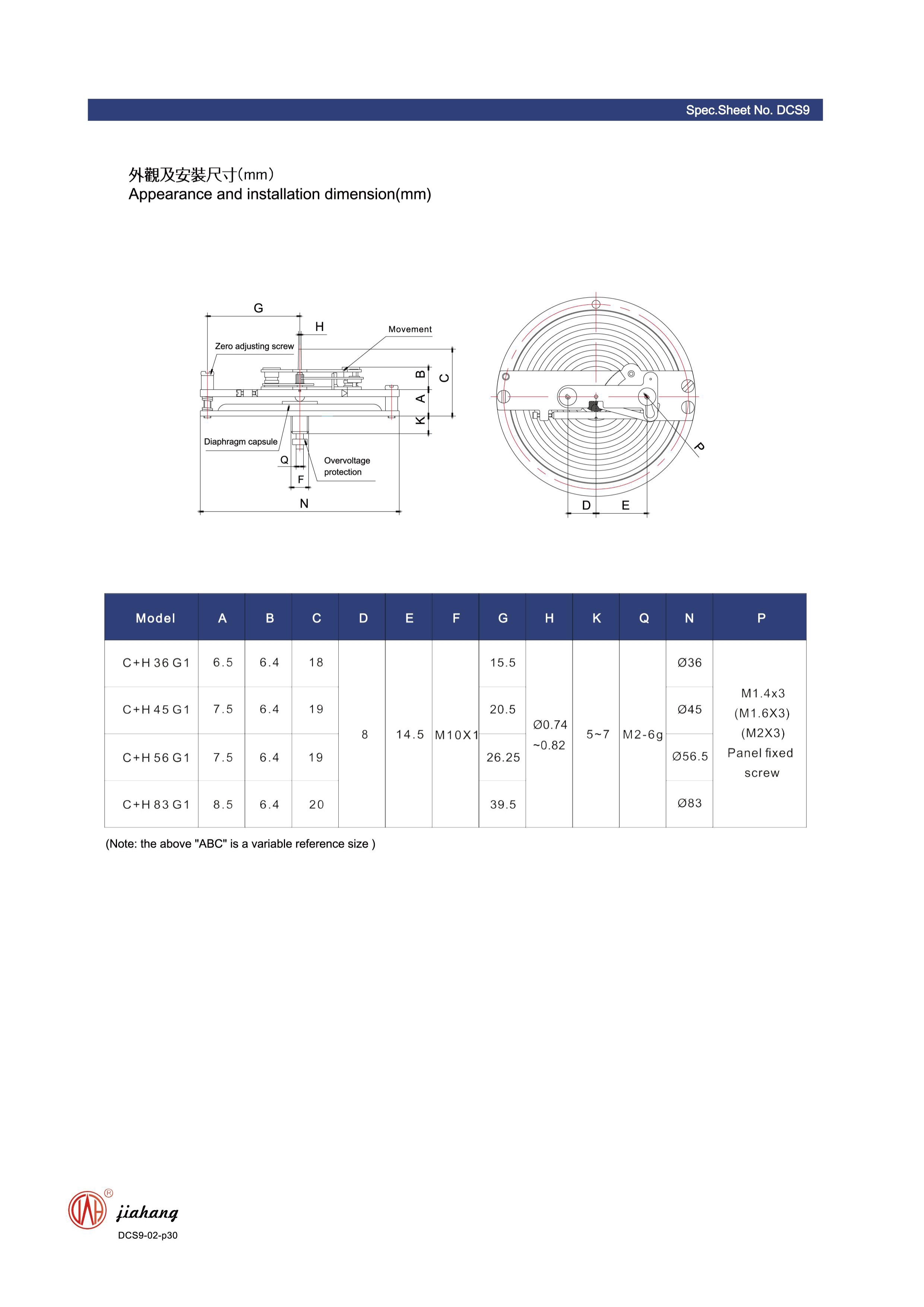

PICTURE DETAILS
