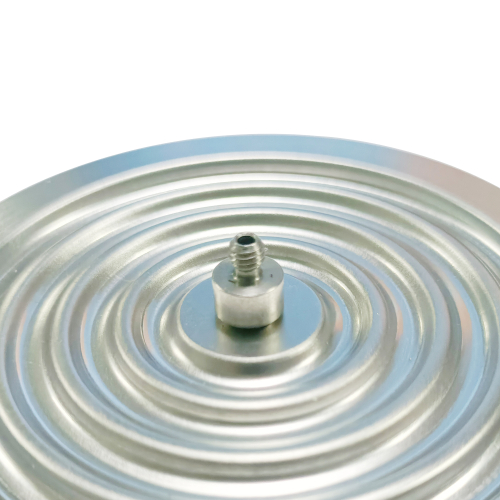

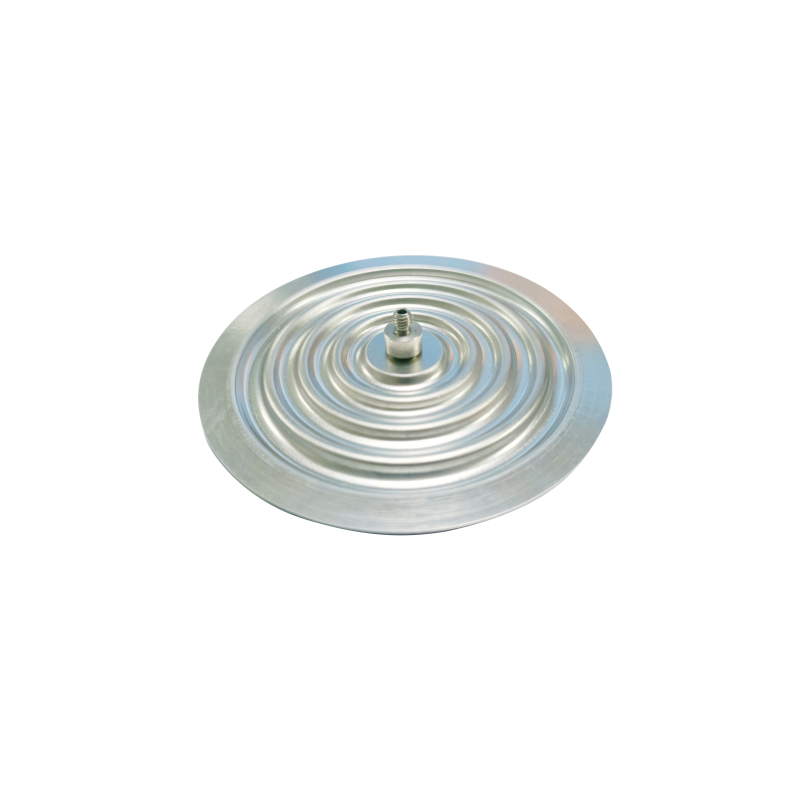

Diaphragm 45-All SS type

●Full safety pattern conforms to En837 ●It is suitable for measuring corrosive, non - solidification,non - crystallizing medium micro pressure, negative pressure or positive and negative pressure.Uses: diaphragm pressure gauge and pressure transmitter, etc


Model  :  C+H Ø75BS

Nominal Diameter  (mm)   :  75

Displacement (mm)  :  1.4±0.2

Accuracy Class(%)   :  1；1.6；2.5

Range  can  be  made

Item No：45001---C+H Ø75BS---0-10~250  kPa


down load to pdf

Details

Tags

PRODUCT SPECIFICATION

Model

C+H Ø75BS

Nominal Diameter  (mm)

75

Displacement (mm)

1.4±0.2

Accuracy Class(%)

1；1.6；2.5

Range  can  be  made

Item No：45001---C+H Ø75BS---0-10~250  kPa

Load Capacity

Static Load                  ≤ Full Scale

Fluctuating Load          ≤ 90% Full Scale

Overload Safety Value  ≤ 125% Full Scale

Working Environment

Ambient Temperature     -25°C ~ 55°C

Medium  max.               +55°C

Relative humidity           ≤ 80%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale



STANDARD CONFIGURATION



Measuring Element

316/L SS



Connection

M3.5 (Sealing ring connection)



PICTURE DETAILS

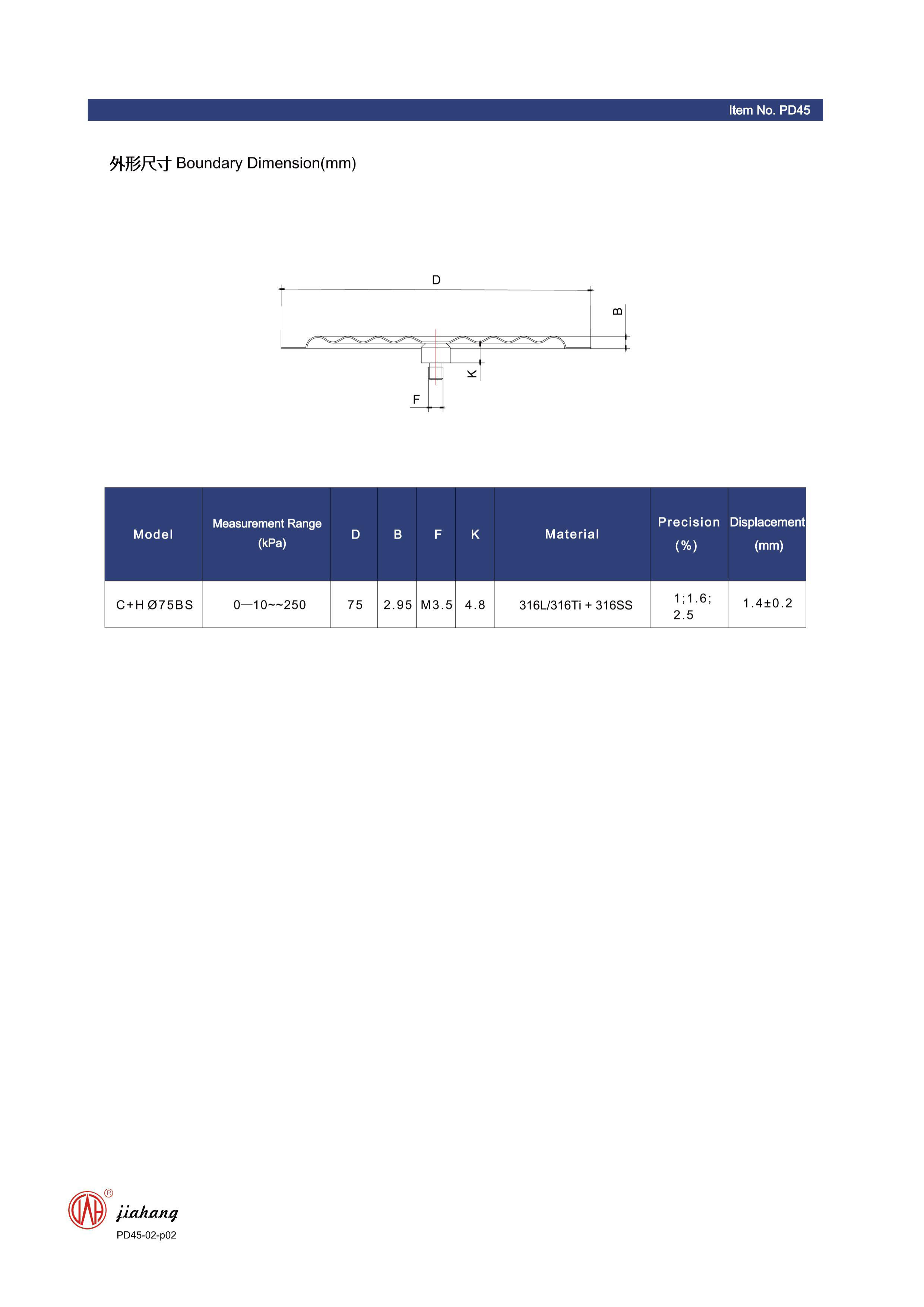

APPEARANCE AND INSTALLATION DIMENSION(MM)
