Diaphragm 46-All SS type


  • ●Full safety pattern conforms to En837

●It is suitable for measuring corrosive, non - solidification,non - crystallizing medium micro pressure, negative pressure or  positive and negative pressure.

Uses: diaphragm pressure gauge and pressure transmitter, etc


down load to pdf

Details

Tags

PRODUCT SPECIFICATION



Model

C+H Ø130BS



Nominal Diameter  (mm)

130



Displacement (mm)

1.35±0.15



Accuracy Class(%)

1；1.6；2.5



Range  can  be  made

Item No：46001---C+H Ø130BS---0-1.6~40  kPa



Load Capacity

Static Load                    ≤ Full Scale

Fluctuating Load           ≤ 90% Full Scale

Overload Safety Value  ≤ 125% Full Scale



Working Environment

Ambient Temperature     -25°C ~ 55°C

Medium  max.                +55°C

Relative humidity            ≤ 80%



Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale



STANDARD CONFIGURATION



Measuring Element

316/L SS



Connection

M3.5 (Sealing ring connection)



PICTURE DETAILS

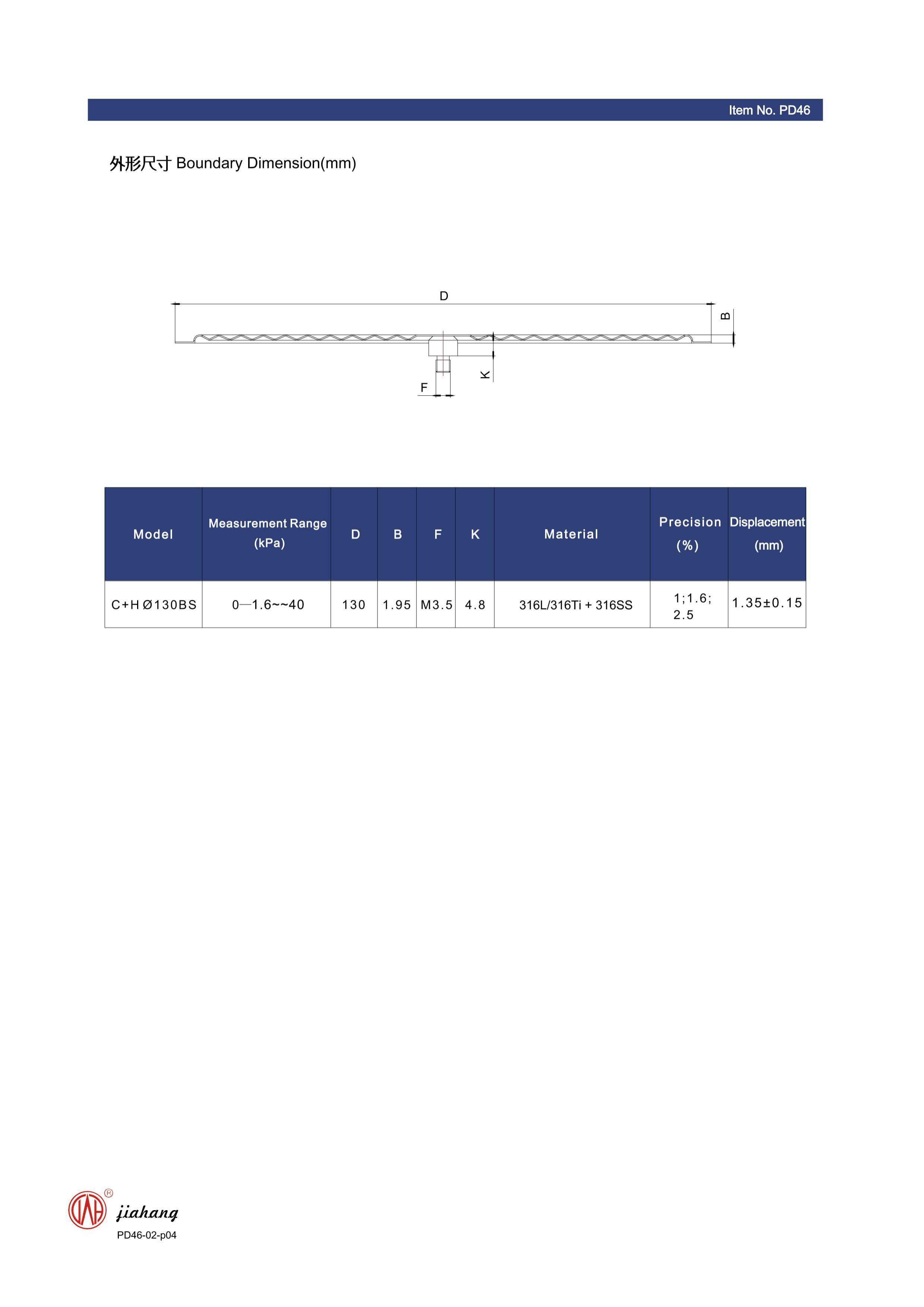

APPEARANCE AND INSTALLATION DIMENSION(MM)
