Diaphragm Capsule-100(DJ)All SS type

●Full safety pattern conforms to En837 ●It is suitable for measuring the micro-pressure and negative pressure of various gas media in the process of high corrosion resistance.


Model  :  C+H Ø100B(DJ)

Nominal Diameter (mm)  :  100

Displacement (mm)  :  1.1~1.4

Accuracy Class(%)  :  2.5

Pressure Range  :  Item No-2001(DJ)---0~1kPa




down load to pdf

Details

Tags

PRODUCT SPECIFICATION

Model

C+H Ø100B(DJ)

Nominal Diameter (mm)

100

Displacement (mm)

1.1~1.4

Accuracy Class(%)

2.5

Pressure Range

Item No：2001(DJ)---0~1kPa

Load Capacity

Static Load                      ≤ Full Scale

Fluctuating Load             ≤ 90% Full Scale

Overload Safety Value    ≤ 125% Full Scale

Working Environment

Ambient Temperature     -25°C ~ 55°C

Medium  max.                +55°C

Relative humidity            ≤ 80%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale



STANDARD CONFIGURATION



Measuring Element
316/L SS

Connection
2-M5 (Sealing ring connection)



PICTURE DETAILS

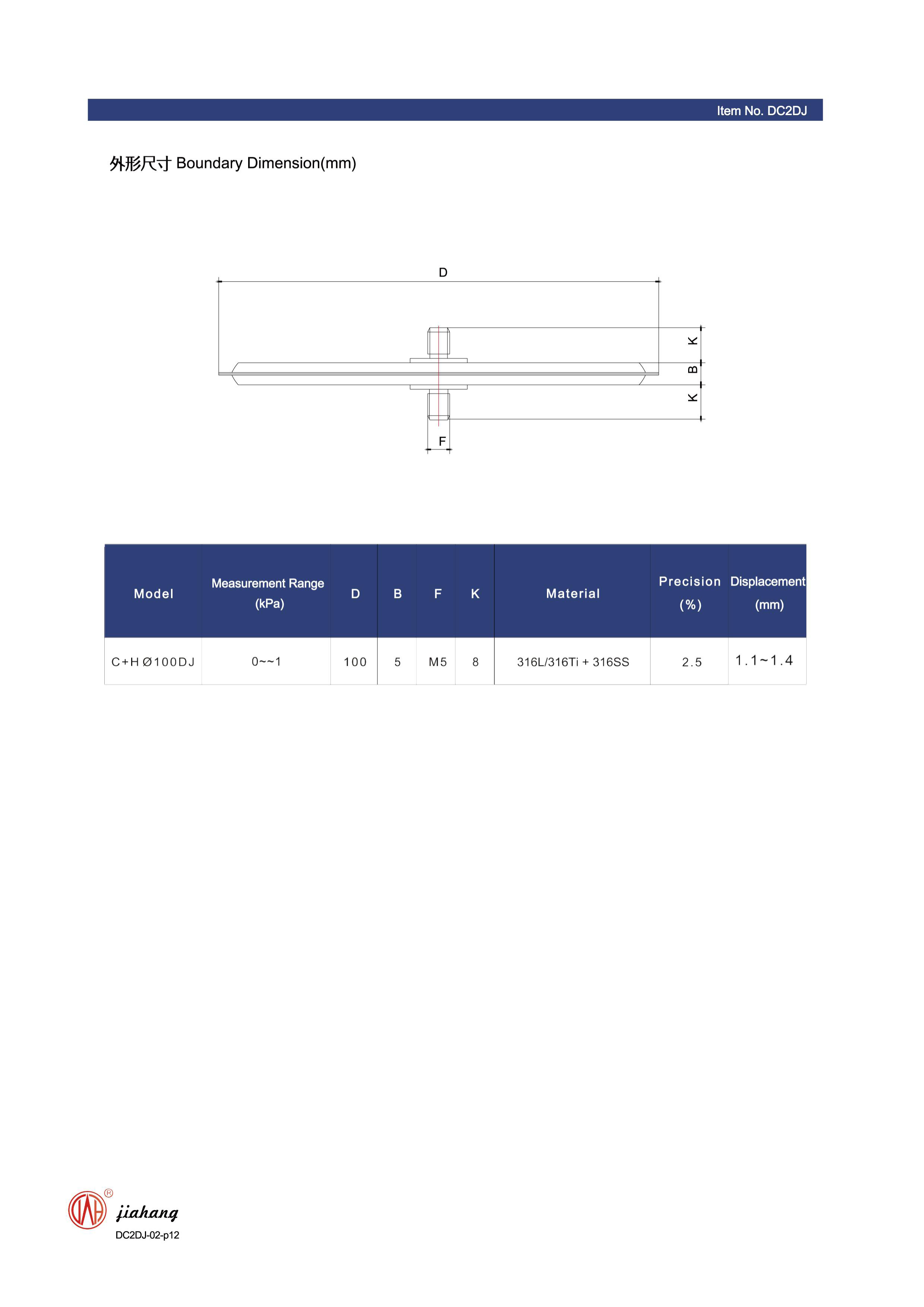

APPEARANCE AND INSTALLATION DIMENSION(MM)
