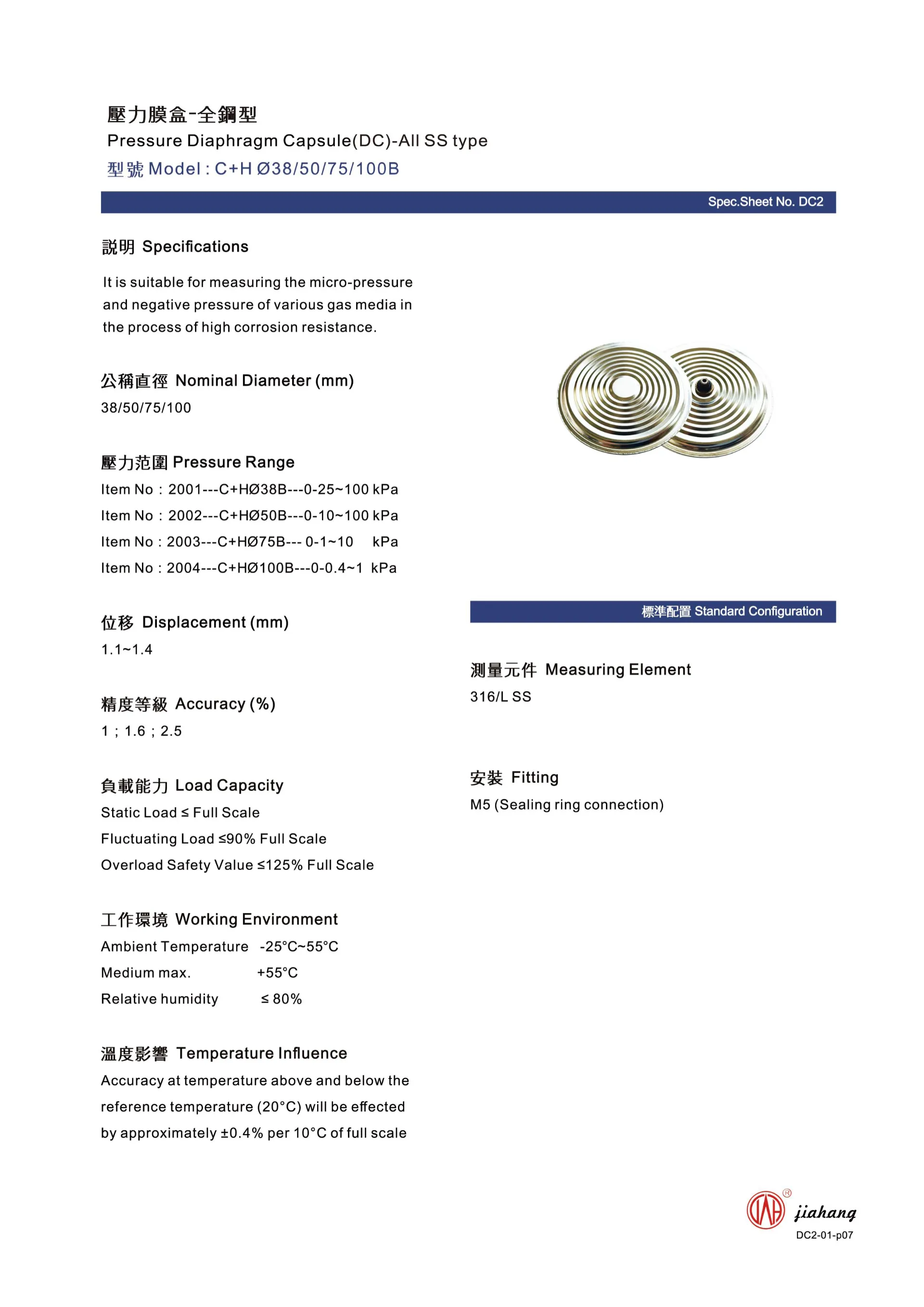

Model

C+H Ø38/50/75/100B

Nominal  Diameter  (mm)

38、50、75 & 100

Displacement (mm)

1.1~1.4

Accuracy Class(%)

1；1.6；2.5

Range can be made

Item  No：2001---C+H Ø38B---0-25~100 kPa

Item  No：2002---C+H Ø50B---0-10~100 kPa

Item  No：2003---C+H Ø75B---0-1~10     kPa

Item  No：2004---C+H Ø100B---0-0.6~10kPa

Load Capacity

Static Load                    ≤ Full Scale

Fluctuating Load           ≤ 90% Full Scale

Overload Safety Value  ≤ 125% Full Scale

Working Environment

Ambient Temperature     -25°C ~ 55°C

Medium  max.                +55°C

Relative humidity            ≤ 80%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Measuring Element

316/L SS

Connection

M5 (Sealing ring connection)
