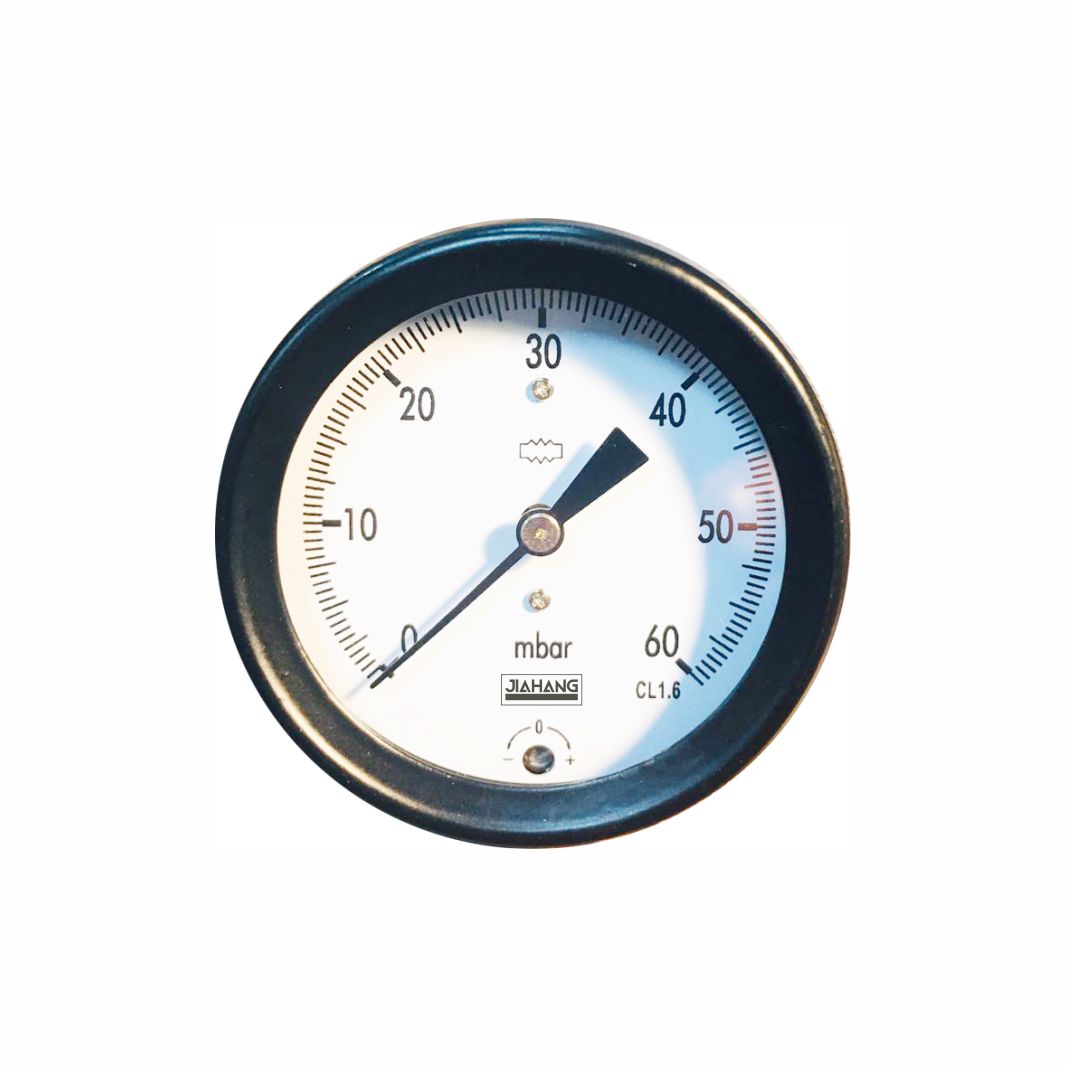

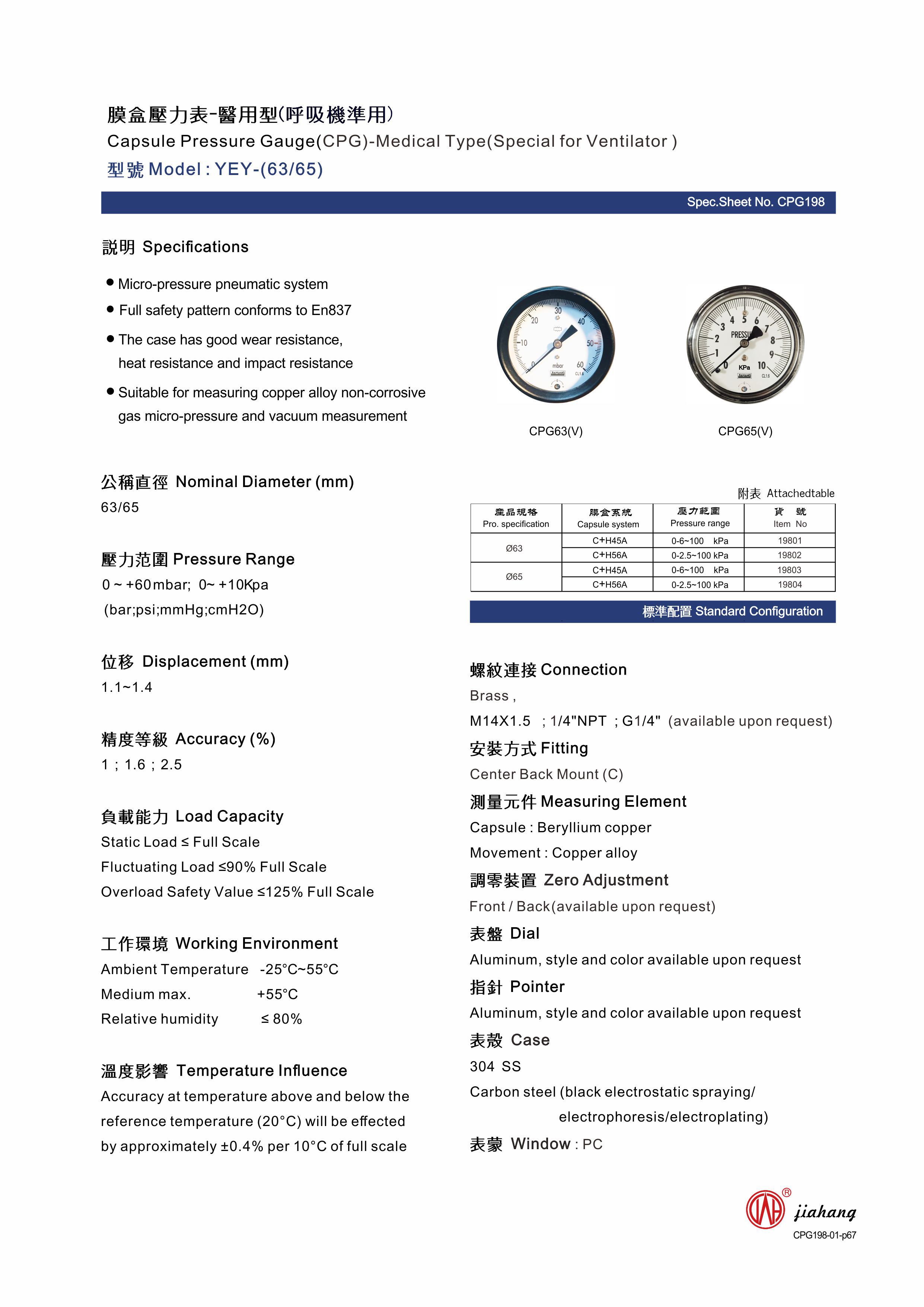

Model

YEY-(63/65)

Nominal Diameter (mm)
63/65

Pressure Range
0 ~ +60 mbar ; 0 ~ +10 Kpa
(bar; psi; mmHg; cmH2O)

Displacement (mm)
1.1~1.4

Accuracy (%)
1；1.6；2.5

Load Capacity
Static Load ≤ Full Scale
Fluctuating Load ≤ 90% Full Scale
Overload Safety Value ≤ 125% Full Scale

Working Environment
Ambient Temperature -25°C ~55°C
Medium max. +55°C
Relative humidity ≤ 80%

Temperature Influence
Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Connection
Brass ,
M14X1.5 ; 1/4"NPT ; G1/4" (available upon request)

Fitting

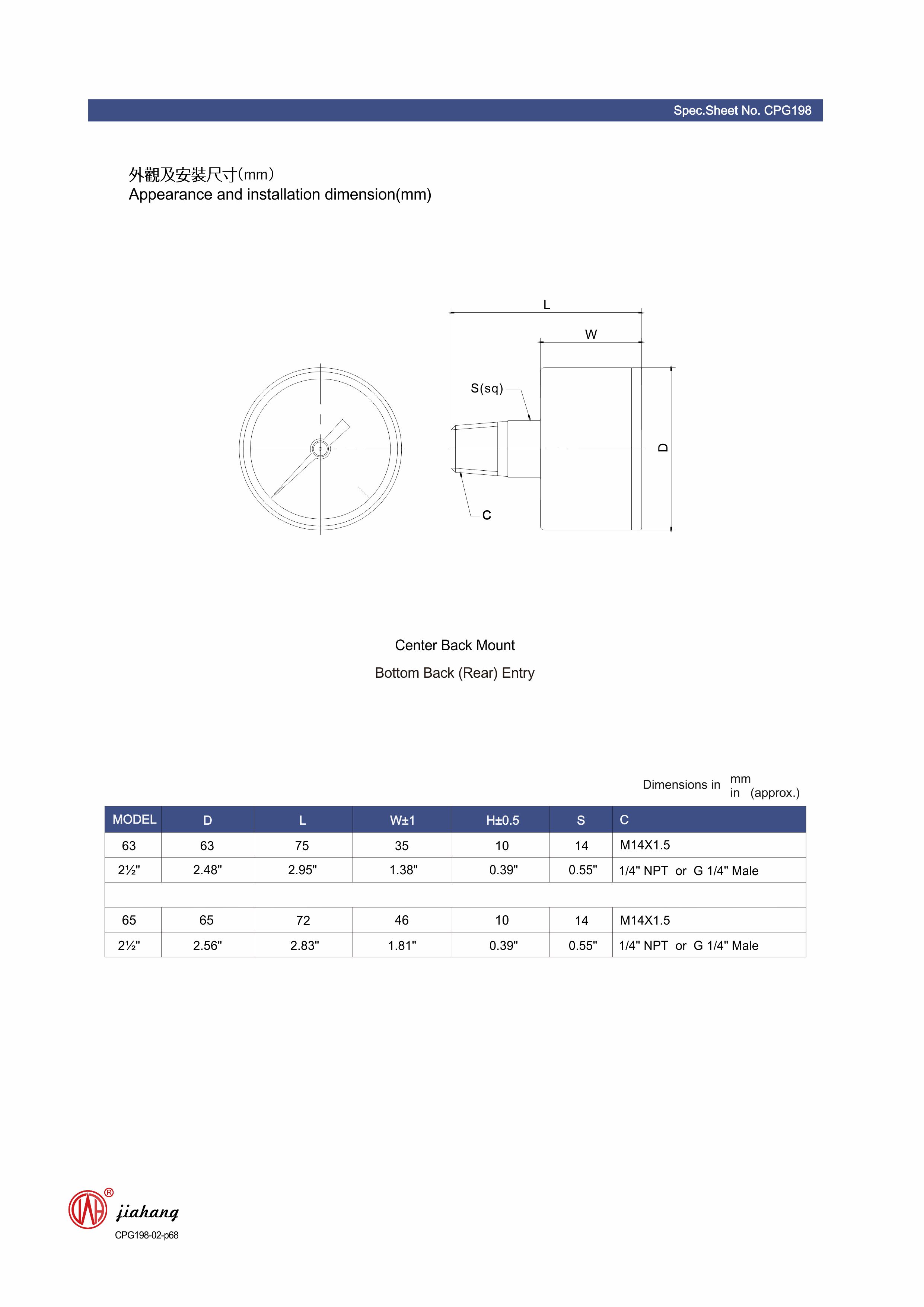

Center Back Mount (C)

Measuring Element
Capsule : Beryllium copper
Movement : Copper alloy

Zero Adjustment
Front / Back(available upon request)

Dial
Aluminum, style and color available upon request

Pointer
Aluminum, style and color available upon request

Case
304 SS
Carbon steel (black electrostatic spraying/electrophoresis/electroplating)

Window

PC
