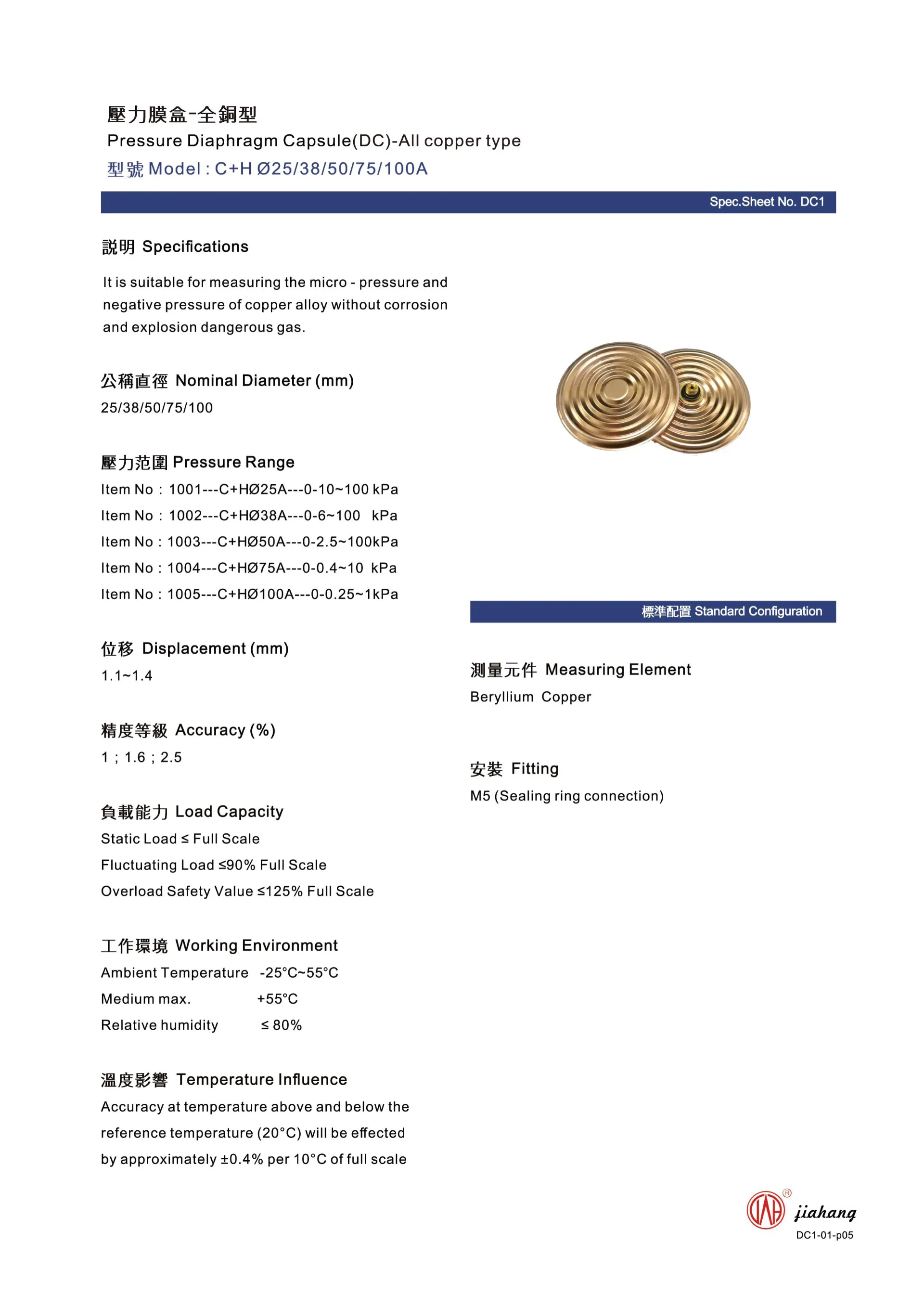

Model

C+H Ø25/38/50/75/100

Nominal  Diameter  (mm)

25、38、50、75 & 100

Displacement (mm)

1.1~1.4

Accuracy Class(%)

1；1.6；2.5

Range can be made

Item No：1001---C+H Ø25---0-10~100  kPa

Item No：1002---C+H Ø38---0-6~100    kPa

Item No：1003---C+H Ø50---0-2.5~100 kPa

Item No：1004---C+H Ø75---0-0.4~10   kPa

Item No：1005---C+H Ø100---0-0.6~10 kPa

Load Capacity

Static Load                      ≤ Full Scale

Fluctuating Load             ≤ 90% Full Scale

Overload Safety Value    ≤ 125% Full Scale

Working Environment

Ambient Temperature     -25°C ~ 55°C

Medium  max.                +55°C

Relative humidity            ≤ 80%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Measuring Element

Beryllium Copper

Connection

M5 (Sealing ring connection)
