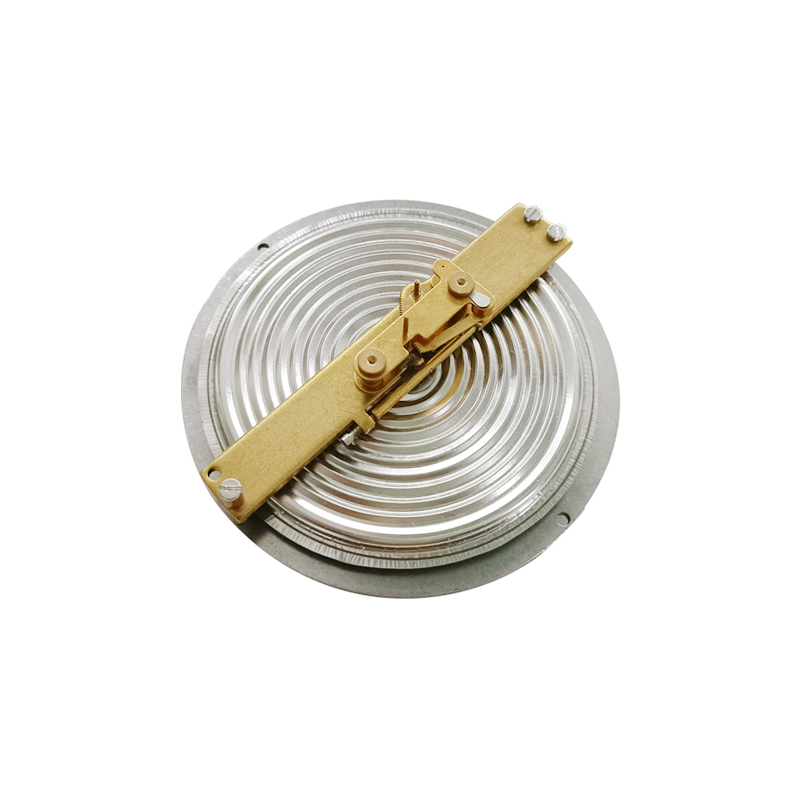

Model

C+H 83A2/B2/C2

Nominal  Diameter  (mm)

83

Displacement (mm)

1.1~1.4

Accuracy Class(%)

1.6；2.5

Range can be made

Item  No：42001---C+H 83A2---0-250/400/600/1000Pa

Item  No：42002---C+H 83B2---1000Pa

Item  No：42003---C+H 83C2---1000Pa

Load Capacity

Static Load                       ≤ Full Scale

Fluctuating Load              ≤ 90% Full Scale

Overload Safety Value     ≤ 125% Full Scale

Working Environment

Ambient Temperature      -25°C ~ 55°C

Medium  max.                  +55°C

Relative humidity             ≤ 80%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Measuring Element

Capsule :     A2- Beryllium Copper         B2/C2 - 316L SS
Movement : A2/C2- Copper alloy           B2 - 316 SS

Connection

M5 (Sealing ring connection)
