Model

C+H 36/45/56/83A

Nominal  Diameter  (mm)

36、45、56 & 83

Displacement (mm)

1.1~1.4

Accuracy Class(%)

1；1.6；2.5

Range can be made

Item  No：3001---C+H 36A---0-10~100 kPa

Item  No：3002---C+H 45A---0-6~100   kPa

Item  No：3003---C+H 56A---0-2.5~100kPa

Item  No：3004---C+H 83A---0-0.4~10  kPa

Load Capacity

Static Load                    ≤ Full Scale

Fluctuating Load           ≤ 90% Full Scale

Overload Safety Value  ≤ 125% Full Scale

Working Environment

Ambient Temperature     -25°C ~ 55°C

Medium  max.                +55°C

Relative humidity            ≤ 80%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

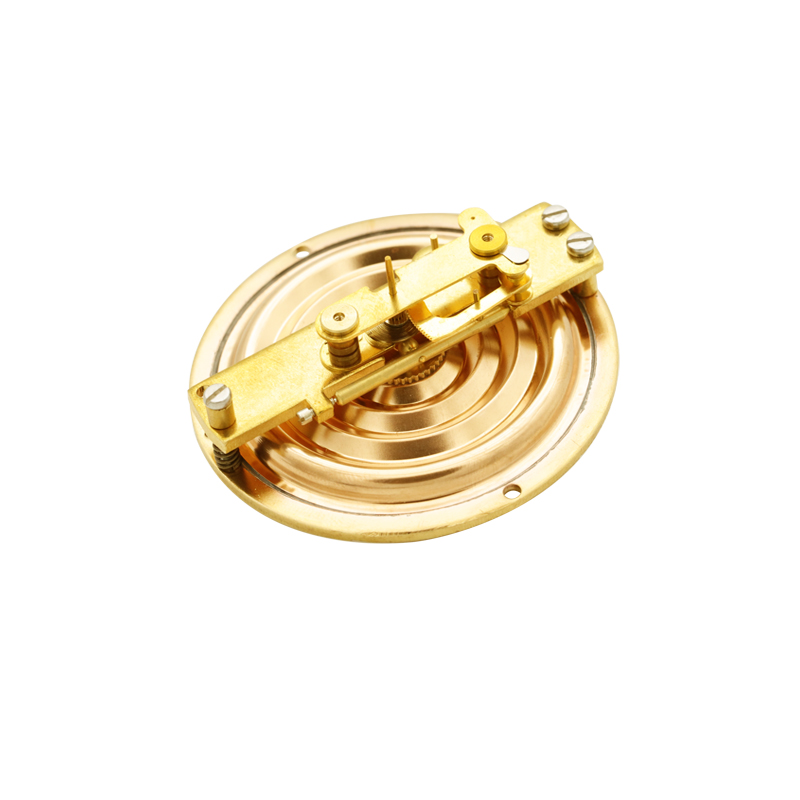

Measuring Element

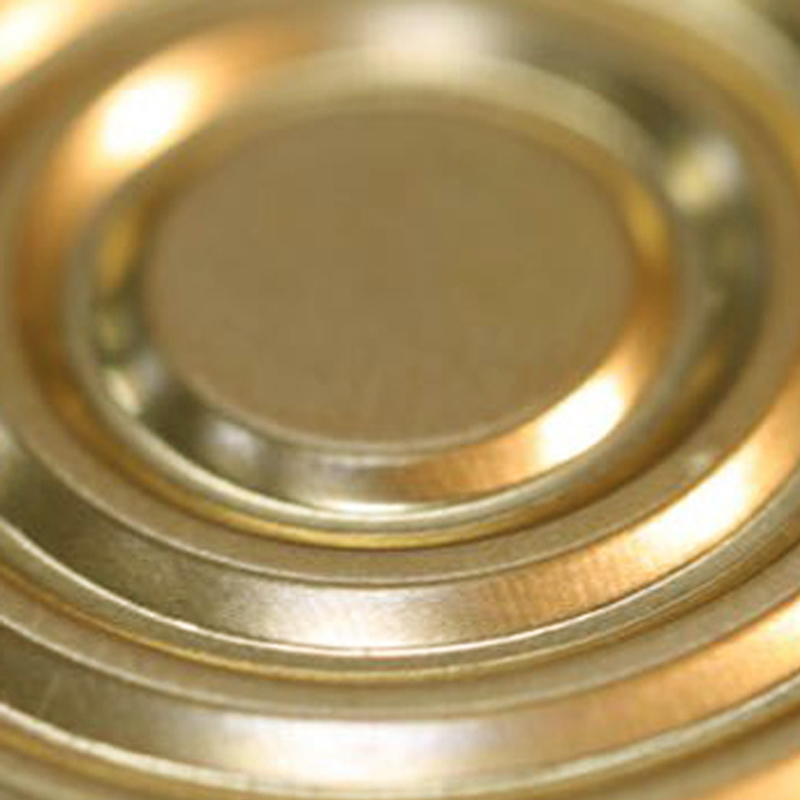

Diaphragm : Beryllium copper
Movement : Copper alloy

Connection

M5 (Sealing ring connection)
