Model

YCC-80.03(851.3)

Nominal  Diameter  (mm)

80

Accuracy  Class(%)

2.5; 3.0, 3.5, 4.0, other grades are available upon request

Range  can  be  made

Item  No：20003---0-0.4~10bar

Load Capacity

Static Load                     ≤ Full Scale

Fluctuating Load            ≤ 90% Full Scale

Overload Safety Value   ≤ 125% Full Scale

Pressure safety value     ≤ 150% Full Scale

Working Environment

Ambient Temperature     -25°C ~ 55°C

Medium  max.                 +55°C

Relative humidity            45~75%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

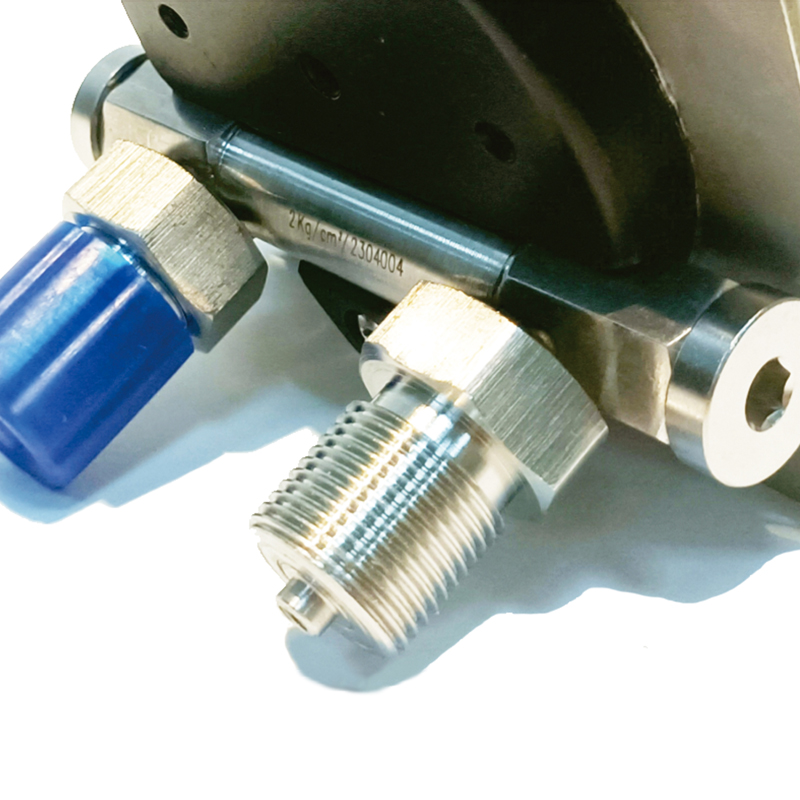

Threaded Joint Connection

316  SS , Male screw  M20X1.5   (Available upon request)

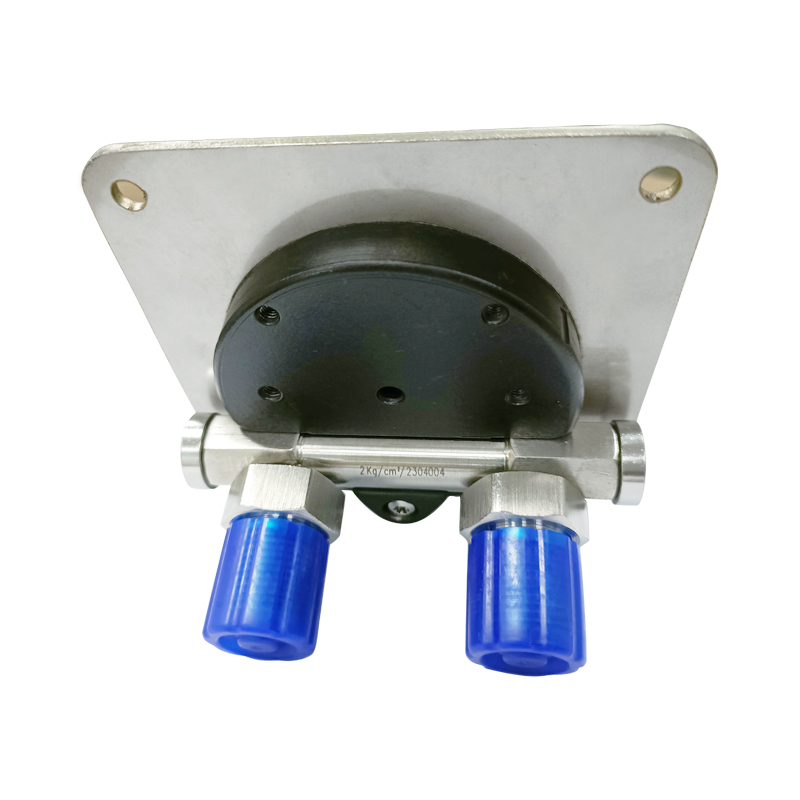

Fitting

Center Back Mount (C)

Positive air intake : left in and right out, high pressure on the left, low pressure on the right

Reverse air intake : right in and left out, high pressure on the right, left Low voltage

Pressure Element

Pressure spring : 316 SS

Magnetic piston

Magnet : Ferrite

piston：316 SS

Zero adjustment

Zero in front of window ,  H62 electroplate

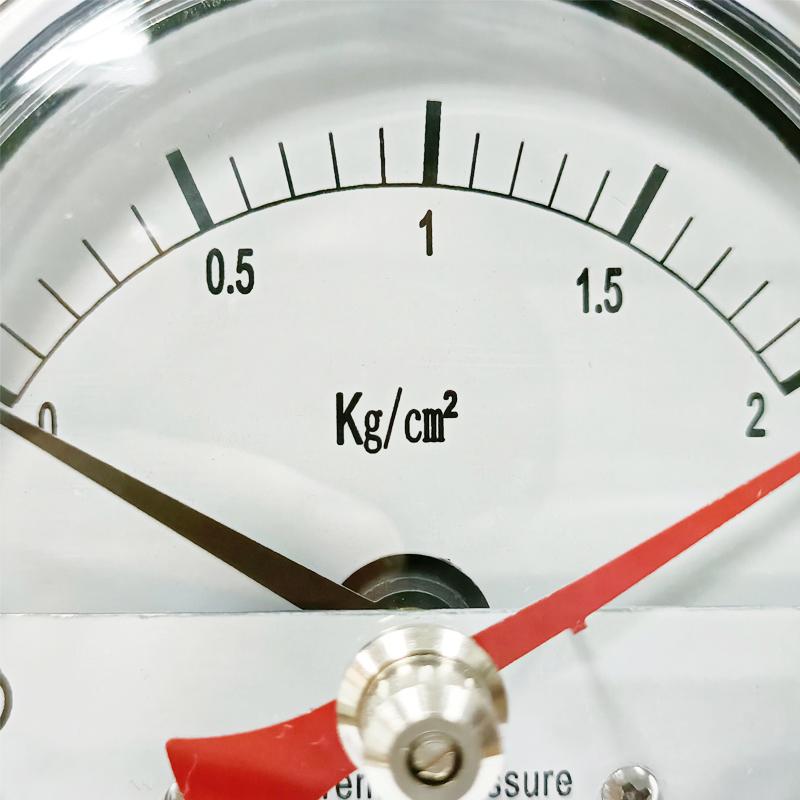

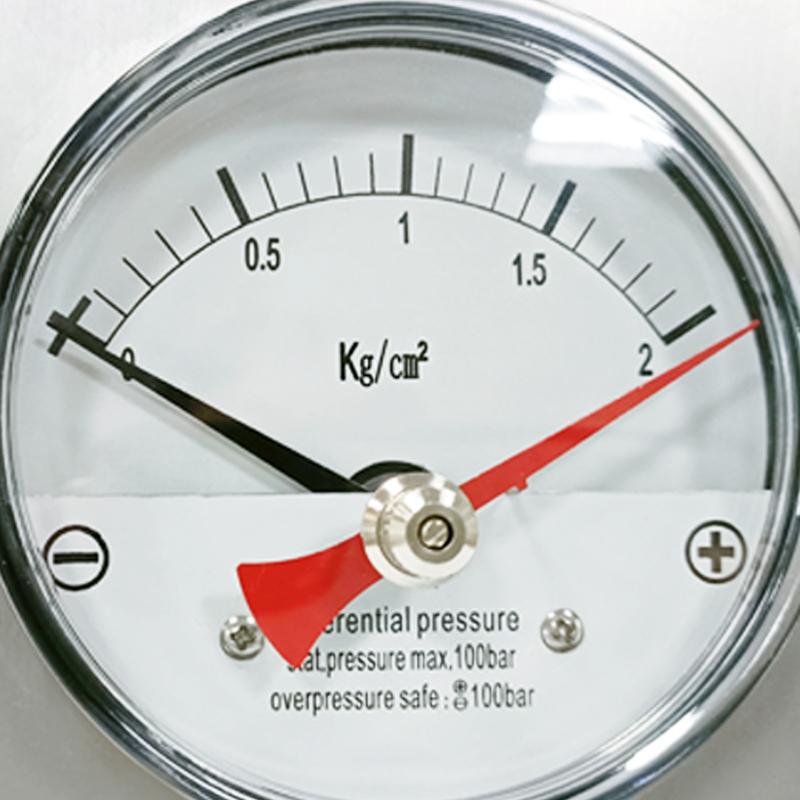

Dial

Aluminum, style and color available upon request

Pointer

Aluminum, Black pressure pointer+ red memory pointer

Case

Aluminum alloy - Die casting,black

Window

PC

•

  Calibration clear

  High precision accuracy

•

  Portable installation、  safe & reliable

•

  Well-made、 Zero adjustment、 Red pointer with memory function

•

  316 / L SS Connection、  Good air tightness & corrosion resistance
