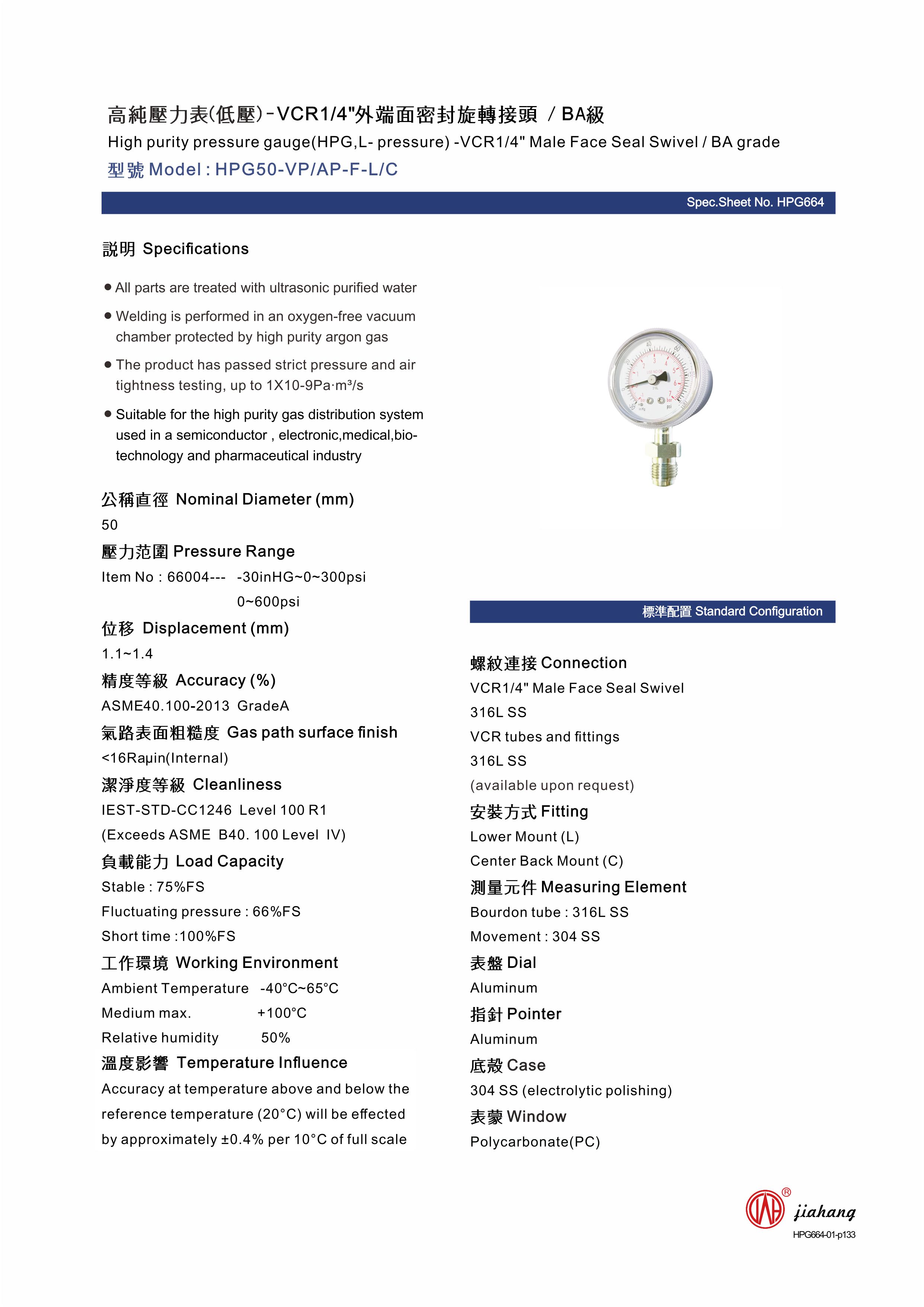

Model

HPG50-VP/AP-F-L/C

Nominal Diameter (mm)
50

Pressure Range
Item No：66004--- -30inHG~0~300psi / 0~600psi

Displacement (mm)
1.1~1.4

Accuracy (%)
ASME 40.100-2013 GradeA

Gas path sur face finish
< 16Ra µin (Internal)

Cleanliness
IEST-STD-CC1246 Level 100 R1
(Exceeds ASME B40. 100 Level IV)

Load Capacity
Stable                         75% FS
Fluctuating pressure   66% FS
Short time                  100% FS

Working Environment
Ambient Temperature   -40°C ~65°C
Medium max.               +100°C
Relative humidity          50%

Temperature Influence
Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Connection
VCR1/4" Male Face Seal Swivel
316L SS
VCR tubes and fittings
316L SS
(available upon request)

Fitting

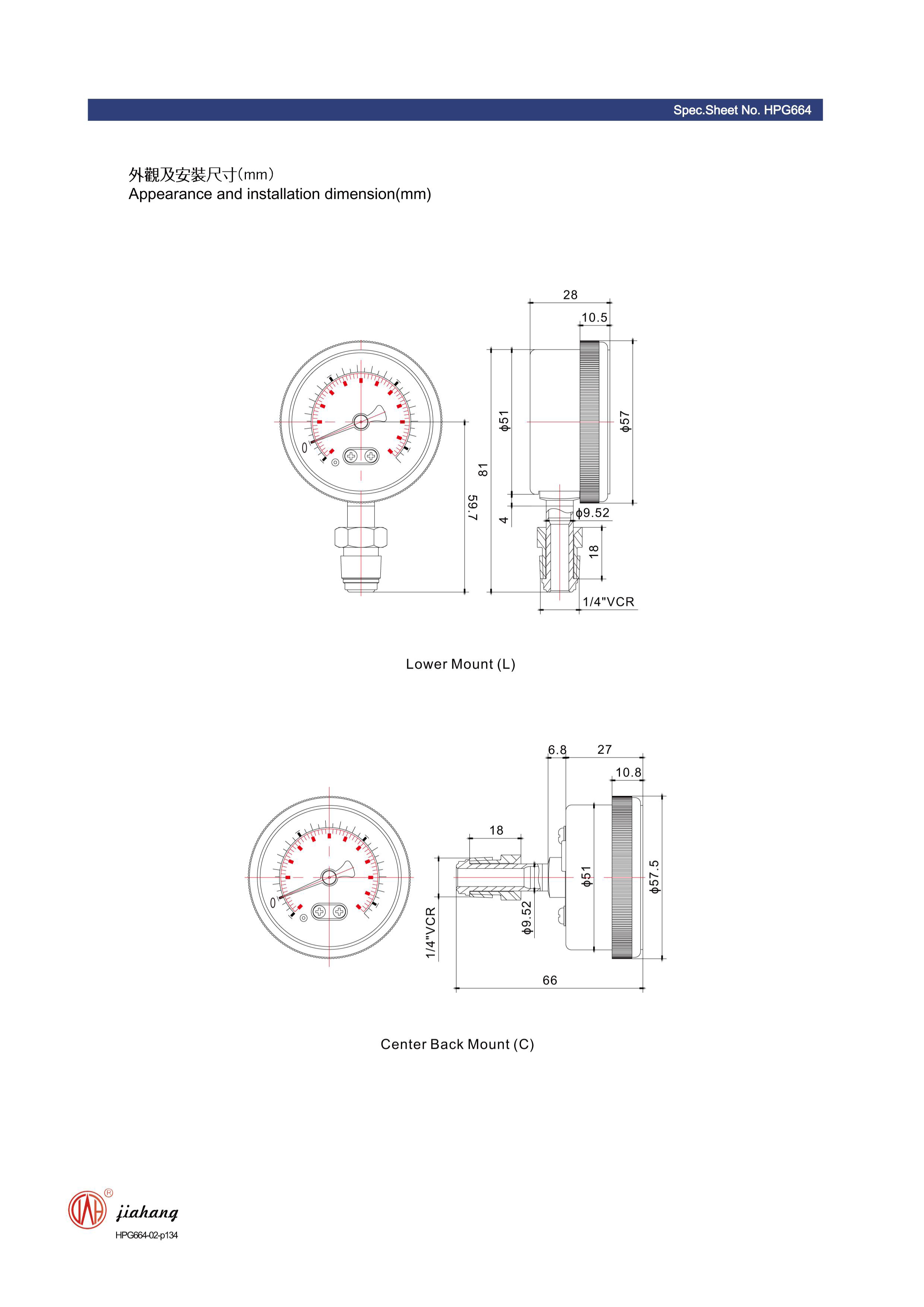

Lower Mount (L)
Center Back Mount (C)

Measuring Element
Bourdon tube : 316L SS
Movement : 304 SS

Dial
Aluminum

Pointer
Aluminum

Case
304 SS (electrolytic polishing)

Window
Polycarbonate(PC)
