Pressure Diaphragm Capsule System -anti-seismic all SS

●Full safety pattern conforms to En837 ●It is suitable for measuring the micro-pressure and negative pressure of various gas media in the process of high corrosion resistance.

Model : C+H 45/56/83E

Nominal Diameter (mm) : 45/56/83

Displacement (mm) : 1.1~1.4

Accuracy (%) : 1；1.6；2.5

Pressure Range
Item No：7001---C+H 45E---0-25~100kPa
Item No：7002---C+H 56E---0-10~100kPa
Item No：7003---C+H 83E---0-1~10 kPa

CONTACT NOW down load to pdf

Details

Tags

PRODUCT SPECIFICATION

Model

C+H 45/56/83ENominal Diameter (mm)
45/56/83

Displacement (mm)
1.1~1.4

Accuracy (%)
1；1.6；2.5

Pressure Range
Item No：7001---C+H 45E---0-25~100kPa
Item No：7002---C+H 56E---0-10~100kPa
Item No：7003---C+H 83E---0-1~10 kPa

Load Capacity
Static Load ≤ Full Scale
Fluctuating Load ≤ 90% Full Scale
Overload Safety Value ≤ 125% Full Scale

Working Environment
Ambient Temperature -25°C ~55°C
Medium max. +55°C
Relative humidity ≤ 80%

Tmperature Influence
Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

STANDARD CONFIGURATION

Measuring Element
Capsule : 316L SS
Movement : 316 SS

Fitting
M5 (Sealing ring connection)

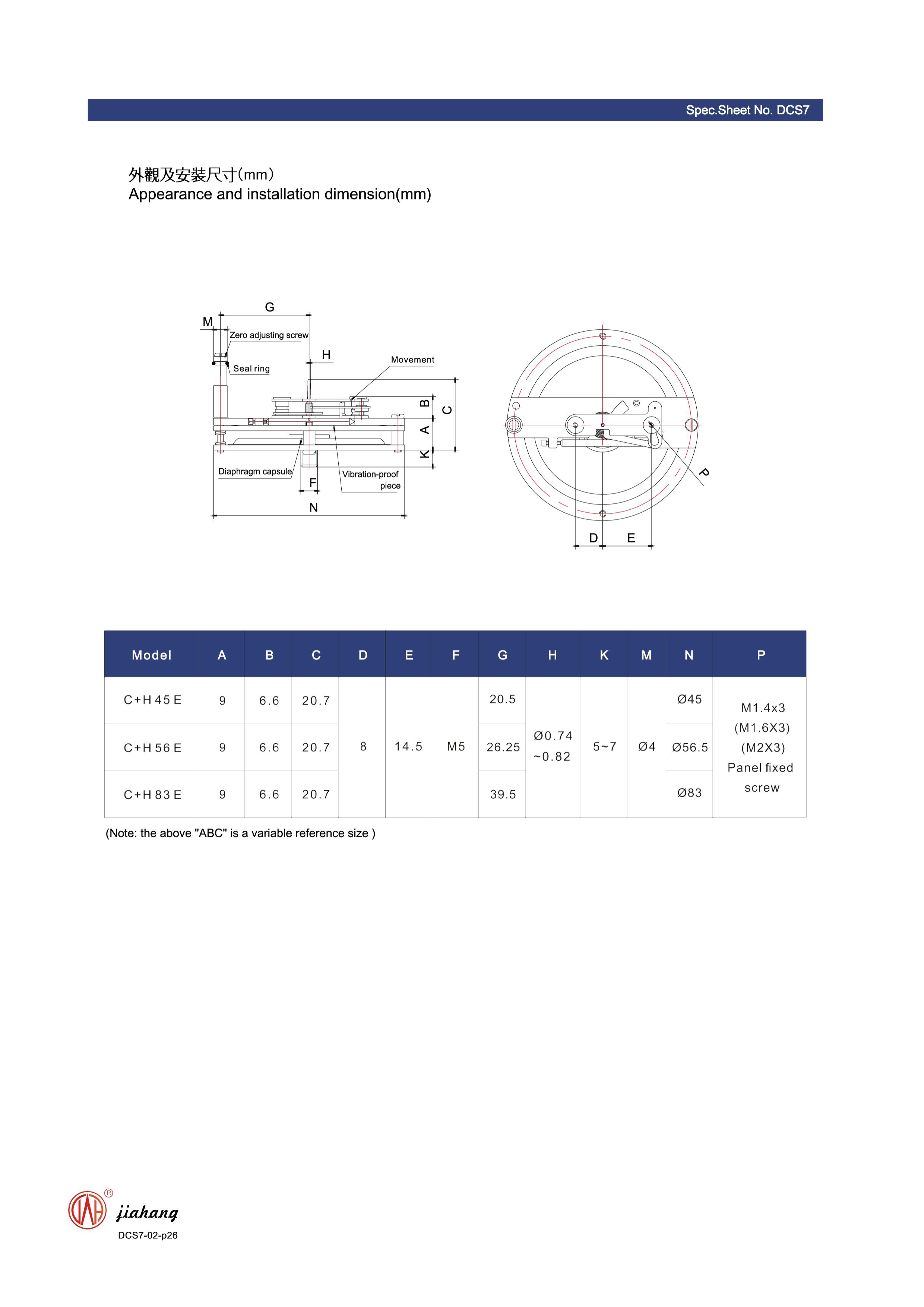

PICTURE DETAILS
