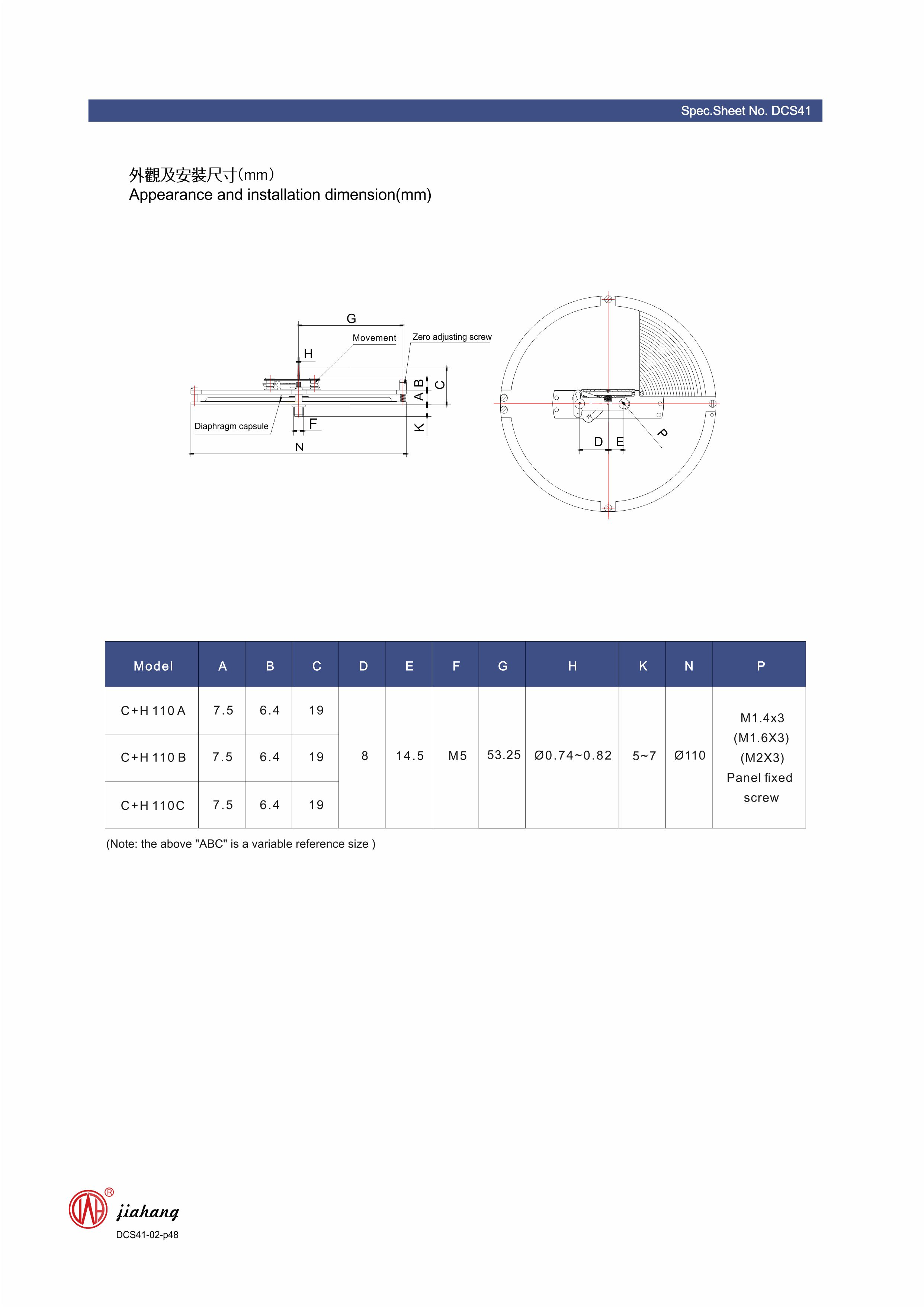

Model

C+H 110A/B/C

Nominal Diameter (mm)
110

Pressure Range
Item No：41001---C+H 110A---0-250/400/600 Pa
Item No：41002---C+H 110B---0-400/600/1000Pa
Item No：41003---C+H 110C---0-400/600/1000Pa

Displacement (mm)
1.1~1.4

Accuracy (%)
1.6；2.5

Load Capacity
Static Load ≤ Full Scale
Fluctuating Load ≤ 90% Full Scale
Overload Safety Value ≤ 125% Full Scale

Working Environment
Ambient Temperature  -25°C ~55°C
Medium max.              +55°C
Relative humidity        ≤ 80%

Temperature Influence
Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Measuring Element
Capsule : A - Beryllium Copper  B/C - 316L SS
Movement : A/C- Copper alloy   B - 316 SS

Fitting
M5 (Sealing ring connection)
