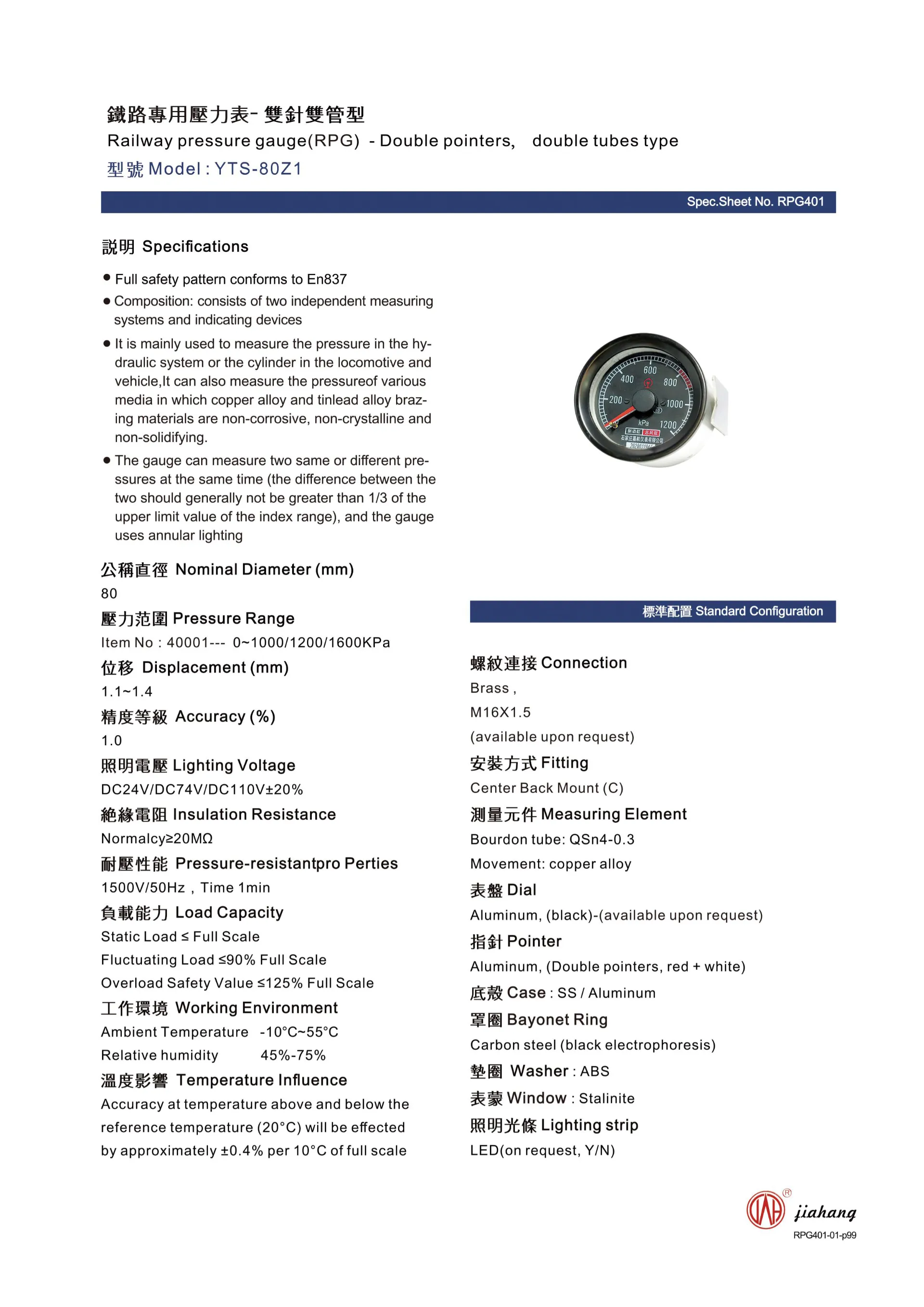

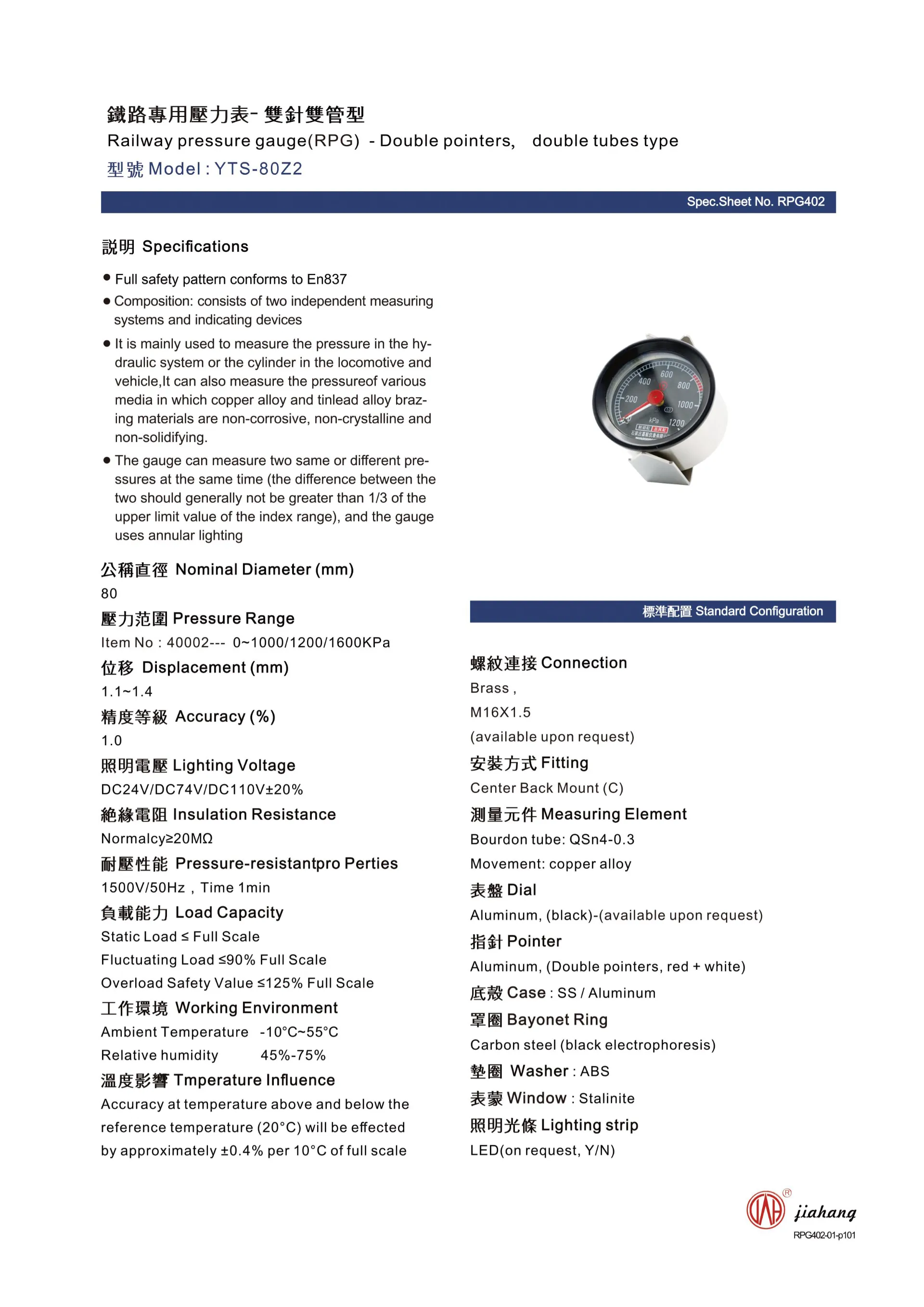

Model

YTS-80Z1/Z2/Z3

Nominal  Diameter  (mm)

80

Displacement (mm)

1.1~1.4

Accuracy Class(%)

1.0

Pressure Range

Item No : 40001/02/03---  0~1000/1200/1600KPa

Load Capacity

Static Load                      ≤ Full Scale

Fluctuating Load             ≤ 90% Full Scale

Overload Safety Value    ≤ 125% Full Scale

Lighting Voltage
DC24V/DC74V/DC110V±20%

Insulation Resistance
Normalcy≥20MΩ

Pressure-resistant pro Perties
1500V/50Hz，Time 1min

Working Environment

Ambient Temperature      -10°C ~ +55°C

Relative humidity            45%-75%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Connection
Brass ,
M16X1.5
(available upon request)

Fitting
Center Back Mount (C)

Measuring Element
Bourdon tube: QSn4-0.3
Movement: copper alloy

Dial
Aluminum, (Black)

Pointer
Aluminum, (Double pointers, red + white)

Case
SS / Aluminum

Bayonet Ring
Carbon steel (black electrophoresis)

Washer
ABS

Window
Stalinite

Lighting strip
LED(on request, Y/N)
