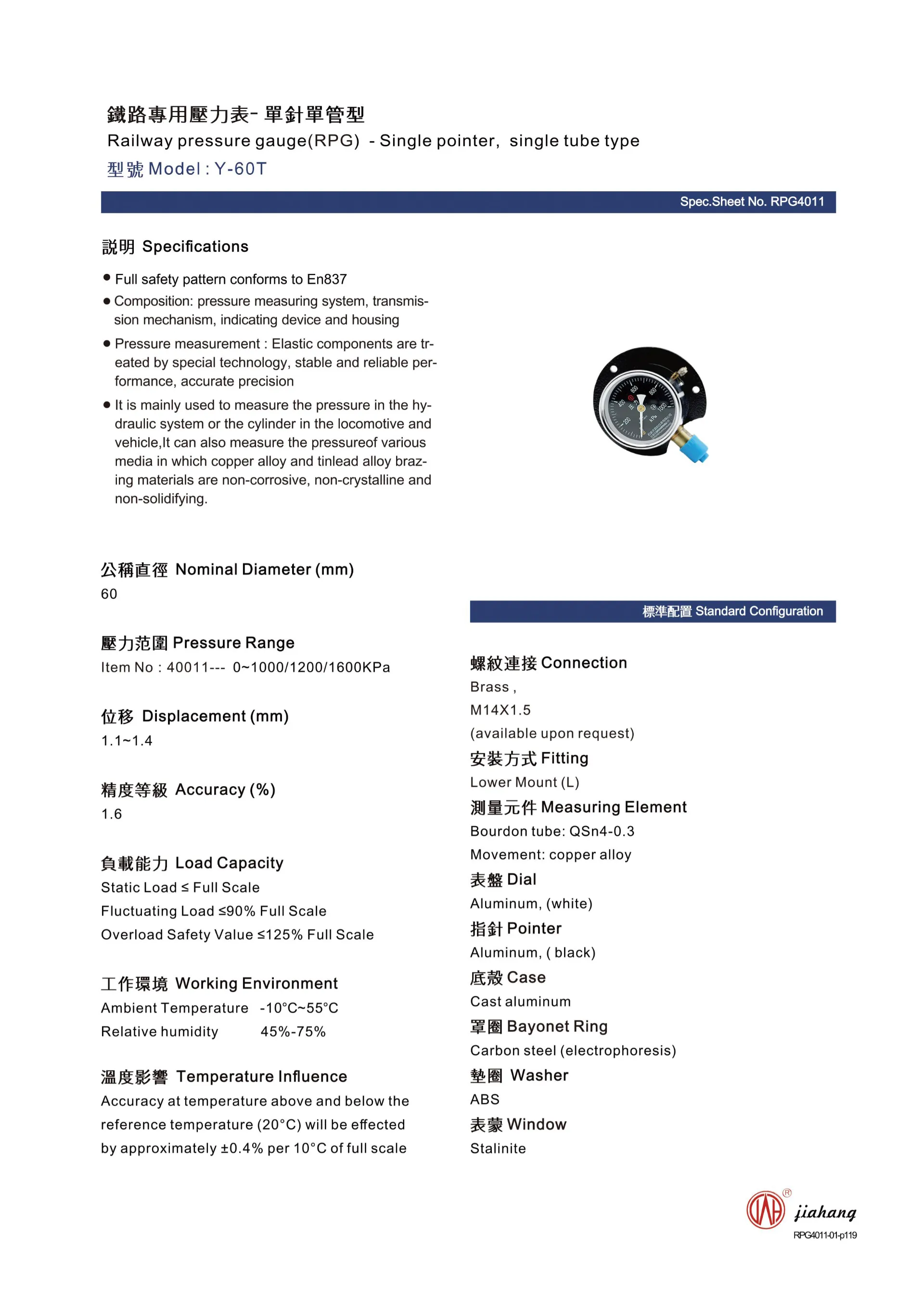

Model

Y-60T

Nominal  Diameter  (mm)

60

Displacement (mm)

1.1~1.4

Accuracy Class(%)

1.6

Pressure Range

Item No : 40011---   0~1000/1200/1600KPa

Load Capacity

Static Load                      ≤ Full Scale

Fluctuating Load             ≤ 90% Full Scale

Overload Safety Value    ≤ 125% Full Scale

Working Environment

Ambient Temperature      -10°C ~ +55°C

Relative humidity             45%-75%

Temperature Influence

Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

Connection
Brass ,

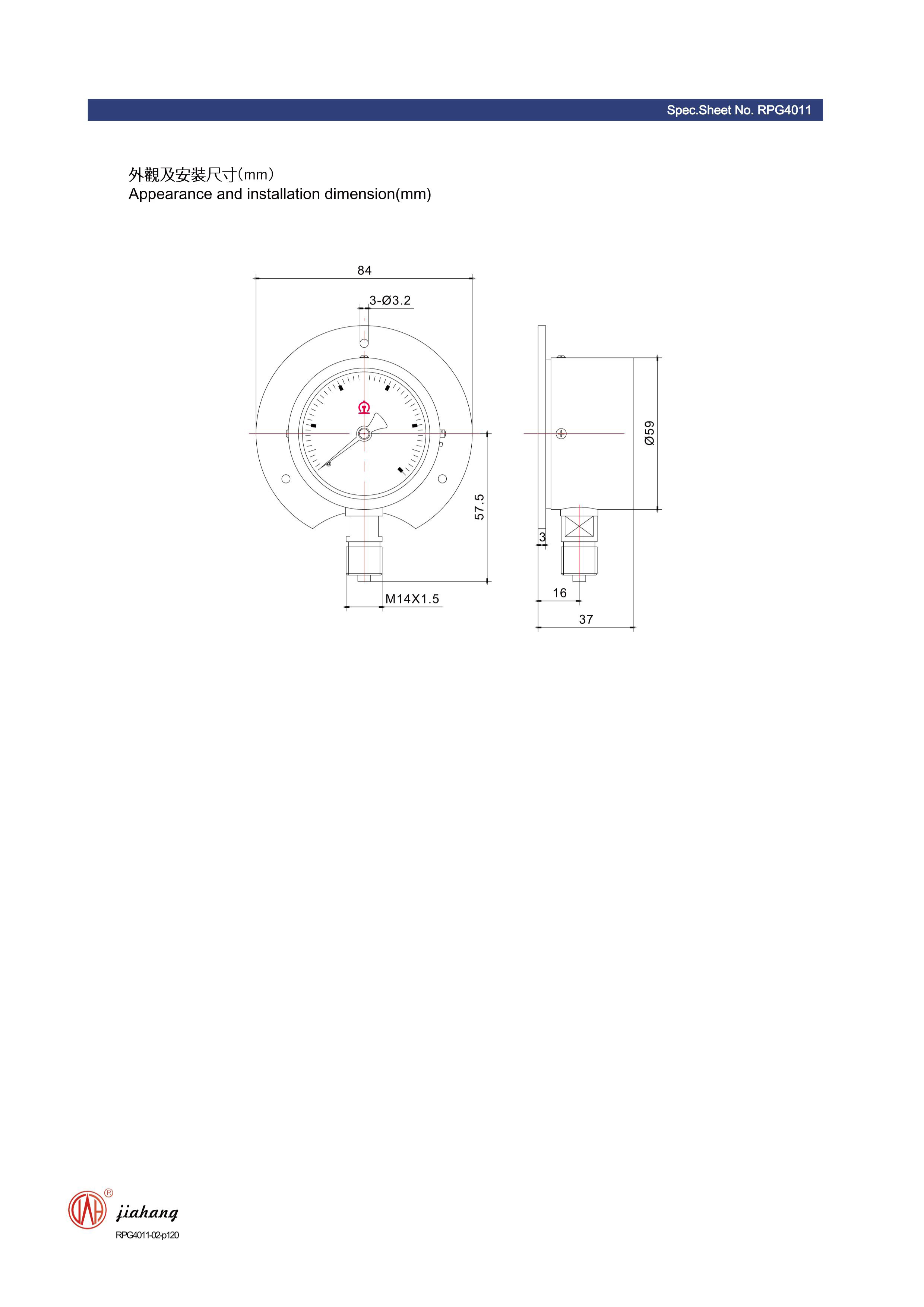

M14X1.5; 1/4" NPT ; G1/4"
(available upon request)

Fitting
Lower Mount (L)

Measuring Element
Bourdon tube : QSn4-0.3
Movement : Copper alloy

Dial
Aluminum (black)

Pointer
Aluminum (White)

Case
Cast aluminum

Bayonet Ring
Carbon steel (electroplate)

Washer
ABS

Window
Stalinite
