railway pressure gauge - Single pointer, single tube typeY-60Z

●Full safety pattern conforms to En837

●Composition: pressure measuring system, transmission mechanism, indicating device and housing

●Pressure measurement : Elastic components are treated by special technology, stable and reliable performance, accurate precision

●It is mainly used to measure the pressure in the hydraulic system or the cylinder in the locomotive and vehicle,It can also measure the pressureof various media in which copper alloy and tinlead alloy brazing materials are non-corrosive, non-crystalline and non-solidifying.

CONTACT NOW down load to pdf

Details

Tags

PRODUCT SPECIFICATION

Model

Y-60Z

Nominal Diameter (mm)
60

Pressure Range
Item No：40014--- 0~1000/1200/1600KPa

Displacement (mm)
1.1~1.4

Accuracy (%)
1.6

Load Capacity
Static Load ≤ Full Scale
Fluctuating Load ≤ 90% Full Scale
Overload Safety Value ≤ 125% Full Scale

Working Environment
Ambient Temperature -10°C ~55°C
Relative humidity 45%-75%

Temperature Influence
Accuracy at temperature above and below the reference temperature (20°C) will be effected by approximately ±0.4% per 10°C of full scale

STANDARD CONFIGURATION

Connection
Brass ,
M14X1.5
(available upon request)

Fitting
Center Back Mount (C)

Measuring Element
Bourdon tube: QSn4-0.3
Movement: copper alloy

Dial
Aluminum, (white)

Pointer
Aluminum, (black)

Case
Cast aluminum

Bayonet Ring
Carbon steel (electroplate)

Washer
ABS

Window
Stalinite

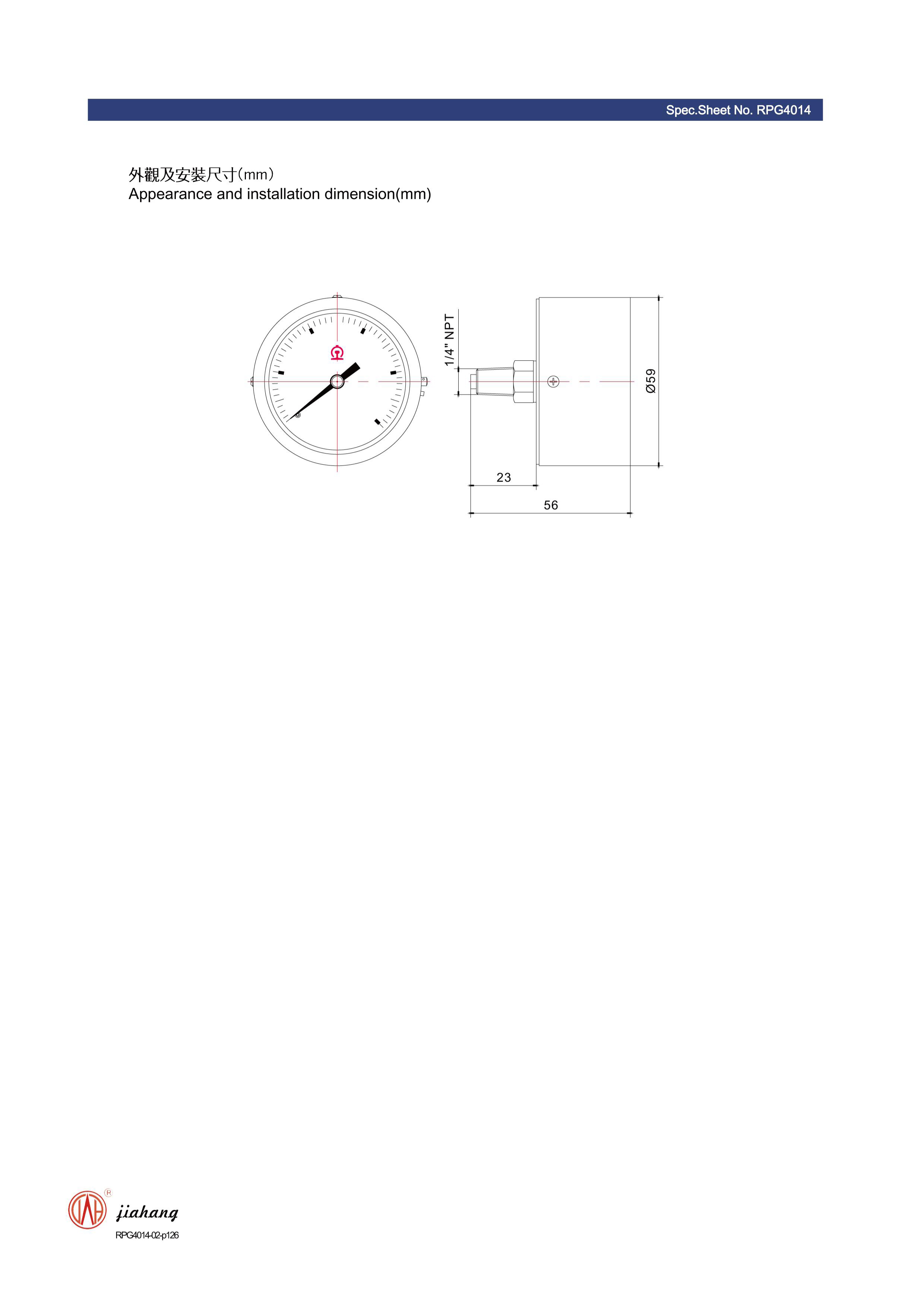

PICTURE DETAILS
